3. Ensure that the correct frequency table ID appears in the Frequency Table ID
field. This must be identical for all BSRs at the Base Station.
4. In the Synchronization Ring Phase field, enter the index of the frequency on
which the BSR starts transmitting when a synchronization pulse is received from
the BSDU. This must be unique for each BSR that is connected to the BSDU(s).
5. From the Hop Length drop-down list, select the time data is "hopped" from one
frequency to the next:
Regular Hop Length: ± 50 msec
Short Hop Length: 25 msec.
6. Click Apply.

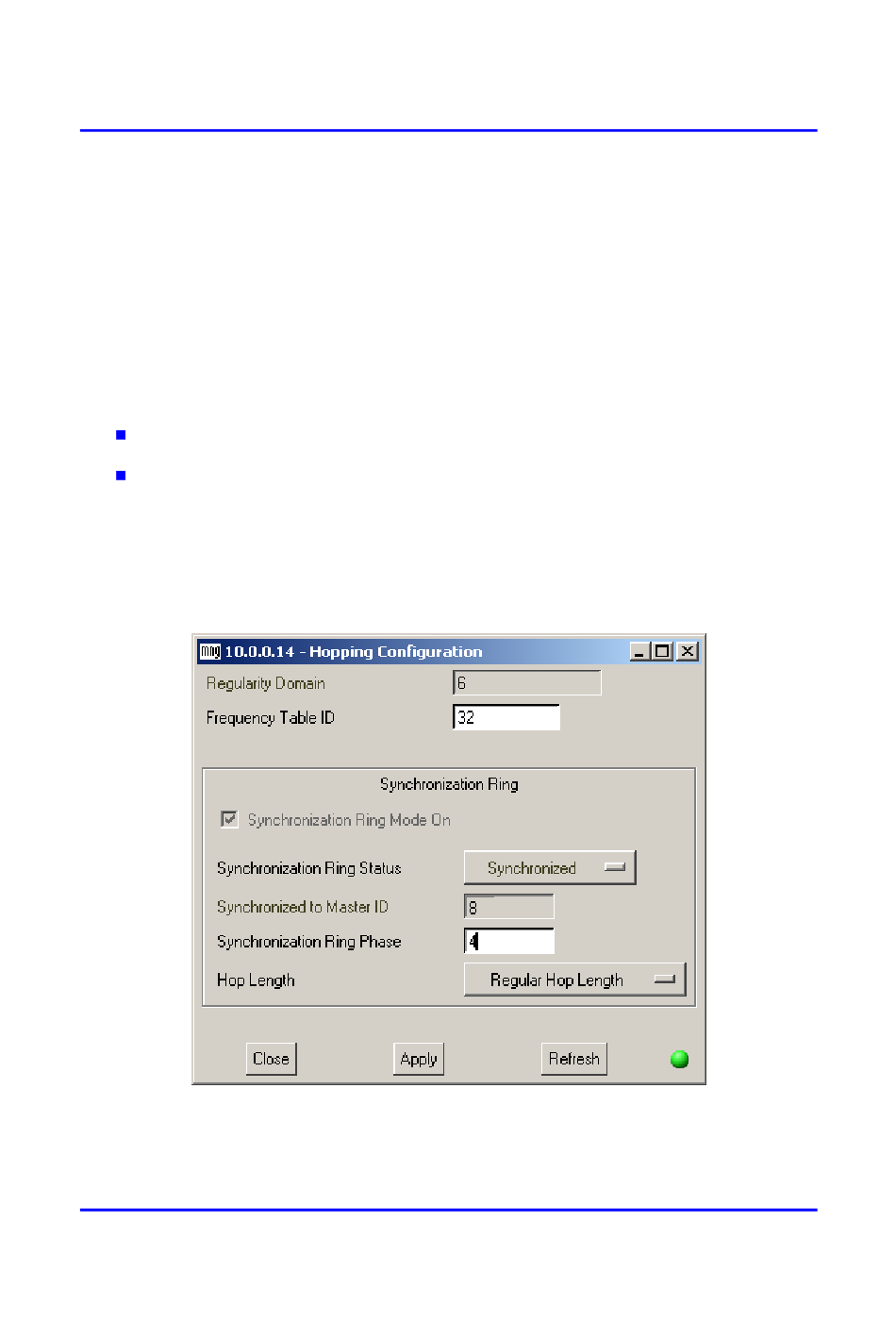

7. Perform Steps 1 through 6 for BSR 10.0.0.14. The Hopping Configuration
dialog box for BSR 10.0.0.14 is displayed below, showing its Synchronization
Ring Phase field value defined as 4:
Figure 21-13: Enabling synchronization for BSR 10.0.0.14 (phase = 4)
