8. In the Eth Subnet Mask field, enter the PPR's subnet mask address (e.g.
255.255.255.240).
9. Configuration group, in the BSR Air MAC Address, enter the PPR's
In the RF
Air MAC, e.g. 0x1200. Valid ranges are from 0x0000 to 0xFFFF.
10. To define a point-to-point radio link with an SPR, click the PPR Configuration
button. The PPR Configuration dialog box appears, as displayed below.
Notes:
1) The PPR Configuration button only appears in WipConfig if the device to
which WipConfig connects is a PPR.
2) The SPR Index field is read-only. WipConfig automatically calculates the
SPR index number by using an algorithm based on PPR's Air MAC address
(e.g. 0x1200 results in SPR index #126).
a. In the IP Address field, enter the SPR's IP address (e.g. 10.0.0.20) with
which the PPR will create a point-to-point radio link.
b. In the Subnet Mask field, enter the subnet mask address of the SPR (e.g.
255.255.255.240) with which the PPR will create a point-to-point radio link.
c. Click Accept.
11. On the toolbar, click the Write
01040311-07
C o n f i g u r i n g a P o i n t - t o - P o i n t R a d i o L i n k

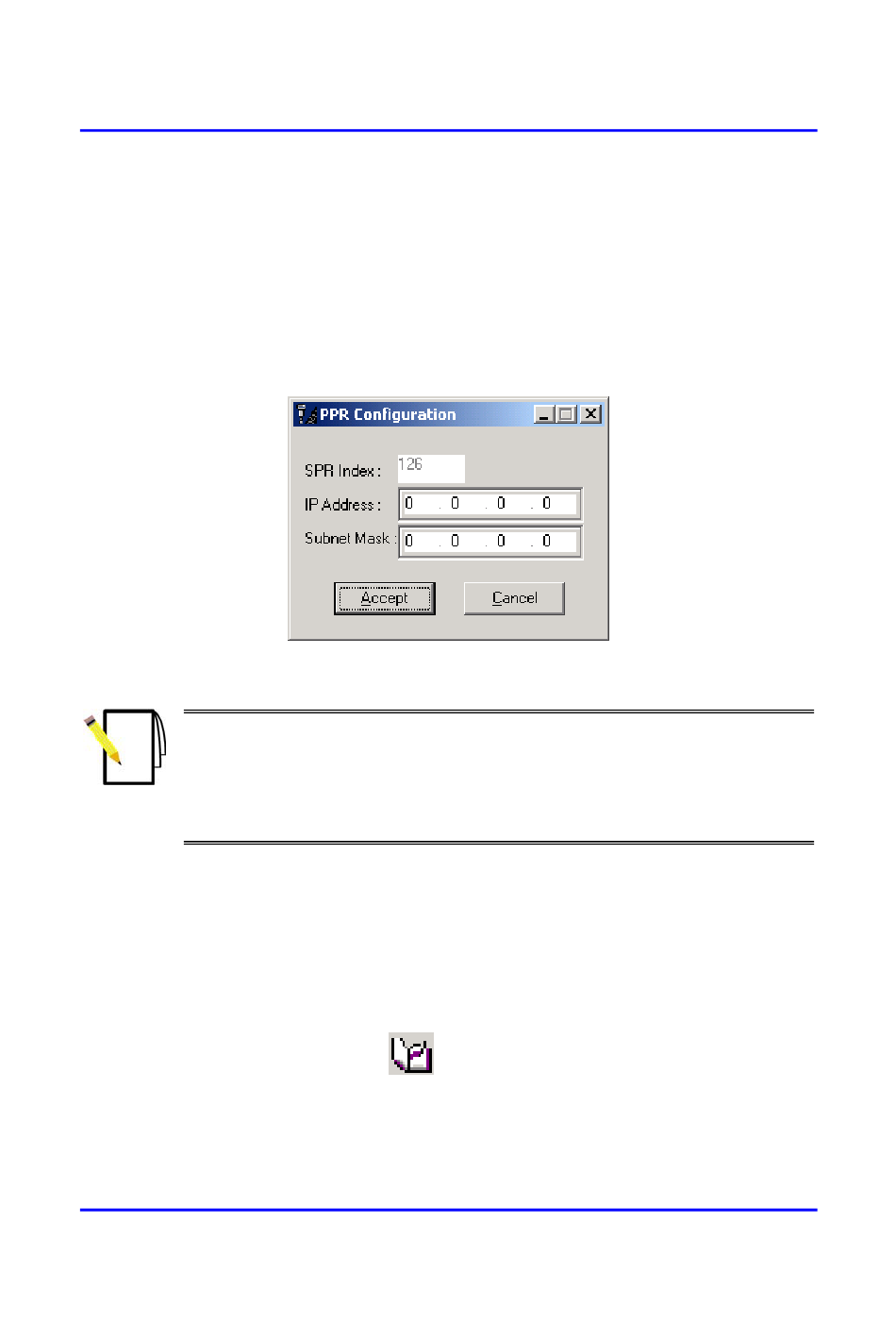

Figure 9-7: PPR Configuration dialog box
button.
Airspan Networks Inc. 9-9
