D e f i n i n g Ai r S u b n e t s
5. In the Air Subnet group, perform the following to define the Air subnet
addressing scheme as Economical:
a. From the New Scheme drop-down list, select Economical.
b. In the New Base field, enter only the network ID address, e.g. 172.16.0.0.
6. In the Network Configuration group, enter the following fields:
Eth IP Address: change the BSR's IP address to 192.168.1.1
Eth Subnet Mask: change the BSR's subnet address to 255.255.255.0
7. In the RF Configuration group, enter the following fields:
Air MAC Address: BSR's Air MAC address (valid ranges is between
0x0000 through 0xFFFF), e.g. 0x1200.
Frequency Table ID: frequency table ID used by the BSR (valid range is 0
through 63), e.g. 1.
8. On the toolbar, click the Write
device.
WipConfig applies the new settings to the BSR.
9. On the toolbar, click the Reset
A Warning message box appears, requesting you to confirm device reset.

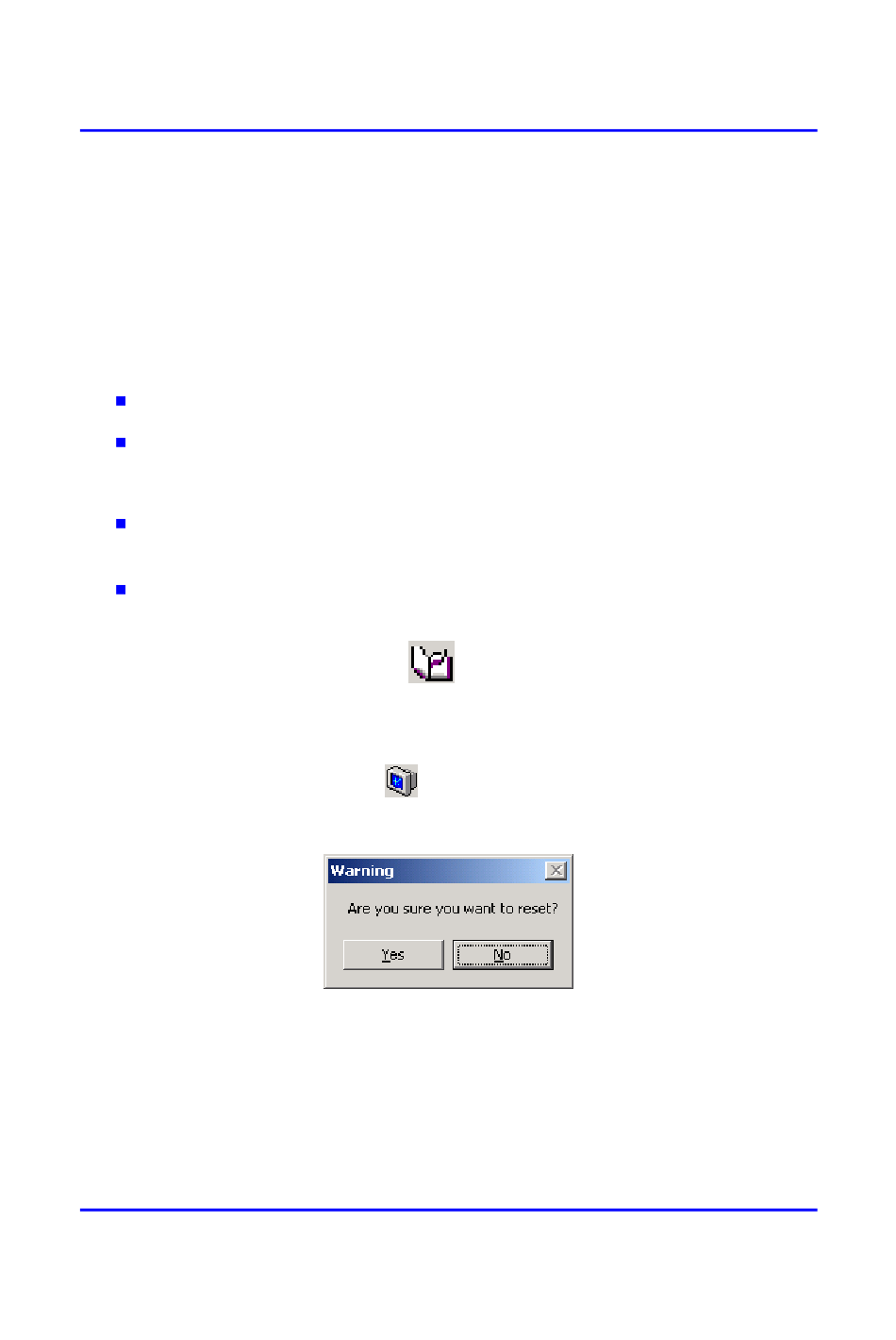

Figure 15-6: Warning message box for resetting BSR
10. Click Yes to reset the device.
WipConfig losses connection with the BSR due to the BSR's new IP address.
