E va l u a t i n g L i n k Q u a l i t y

28.2.2. Measuring RSSI at BSR using WipManage

The RSSI measurements at the BSR are typically performed using WipManage.
Note: For RSSI measurement at the BSR, traffic flow needs to exists between
the BSR and SPR. For generating traffic, see Section 28.5, "Generating Traffic
to Measure Throughput".
To measure RSSI at BSR using WipManage:
1. Open the BSR Zoom window pertaining to the BSR whose RSSI you want to
measure.
2. From the Performance menu, point to Air, point to Cell, and then choose RSSI
per SPR. The RSSI Per SPR dialog box is displayed below.
28-4

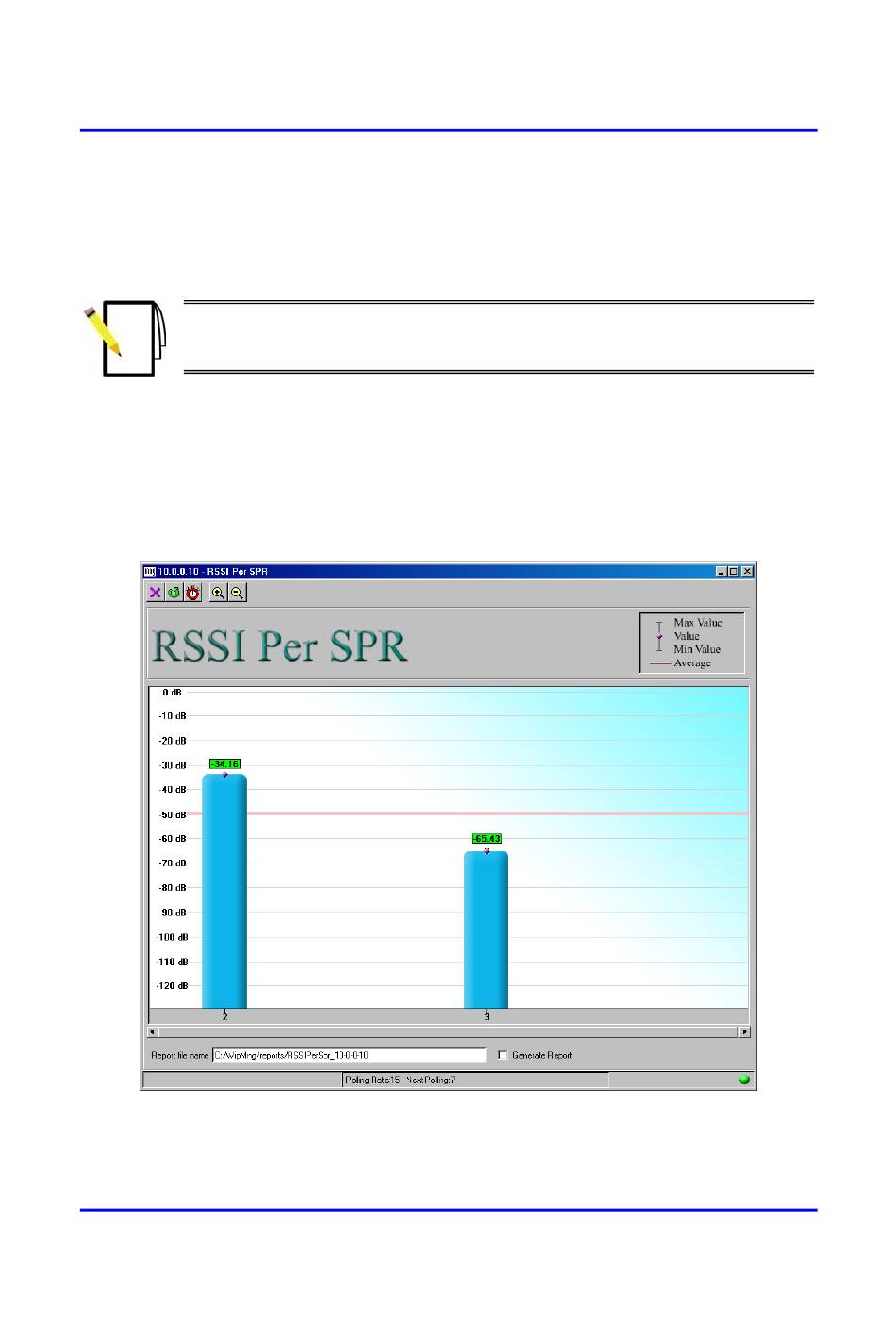

Figure 28-2: RSSI per SPR graph
