23.5.5. Task 4: Add BSR IP Filtering Rules

Now that you have configured the BSR for IP filtering, you need to define the IP
filtering rules (or parameters).
The following procedure describes how to add an IP filter for blocking FTP packets
from any source and to any destination, through port 21.
To add an IP filter for blocking FTP packets:
1. In the BSR Zoom window, from the Configuration menu, point to Network, and
then choose IP Filtering. The IP Filtering dialog box appears.

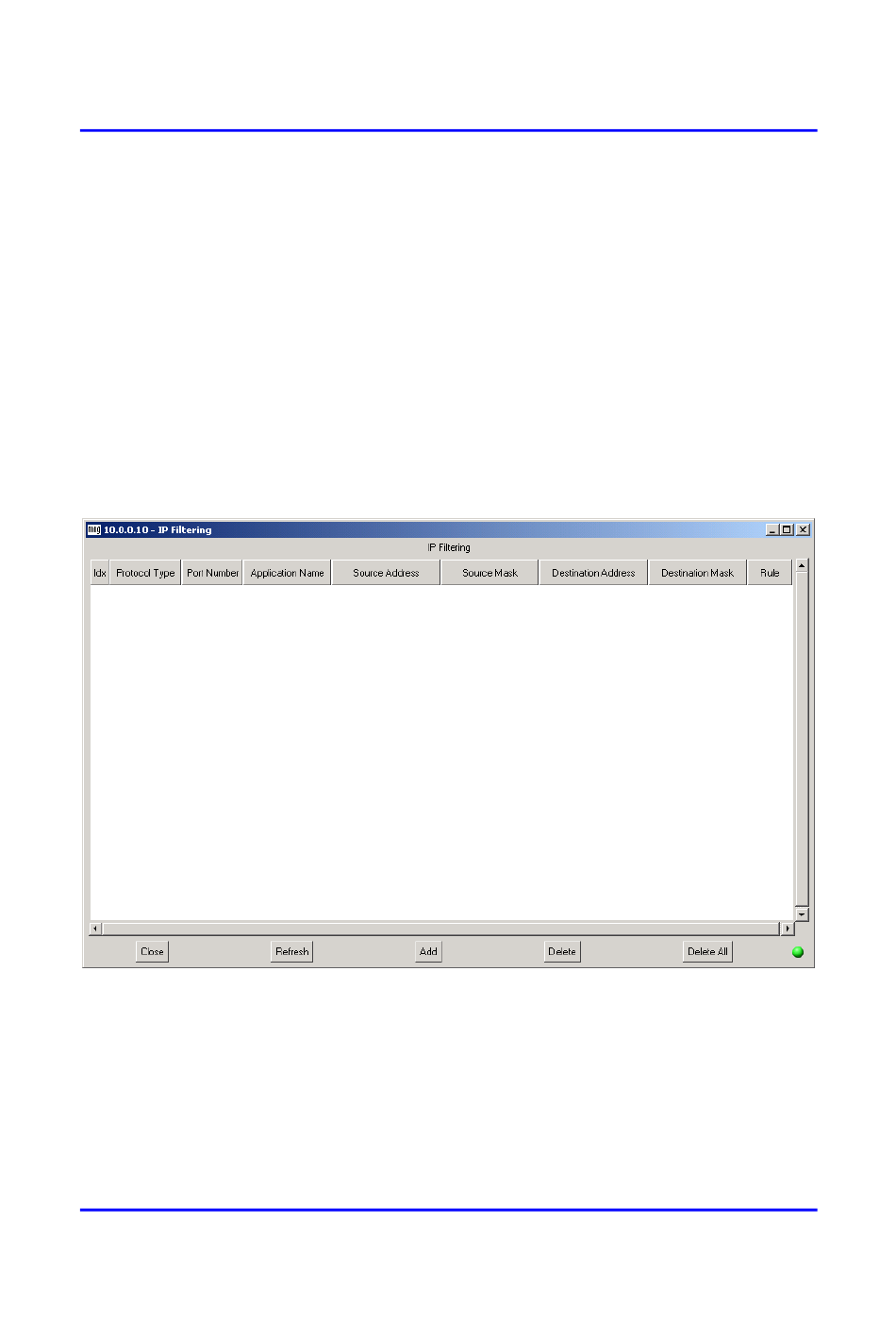

Figure 23-18: IP Filtering dialog box
