CHAPTER 7: OPERATION
7.

TOP-CUT POSITION

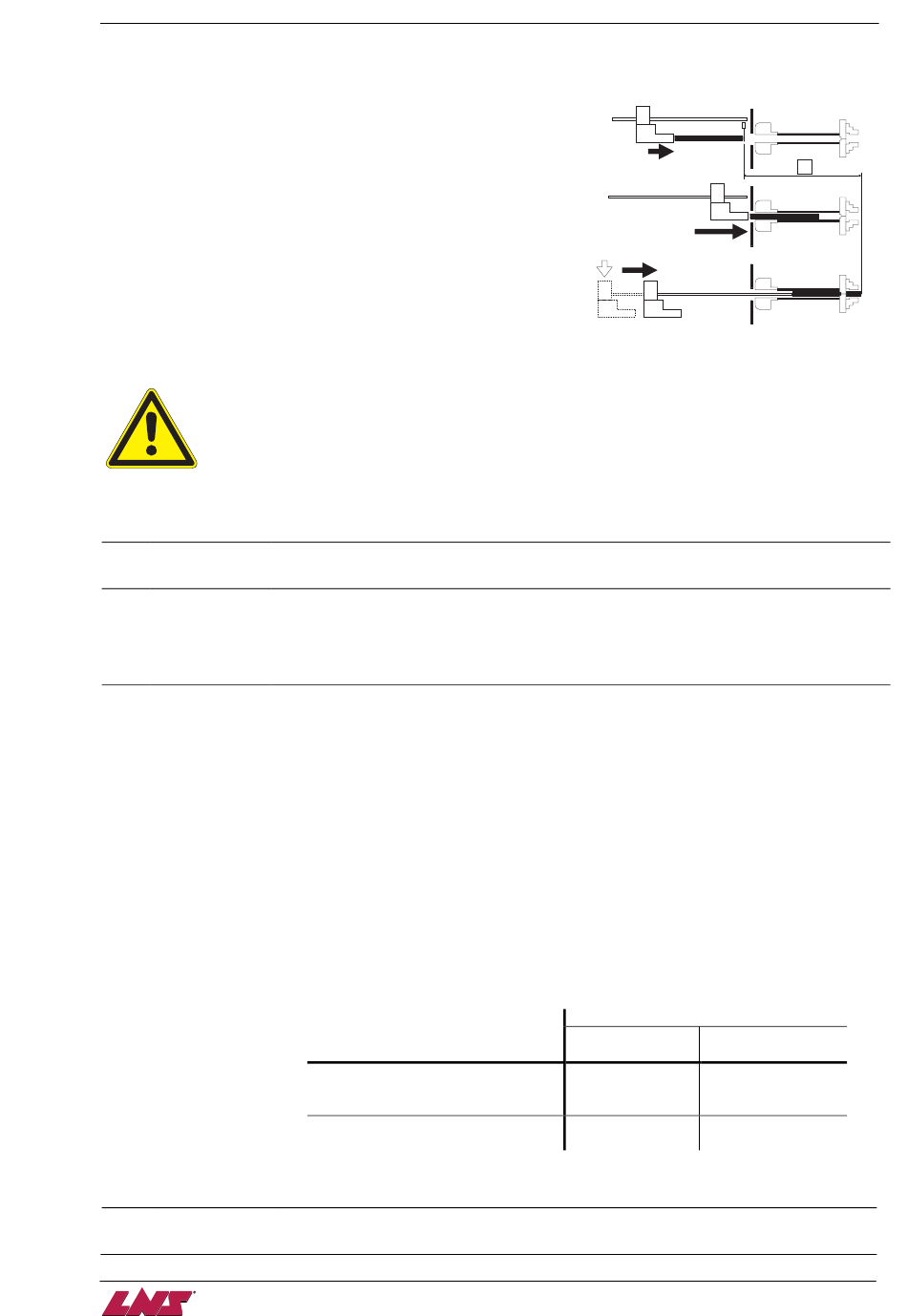

7.1. Description
During the loading cycle, the bar is automatically loaded and
positioned into the spindle, outside the clamping device of the
lathe (chuck or actuator).
This positioning corresponds to a value (Z) programmed by the
operator, which is equal to the distance between the measuring
cell and the position of the material in the lathe clamping device.
With this system, the setting is the same for any bar length.
7.2. Setting
Before handling the bar feeder, stop the lathe at the end of part cycle !
To edit these parameters, the bar feed system must be in STOP mode.
To validate a new parameter or a new value, keep [ENTER] pressed until the icon
disappears.
[STOP]
1
[MENU]
2
[PAGE DOWN
3
[ENTER]
4
[PAGE DOWN]
[SET]
5
[+/-]
6
Press the key [STOP].
Press the key [MENU].
The remote command displays the following text : "PARMETERS RELATED
TO".
Press twice the key attributed to the icon [PAGE DOWN].
The remote command displays the following text : "PARAMETERS RELATED
TO POSITIONING".
Press the key attributed to the icon [ENTER].
The remote command displays the following text : "END OF BAR POSITION".
Press once the key attributed to the icon [PAGE DOWN].
The remote command displays the following text : "TOP CUT POSTION".
Press the key attributed to the icon [SET].
Depending on which sequence the bar feed is in when the parameter is
selected, the available functions and icons can change :
Conditions
Loading channel down
-
No bar stock in the loading
-
channel
Loading with extended loading
-
pusher
Setting by offset correction:
Setting by teach in:
[+/-] By offset correction:
Functions
By offset
By teaching
correction
Icon [+/-] Icon [TEACH IN]
Icon [+/-] ---
jump to point 6
jump to point 7
QUICK LOAD SERVO III MI
7-35
