7-22 CHAPTER 7: OPERATION

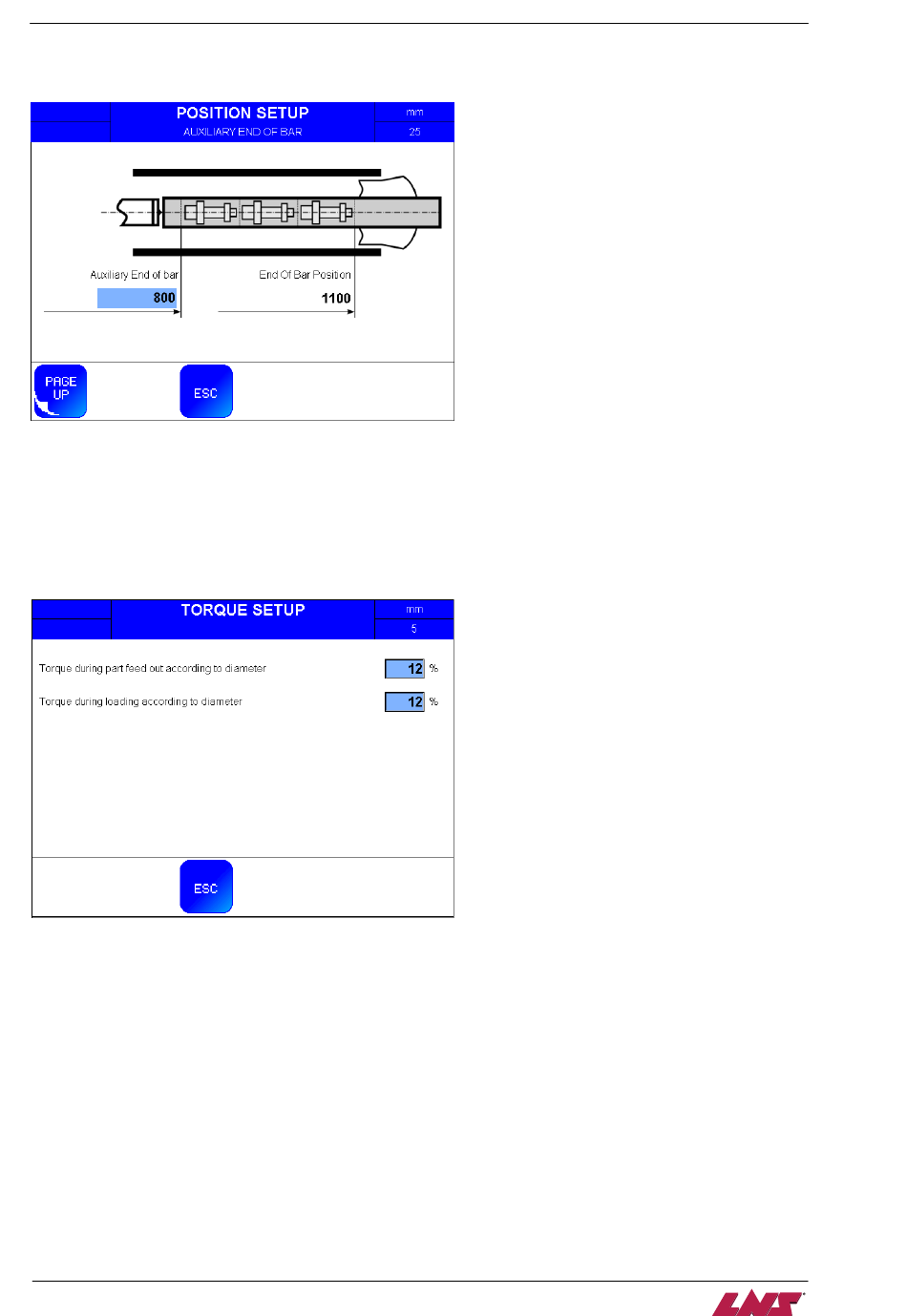

Auxiliary end of bar position (may be not visible)
Depending on the lathe and its options, the auxiliary end of bar may be used in several ways, for example
for the opening of an external rest. The procedure is the same as this for the end of bar setting.
4.2.4. Torques
Pusher torque rate during part feed out and according to bar stock diameter (%)
Depending on the diameter of the bar, the bar feed system will automatically select an appropriate
pushing torque and speed. The operator may modify this selection if necessary. When the material to be
loaded has a high specific weight, the torque must be significant. The contrary applies if the specific
weight of the bars is low.
Torque rate during loading according to bar diameter (%)
Same principle as for the couple fast forward, applied this time to loading.
