7-16 CHAPTER 7: OPERATION

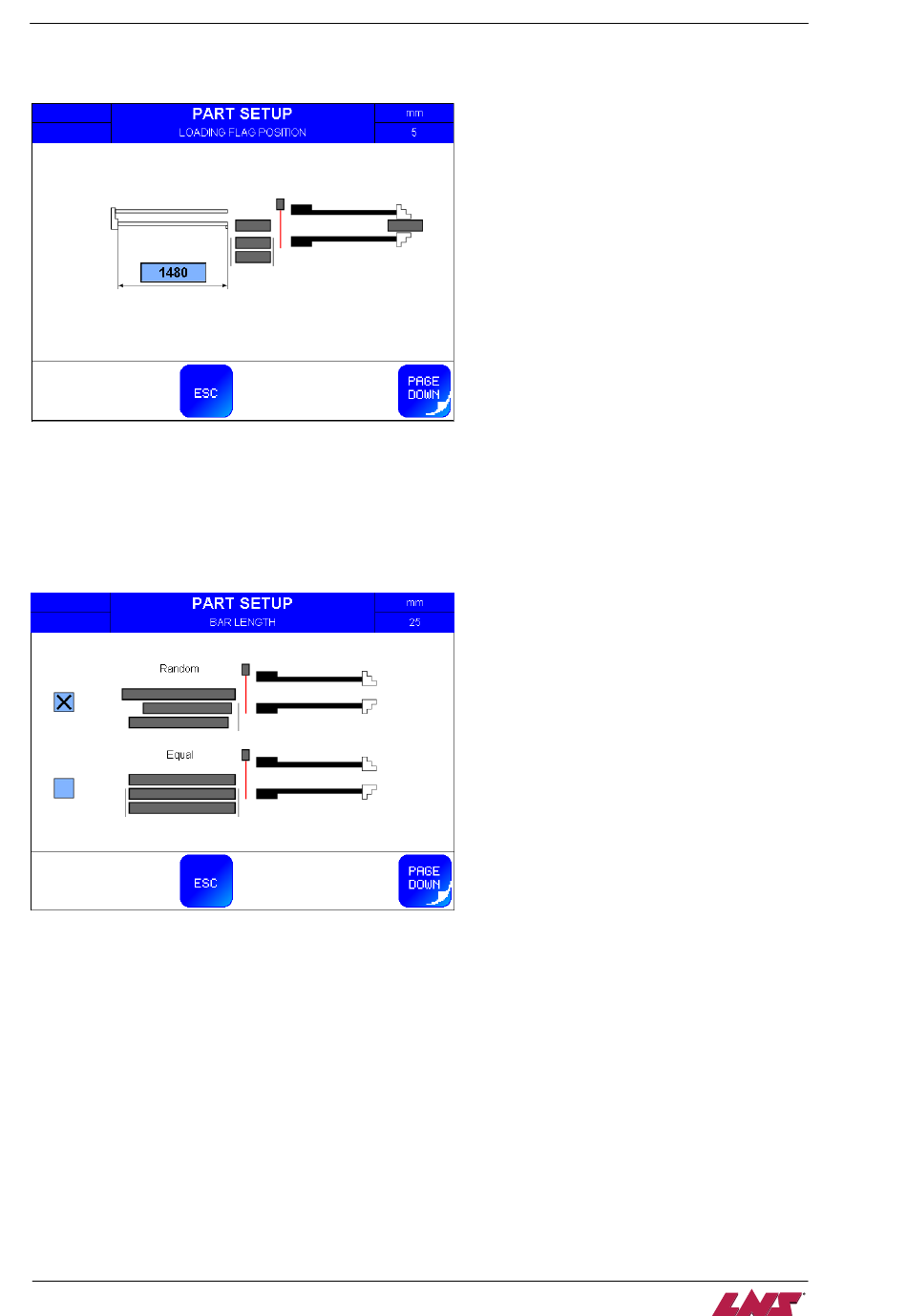

Loading flag position (may be not visible)
This parameter allows to define the length of a specific loading pusher, and is used in shaft loading
applications.
Bar length variable or constant (may be not visible)
This parameter allows to specify the accuracy of the bar lengths. If accurate enough, when the bar length
is set on "constant", the bar feeder will only measure the first bar length, and use the same value for all
the next bar stocks, to speed up the loading process. This parameter should only be used with a physical
limiter on the loading magazine to avoid the loading of longer bars, which could lead to damages on the
lathe.
