4-4

ELECTRICAL CABINET

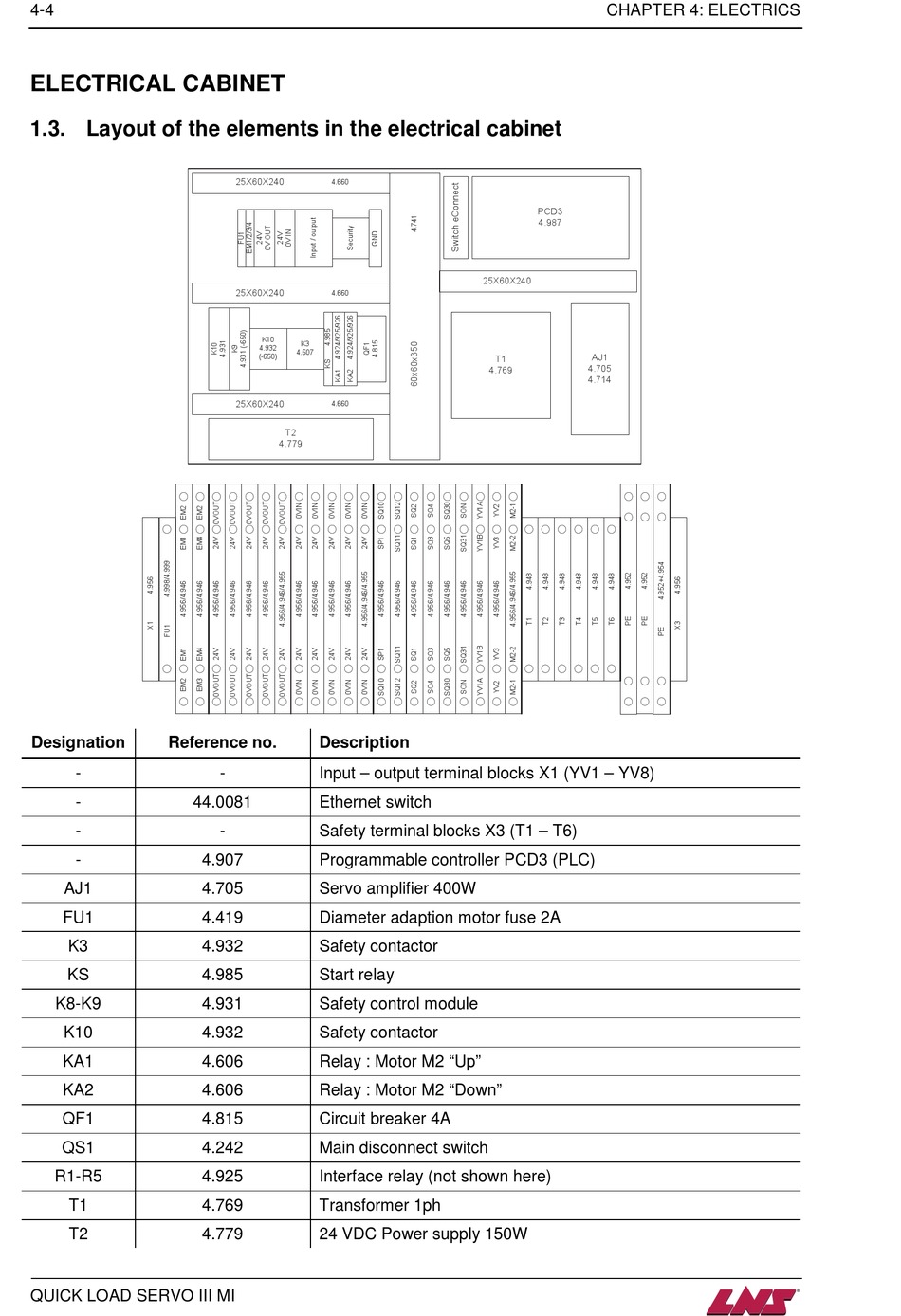

1.3. Layout of the elements in the electrical cabinet
Designation Reference no.
-
- 44.0081
-
-
AJ1
FU1
K3
KS
K8-K9
K10
KA1
KA2
QF1
QS1
R1-R5
T1
T2
QUICK LOAD SERVO III MI
! "!
"# !
! "!
"# !
7&!
7
"#'
"# !%
8 !
! "! "# !
+
"#%%'
Description
- Input – output terminal blocks X1 (YV1 – YV8)
Ethernet switch
- Safety terminal blocks X3 (T1 – T6)
4.907 Programmable controller PCD3 (PLC)
4.705 Servo amplifier 400W
4.419 Diameter adaption motor fuse 2A
4.932 Safety contactor
4.985 Start relay
4.931 Safety control module
4.932 Safety contactor
4.606 Relay : Motor M2 "Up"
4.606 Relay : Motor M2 "Down"
4.815 Circuit breaker 4A
4.242 Main disconnect switch
4.925 Interface relay (not shown here)
4.769 Transformer 1ph
4.779 24 VDC Power supply 150W
CHAPTER 4: ELECTRICS
"#'(%
! "!
,-&
+&
"#%!
"#% '
"#%&"
