BAR MAGAZINE

Please read the safety precautions described at the beginning of this manual before
handling the following devices.
1.1. Description
Placed to the side of the Quick Load Servo III MI bar feed system, the loading magazine, 1,000 mm deep,
can receive bars of various lengths, between 300 mm and 1,300 mm.
To facilitate the moving of the bars on the magazine table, the latter is equipped with a grate on which the
bars are placed. If, however, certain bars (i.e.
profiled bars) cannot slide, the slope can be
increased via an axle located under the table.
If, on the other hand, bars with small
diameters overlap, then the slope can or must
be reduced.
A protection grid impedes access to the
loading table during the automatic cycle. In
manual mode, the grid, mounted onto hinges,
can be lifted, and thus allows the operator to
conduct the necessary
operations.

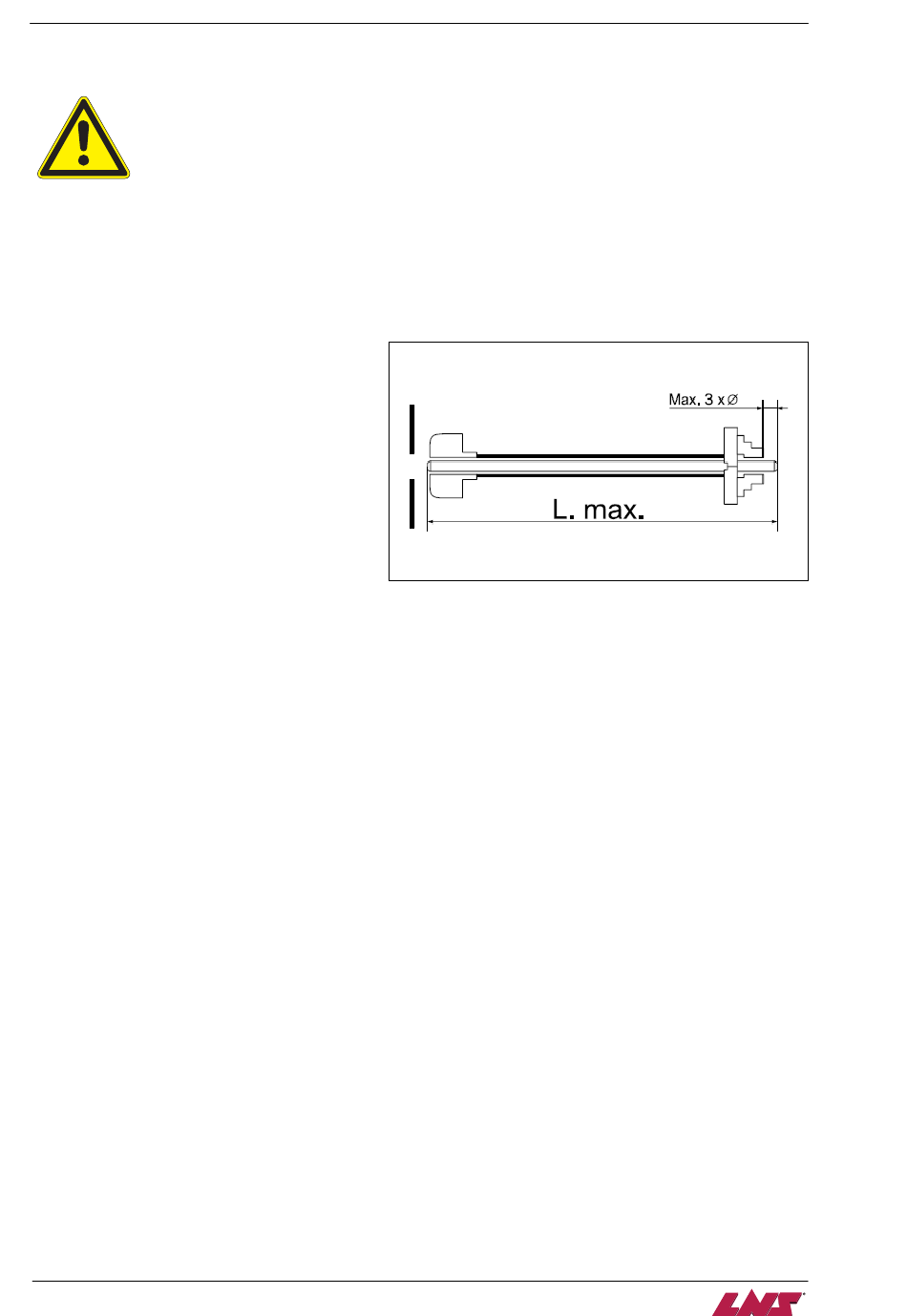

In no case should a rotating bar extend past the rear of the lathe spindle. The lathe spindle gives the
maximum length the bar feed system can load. The bar may not extend more than three times its
diameter beyond the front of the lathe clamping device without support. A limiter makes it possible to set
the maximum bar length on the table.
When they are on the loading table, stopping fingers laid out on an axle holds the bars.
The position of the fingers is set automatically when the loading diameter is entered into the
bar feed system parameters.
