3-2
1.

TRANSPORTATION

Please read the safety precautions described at the beginning of this manual before
handling the following devices.
1.1. Description
Depending on its destination, the Quick Load Servo III MI bar feed system may be delivered either on a
pallet, or packed in a wooden crate. When sea or air transports it, the second solution is recommended.
Weight
Width
Length
Height
1.2. Unpacking
For practical and safety reasons, the bar feed system must be unpacked in a spacious, well-lit location.
Check to see that the lifting capacity of the hoisting crane, or lift truck, is adequate before
proceeding with the handling of the merchandise. No one should be near the hanging load,
or within the operating range of the overhead hoist/crane, forklift, or any other means used
for lifting and transportation.

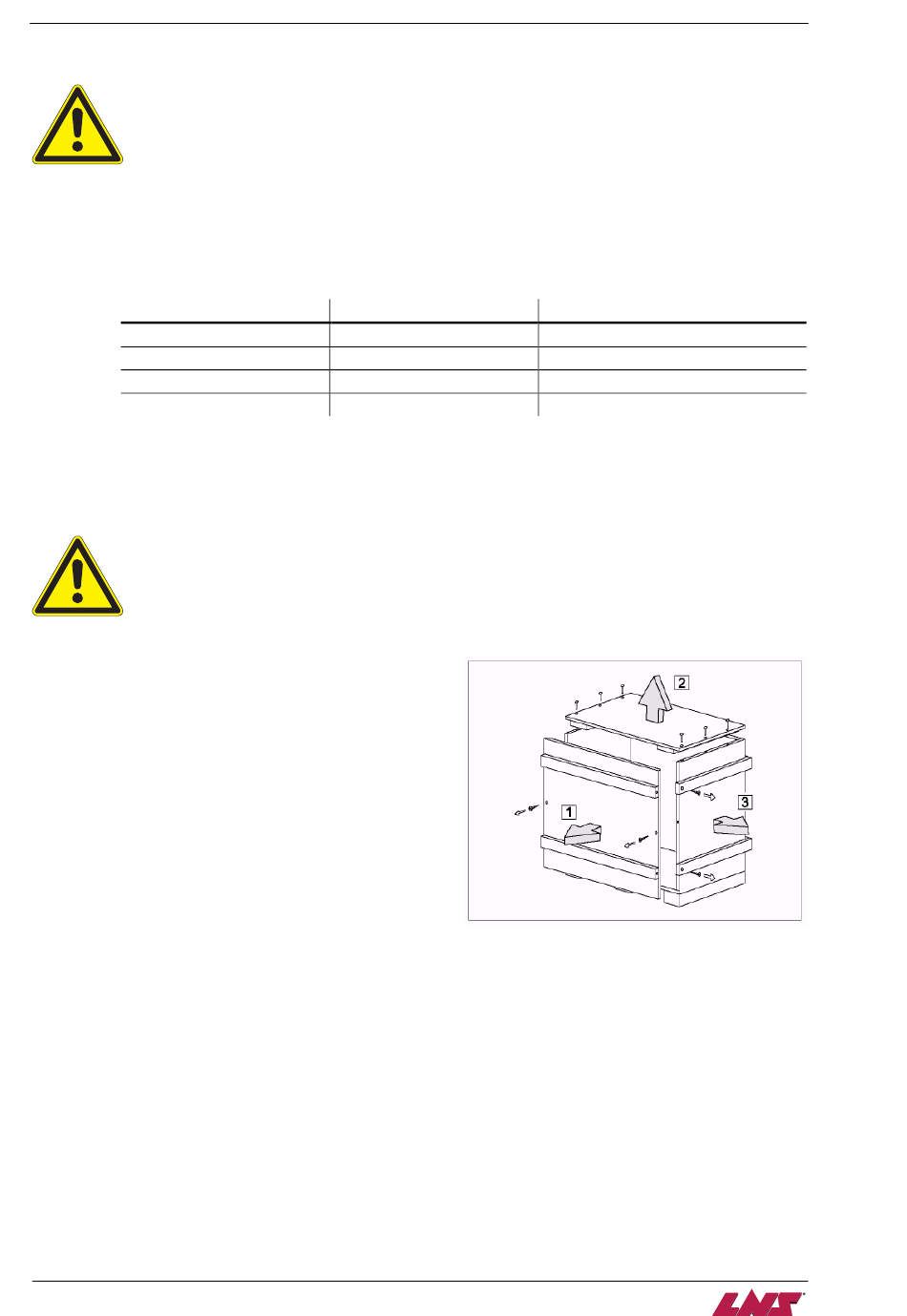

1) If the bar feed system is received in a crate, start
by unscrewing the front panel.
2) Remove the top.
3) Remove the side-walls.
From this point on, the bar feed system is unpacked in
the same way as when delivered on a pallet.
QUICK LOAD SERVO III MI
CHAPTER 3: SETTING INTO OPERATION
Crate
820 Kg
1150 mm
2750mm
1800 mm According to the centerline height
Pallet
640 Kg
1150 mm
2250 mm
