START UP MANUAL
2.2

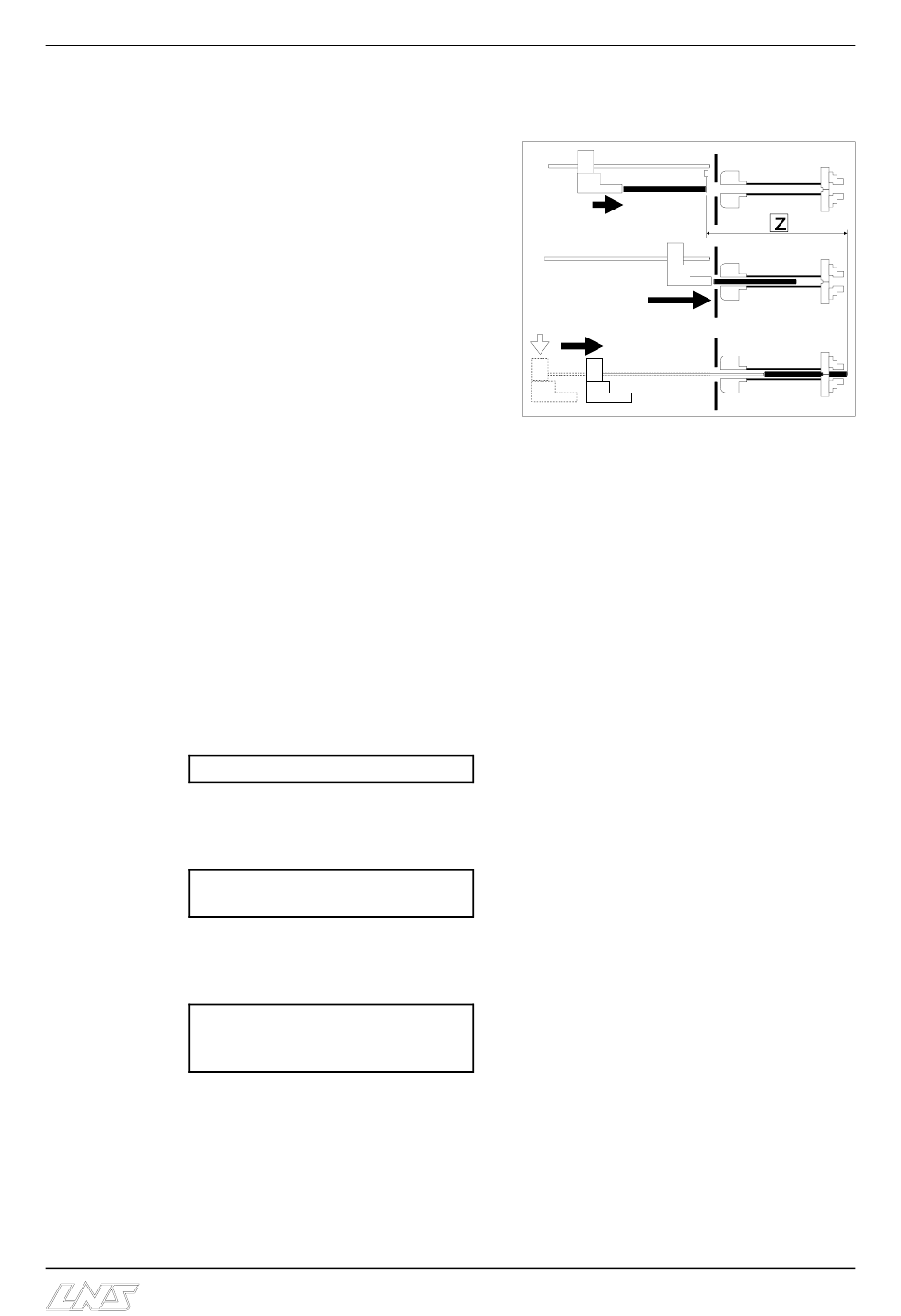

During the loading cycle, the bar is
automatically loaded and positioned
into the spindle, outside the clamping
device of the lathe (chuck or actuator).
This positioning corresponds to a
value (Z) programmed by the
operator, which is equal to the
distance between the measuring cell
and the position of the material in the
lathe clamping device.
With this system, the setting is the same for any bar length.
Top cut position setting :
Important : Before handling the barfeeder, stop the lathe at the end of part
1.
2.
3.
4.
5.

Top-cut position

cycle.
Press the key [STOP].
Press the key [MENU].
The display reads :
MAIN MENU
Press twice the key attributed to the icon [PAGE DOWN].
The display reads :
END OF BAR POSITION
****MM
Press the key [PAGE DOWN].
The display reads :
POSITION OF THE CUT OFF
(TOP CUT) **** MM
Press the key attributed to the [SET].
Depending on which sequence the bar feed is in when the parameter is selected,
the available functions and icons can change:
QUICK LOAD SERVO S2
5
