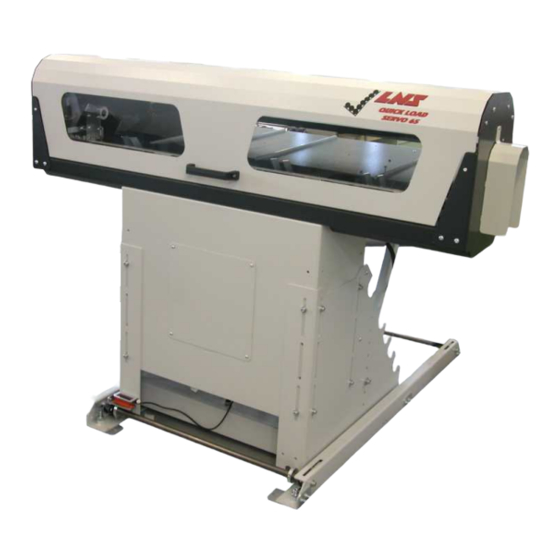

  • Page 1 Troubleshooting manual 9.020.01.ANG...

  • Page 2: Table Of Contents

    Measuring Cell Adjustment – SQ3 .................... 3-12 Pusher Reversing Distance ....................... 3-14 Reference Procedure........................3-15 Calibration of the Loading Table ....................3-17 Chapter 4:..................4-1 Software..........................4-1 Software / PLC Versions ......................4-2 Software Update ........................... 4-3 Battery Replacement ........................4-5 QUICK LOAD SERVO 65/80...
  • Page 3 Chapter 6: ..................6-1 Spare Parts ........................6-1 Recommended Spare Parts List ....................6-2 Mechanical Assemblies........................6-3 Base .............................6-11 Crossing Slide..........................6-20 Loading Mechanism ........................6-23 Protections ..........................6-33 Foot ..............................6-35 Loading Magazine........................6-37 Retraction ............................6-42 Pusher............................6-45 Accessories & Options.......................6-51 Floor Plans ..........................6-53 QUICK LOAD SERVO 65/80...

  • Page 4: Alarms

    Also provided are some possible causes as to why the error has occurred. This chapter: • discusses every alarm that the bar feed may generate, • explains the possible causes, • suggests a few tips and procedures of how to correct the problem. QUICK LOAD SERVO 65/80...

  • Page 5: Switches And Cells List

    Proximity switch, diameter selection fingers in origin position SQ 5 4.391 Pusher in home position switch SQ 10 4.763 Cover closed safety switch SQ 11 4.763 Magazine cover closed safety switch SQ 12 4.763 Retraction system safety switch QUICK LOAD SERVO 65/80...

  • Page 6: A01 - Emergency Stop Line Open

    Check the wiring according to the electrical diagram. • Press the STOP button on the remote control to reset the alarm. K1 = 1 Press the STOP button on the remote control to reset the alarm. QUICK LOAD SERVO 65/80...

  • Page 7: A02 - Main Access Cover Open

    Down until the INPUTS page is displayed: Case Input Solution • Close the cover. SQ10 = 0 • Check the SQ10 switch is adjusted correctly. SQ10 = 1 Press the STOP button on the remote control to reset the alarm. QUICK LOAD SERVO 65/80...

  • Page 8: A03 - Magazine Protection Grid Open

    Down until the INPUTS page is displayed: Case Input Solution • Close the protection grid. SQ11 = 0 • Check that the SQ11 switch is adjusted correctly. SQ11 = 1 Press the STOP button on the remote control to reset the alarm. QUICK LOAD SERVO 65/80...

  • Page 9: A04 - Bar Feeder Retracted Or Not Locked In Its Working Position

    Down until the INPUTS page is displayed: Case Input Solution SQ12 = 0 Set the bar feeder back in operating position and lock it. SQ12 = 1 Press the STOP button on the remote control to reset the alarm. QUICK LOAD SERVO 65/80...

  • Page 10: A11 - Measuring Cell Sq3 Signal Defective

    • Remove any obstacle in the detecting range of the switch. SQ3 = 1 • Check that the SQ3 switch adjustment. SQ3 = 0 Press the STOP button on the remote control to reset the alarm. QUICK LOAD SERVO 65/80...

  • Page 11: A12 - Home Position Proximity Switch Sq5 Signal Missing

    Press the STOP button on the remote control to reset the alarm. • Check that the SQ5 switch is adjusted correctly. • Check the belt tension. SQ5 = 0 • Reference back the origin points (home position). QUICK LOAD SERVO 65/80...

  • Page 12: A15 - Safety Time For Loading Channel Up And Down Motion Elapsed

    SQ1 = 1 Press the STOP button on the remote control to reset the alarm. • Check the SQ1 switch. SQ1 = 0 • Check that the table can move up and down without obstacle or resistance. QUICK LOAD SERVO 65/80...

  • Page 13: A16 - Safety Time For Diameter Adjustment Elapsed

    SQ4 = 1 Press the STOP button on the remote control to reset the alarm. • Check the SQ4 switch. • Check that the diameter adjustment fingers can move without any obstacle or SQ4 = 0 resistance. QUICK LOAD SERVO 65/80...

  • Page 14: A21 - Measuring Cell Sq3 Activated Too Early

    Press the key corresponding to PAGE DOWN as many times as necessary to display the text "MAXIMUM BAR STOCK LENGTH". Note: This value cannot exceed the spindle length. If necessary, correct this value. Measure the bar stock. This bar length cannot exceed the value entered in the remote control. QUICK LOAD SERVO 65/80...

  • Page 15: A22 - Signal A2 "Lathe In Automatic Mode" Interrupted During Loading Cycle

    The « Signal A2 "lathe in automatic mode" interrupted during loading cycle » alarm is generated if the signal (I41 – A2) is interrupted in the loading cycle. Solution: Verify the lathe/bar feeder connection. Verify the wiring of the signal A2. Check the lathe programming. QUICK LOAD SERVO 65/80...

  • Page 16: A23 - Safety Time For Loading Profiled Bar Elapsed

    Press the STOP key on the remote control to clear the message and reset the alarm. Remove the bar out of the spindle. Start the top-cut cycle again. If the problem persists, please contact LNS AMERICA, INC.. QUICK LOAD SERVO 65/80...

  • Page 17: A24 - Safety Time For Top-Cut Positioning Elapsed

    The « safety time for top-cut positioning elapsed » alarm when the bar stock is in loading cycle for top cut, if the top cut position is not reached within 5 minutes. Solution: Press the STOP button on the remote control to reset the alarm. Restart the automatic cycle on bar feeder and lathe. QUICK LOAD SERVO 65/80...

  • Page 18: A25 - Lathe Did Not Resume Its Production Cycle

    (I40 – A1) within the minute following the reach of the top cut positioning. Solution: Press the STOP button on the remote control to reset the alarm. Restart the automatic cycle on bar feeder and lathe. QUICK LOAD SERVO 65/80...

  • Page 19: A26 - Clamping Device Closed Prior To Completing The Feed Out

    "overall part length feed out" has been reached. Solution: Check that the clamping device is closing correctly. Check that the signal "Clamping device closing" is correctly interfaced and programmed. QUICK LOAD SERVO 65/80...

  • Page 20: A27 - Clamping Device Opened During Production Cycle Without Lathe Auto Mode

    PLC detects the clamping device opening signal (I40 – A1) while the bar feeder in auto cycle and lathe not in auto mode – input (I41 – A2). Solution: Press the STOP button on the remote control to reset the alarm. Restart the automatic cycle on bar feeder and lathe. QUICK LOAD SERVO 65/80...

  • Page 21: A28 - Parts Counting Parity Error By M-Code Quantity And Automatic Part Counting

    « number of clamping device openings » while the input (I43 – A4) is activated. Solution: Press the STOP button on the remote control to reset the alarm. Restart the automatic cycle of the bar feeder and the lathe. QUICK LOAD SERVO 65/80...

  • Page 22: A30 - Bar Stock Loading Error

    PLC detects the input (I25 – SQ3) when the loading finger is at the most advanced position. That means that there is no material on the loading table. Solution: Load new material on the magazine. QUICK LOAD SERVO 65/80...

  • Page 23: A41 - Servo Amplifier / Plc Communication Fault

    PLC and servo amplifier parameters do not correspond. Solution: Verify the PLC/servo amplifier connection (F110). Verify the PLC power supply (24V DC). Power variations may influence the PLC efficiency. If the problem persists, please contact LNS AMERICA, INC.. QUICK LOAD SERVO 65/80...

  • Page 24: A42 - Servo Drive Alarm

    Turn off main power, wait 2 seconds, and restore main power. If the problem persists, find the displayed alarm number on the servo amplifier and refer to the Mitsubishi® servo amplifier alarm list in the manual QUICK LOAD SERVO 65/80...

  • Page 25: A43 - Amplifier Battery Low

    REPLACE BATTERY IMMEDIATELY Description: The « Amplifier battery low » alarm occurs whenever the voltage of the integrated amplifier battery is too low. Solution: Replace the battery as soon as possible (refer to the instruction manual). QUICK LOAD SERVO 65/80...

  • Page 26: A44 - Servo Motor Not Ready

    Verify that the output (O52) is activated when the automatic or manual cycle is started. Verify that the K1 relay is active; the input (I16) must be active. If the problem persists, please contact LNS America, Inc. QUICK LOAD SERVO 65/80...

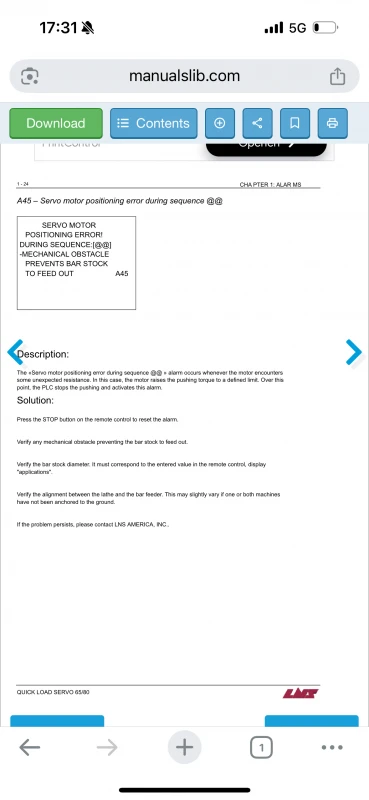

  • Page 27: A45 - Servo Motor Positioning Error During Sequence

    "applications". Verify the alignment between the lathe and the bar feeder. This may slightly vary if one or both machines have not been anchored to the ground. If the problem persists, please contact LNS AMERICA, INC.. QUICK LOAD SERVO 65/80...

  • Page 28: A50 - Servo Amplifier Firmware Not Compatible With Plc

    AMPLIFIER Description: Only an adapted firmware to our servo motor will work. Otherwise, the « Servo amplifier firmware not compatible with PLC » alarm is generated. Solution: Please contact LNS AMERICA, INC. to update your firmware. QUICK LOAD SERVO 65/80...

  • Page 29: Bar Feeder Software Sequence Of Events

    The loading table starts moving down. The pusher moves to the bar stock rear. The pusher moves the bar stock behind the clamping device. The pusher positions the bar stock in top cut position In top cut position. QUICK LOAD SERVO 65/80...

  • Page 30: Mitsubishi Servo Amplifier Alarm List

    When alarm or warning has occurred POINT • Configure up a circuit that will detect the trouble (ALM) signal and turn off the servo-on (SON) signal at occurrence of an alarm. QUICK LOAD SERVO 65/80...
  • Page 31 AL.E6 Servo emergency stop warning AL.E9 Main circuit off warning Note: 1. Deactivate the alarm about 30 minutes of cooling time after removing the cause of occurrence. 2. 0: Pin-SG off (open) 1: Pin-SG on (short) QUICK LOAD SERVO 65/80...
  • Page 32 2. Encoder fault Change the servo motor. amplifier. 3. Encoder cable faulty Repair or change the cable. (wire breakage or short) 4. Wrong combination of servo Use correct combination. amplifier and servo motor QUICK LOAD SERVO 65/80...
  • Page 33 Regenerative 6. Regenerative transistor faulty. transistor fault Checking method 1) The regenerative brake option has overheated abnormally. 2) The alarm occurs even after removal of the built-in regenerative brake resistor or regenerative brake option. QUICK LOAD SERVO 65/80...
  • Page 34 Parameter setting 1. Servo amplifier fault caused the Change the servo amplifier. is wrong. parameter setting to be rewritten. 2. Regenerative brake option not Set parameter No.0 correctly. used with servo amplifier was selected in parameter No.0. QUICK LOAD SERVO 65/80...
  • Page 35 Checking method When the servo motor shaft is rotated with the servo off, the cumulative feedback pulses do not vary in proportion to the rotary angle of the shaft but the indication skips or returns midway. QUICK LOAD SERVO 65/80...
  • Page 36 88888 Watchdog CPU, parts faulty Fault of parts in servo amplifier Change servo amplifier. Checking method Alarm (88888) occurs if power is switched on after disconnection of all cables but the control circuit power supply cables. QUICK LOAD SERVO 65/80...
  • Page 37 External emergency stop was made Ensure safety and emergency stop valid. (EMG-SG opened.) deactivate emergency stop. warning AL.E9 Main circuit off Servo was switched on Switch on main circuit warning with main circuit power power. off. QUICK LOAD SERVO 65/80...

  • Page 38: Chapter 2

    Chapter 2: Common Issues he Quick Load Servo 65 / 80 is designed to be a user-friendly, simple, and reliable bar feeder, covering a range of diameters 6 to 65 / 80, depending on the machine purchased. Although easy to use, including extremely quick changeovers and the capability for unmanned operation this unit is not flawless.

  • Page 39: Vibrations

    Vibrations Description: The term “vibration” is being used regarding the Quick Load Servo 65 / 80, to indicate that the RPM performance of the lathe is physically deteriorated, to the point of creating an unbalanced rotational oscillation of the bar stock, within the confines of the spindle of the lathe that is detrimental to the machining process.

  • Page 40: Servo Motor Following Error During Sequence 9

    "Alignment Procedure" and "Calibration of the Loading Table" Hitting back of clamping system Verify the correct collet/chuck is installed for the material being run. If the problem persists, please contact LNS America, Inc. QUICK LOAD SERVO 65/80...

  • Page 41: Part Feed Out Accuracy

    “Feed with help of the turret” application must be selected. It is recommended by LNS that when feeding without the help of the turret that a dead-length, parallel gripping type clamping device be used. This type of clamping system will prevent the bar stock from moving forward when the clamping device is closed, thus losing the positioning accuracy.
  • Page 42 If using a push-to-close type clamping system ensure the turret is being used to locate the part and that the turret is in the correct location • Verify that the bar stock is concentric and clean of debris QUICK LOAD SERVO 65/80...

  • Page 44: Chapter 3

    CHA PT ER 3 : PR OCEDUR ES 3 - 1 Chapter 3: Procedures he following chapter includes simple step-by-step procedures for mechanical adjustments, replacing damaged or faulty components and to resolve other issues related to the bar feeder. QUICK LOAD SERVO 65/80...

  • Page 45: Alignment Procedure

    Level the bar feed in the x and y axis using a torpedo level. The level can be placed on the linear belt rail to verify the y-axis and on the retract rails to verify the x-axis. Use the leveling screws on the retract to adjust unit to level. Leveling screws Leveling screws QUICK LOAD SERVO 65/80...
  • Page 46 Step 4: Using the central jackscrew, adjust the unit so that the pusher is centered up and down at the back of the spindle. Make sure that the unit raises or lowers uniformly. Central jackscrew QUICK LOAD SERVO 65/80...
  • Page 47 Once the bar feed has been aligned anchor it using the 4 anchor bolts supplied with the unit. Don't anchor it at retract rail centers; just let the screws touch the ground. Don’t anchor here!!! Anchor here Anchor here QUICK LOAD SERVO 65/80...
  • Page 48 Note: If the bar hits side to side the alignment will have to be adjusted. Procedure complete. QUICK LOAD SERVO 65/80...

  • Page 49: Pusher Changeover Procedure

    Press the pusher adapter locking/unlocking finger toward the front of the bar feeder, then turn the finger a ¼ of a turn clockwise. The finger must stay locked in forward position. Pull the pusher towards the bar feeder front but don't extract it completely out of the carrier. QUICK LOAD SERVO 65/80...
  • Page 50 Slide the white bushing into the front guide bearing. Must be flush on the right side of the carrier bushing. QUICK LOAD SERVO 65/80...
  • Page 51 3 - 8 CHA PT ER 3 : PR OCEDUR ES Step 10: Slide back the carrier to the home position. Close the main access cover. Procedure complete. QUICK LOAD SERVO 65/80...

  • Page 52: Belt Tension Adjustment

    ! This displacement must be approx. 20 mm. If necessary, modify the belt tension with the belt tensioner located at the front of the bar feed. Step 4: Once the tension is set, close the main access cover. Procedure complete. QUICK LOAD SERVO 65/80...

  • Page 53: Home Position Proximity Switch Sq5 Adjustment

    Any slight movement forward of the carrier should deactivate the proximity sensor. ~0,5 mm Step 4: Close the main access cover. Step 5: Press the [STOP] key on the remote control to clear any alarm. Reference the bar feed (see "Reference procedure"). Procedure complete. QUICK LOAD SERVO 65/80...

  • Page 54: Diameter Adjustment Motor Proximity Switch - Sq4

    In upper position, the bar stock should touch the table stops and the selection fingers. Step 4: Once the bar stock loads correctly, check that the bar feed does not load 2 bar stocks at once. Note: the stock must be straight to obtain the ideal adjustment. Procedure complete. QUICK LOAD SERVO 65/80...

  • Page 55: Measuring Cell Adjustment - Sq3

    Step 6: Loosen screws and adjust the cell so that the “red” sensor is reflecting off the center of the bar and tighten the cell down. Red sensor View from the bar feed front QUICK LOAD SERVO 65/80...
  • Page 56 Step 9: emove the material from the channel and close the main access cover. Step 10: Press the [STOP] key on the remote control station to clear the "Main Acc ess Cover Open" alarm. Procedure complete. QUICK LOAD SERVO 65/80...

  • Page 57: Pusher Reversing Distance

    Step 9: With the up/down and left/right keys, enter the calculated value. Press on the key corresponding to [ENTER]. Step 10: Exit the menu by pressing twice the key corresponding to [ESC]. Procedure complete. QUICK LOAD SERVO 65/80...

  • Page 58: Reference Procedure

    Press on the key corresponding to [MANUAL MODE]. LOADING CHANNEL IN INTERMEDIATE POSITION - F1 MANUAL MODE Step 4: Press on the key corresponding to [REFERENCE]. POSITIONING ERROR! ENCODER LOST ITS REFERENCE POINT... RESET REFERENCE POINT (ZERO POINT) -F1 START QUICK LOAD SERVO 65/80...
  • Page 59 SQ5 and the servo amplifier looks for the IN PROGRESS... torque to build up after hitting the mechanical stop. Once the home position is set, the HOME PAGE will reappear on the remote control station. Procedure complete. QUICK LOAD SERVO 65/80...

  • Page 60: Calibration Of The Loading Table

    Step 10: Press on the [F3] key to move down the loading table. Step 11: Press on the [F2] key to move up the loading table. The correction of the loading table has been taken into account. Procedure complete. QUICK LOAD SERVO 65/80...

  • Page 62: Chapter 4

    PLC holds a backup program for the Quick Load Servo 65 / 80 if at anytime there has been a power failure or any error has occurred in the user program.

  • Page 63: Software / Plc Versions

    4 - 2 CHA PT ER 4 : SOF TWAR E Software / PLC Versions To find the LNS software version: In the working menu, press the key on the remote control. Press the Page Down key to read more information.

  • Page 64: Software Update

    Insert the card containing the new software in the "M1" labeled bay. A chamfer avoids any bad insertion. Step 3: With a sharp object, press on the little button labeled Run/Halt for approx. 3 seconds, until the LED located at its left blinks. QUICK LOAD SERVO 65/80...
  • Page 65 The PLC is rebooted and the new software is loaded. This operation takes max. 10 seconds. When the barfeed has saved all the parameters, it is operational again. Step 5: Take out the card containing the software. Close the PLC cover and the electrical cabinet. Procedure Complete. QUICK LOAD SERVO 65/80...

  • Page 66: Battery Replacement

    Replace the battery with an identical type. Check that the battery is in the right direction. Step 4: Insert back the battery support in its bay. Close the PLC cover and the electrical cabinet. Procedure Complete. QUICK LOAD SERVO 65/80...

  • Page 68: Maintenance

    Chapter 5: Maintenance eriodic maintenance of the Quick Load Servo 65 / 80 bar feeding system can only serve to improve the operation and prolong its useful life. Following a few simple steps can be extremely helpful and takes relatively no time at all. The list of maintenance procedures has been broken down into two groups determined by the frequency with which each procedure should be followed;...

  • Page 69: Monthly Maintenance

    1 year Verify the alignment of the bar feeder Check alignment of bar feeder to lathe spindle to make sure neither have shifted. In case the bar feeder or lathe has shifted, align the bar feeder again. QUICK LOAD SERVO 65/80...

  • Page 70: Spare Parts

    • Bar feeder type • Bar feeder serial number (located on the sub-base) • Bar stock diameter • Lathe type (brand & model) QUICK LOAD SERVO 65/80...

  • Page 71: Recommended Spare Parts List

    Proximity switch, diameter selection fingers in origin position SQ 5 4.391 Pusher in home position switch SQ 10 4.763 Cover closed safety switch SQ 11 4.763 Magazine cover closed safety switch SQ 12 4.763 Retraction system safety switch QUICK LOAD SERVO 65/80...

  • Page 72: Mechanical Assemblies

    CHA PTER 6: SPAR E PARTS 6 - 3 Mechanical Assemblies 020.000.011 QLS 65 - Machine assembly – left/rear – longitudinal retraction QUICK LOAD SERVO 65/80...
  • Page 73 6 - 4 CHA PTER 6: SPAR E PARTS 020.000.021 QLS 65 – Machine assembly – left/rear – transversal retraction QUICK LOAD SERVO 65/80...
  • Page 74 CHA PTER 6: SPAR E PARTS 6 - 5 020.000.031 QLS 65 - Machine assembly – left/front – longitudinal retraction QUICK LOAD SERVO 65/80...
  • Page 75 6 - 6 CHA PTER 6: SPAR E PARTS 020.000.041 QLS 65 - Machine assembly – left/front – transversal retraction QUICK LOAD SERVO 65/80...
  • Page 76 CHA PTER 6: SPAR E PARTS 6 - 7 020.000.111 QLS 80 - Machine assembly – left/rear – longitudinal retraction QUICK LOAD SERVO 65/80...
  • Page 77 6 - 8 CHA PTER 6: SPAR E PARTS 020.000.121 QLS 80 - Machine assembly – left/rear – transversal retraction QUICK LOAD SERVO 65/80...
  • Page 78 CHA PTER 6: SPAR E PARTS 6 - 9 020.000.131 QLS 80 - Machine assembly – left/front – longitudinal retraction QUICK LOAD SERVO 65/80...
  • Page 79 6 - 10 CHA PTER 6: SPAR E PARTS 020.000.141 QLS 80 - Machine assembly – left/front – transversal retraction QUICK LOAD SERVO 65/80...

  • Page 80: Base

    CHA PTER 6: SPAR E PARTS 6 - 11 Base 020.001.213 QLS 65 - Base left/rear – Table base – fingers assembled QUICK LOAD SERVO 65/80...
  • Page 81 6 - 12 CHA PTER 6: SPAR E PARTS 020.001.243 QLS 65 - Base left/front – Table base – fingers assembled QUICK LOAD SERVO 65/80...
  • Page 82 CHA PTER 6: SPAR E PARTS 6 - 13 020.001.313 QLS 80 - Base left/rear – Table base – fingers assembled QUICK LOAD SERVO 65/80...
  • Page 83 6 - 14 CHA PTER 6: SPAR E PARTS 020.001.343 QLS 80 - Base left/front – Table base – fingers assembled QUICK LOAD SERVO 65/80...
  • Page 84 CHA PTER 6: SPAR E PARTS 6 - 15 020.001.603 QLS 65/80 - Sub-assembly electrical cabinet door QUICK LOAD SERVO 65/80...
  • Page 85 6 - 16 CHA PTER 6: SPAR E PARTS LOADING TABLE 020.002.103 QLS 65 - Sub-assembly table 1300 left/rear QUICK LOAD SERVO 65/80...
  • Page 86 CHA PTER 6: SPAR E PARTS 6 - 17 020.002.123 QLS 80 - Sub-assembly table 1600 left/rear QUICK LOAD SERVO 65/80...
  • Page 87 6 - 18 CHA PTER 6: SPAR E PARTS 020.002.613 QLS 65/80 - Sub-assembly motor loading bar stock QUICK LOAD SERVO 65/80...
  • Page 88 CHA PTER 6: SPAR E PARTS 6 - 19 020.002.803 QLS 65/80 - Sub-assembly rolling bearing QUICK LOAD SERVO 65/80...

  • Page 89: Crossing Slide

    6 - 20 CHA PTER 6: SPAR E PARTS Crossing Slide 020.004.103 QLS 65 - Sub-assembly body 1300 left/rear QUICK LOAD SERVO 65/80...
  • Page 90 CHA PTER 6: SPAR E PARTS 6 - 21 020.004.123 QLS 80 - Sub-assembly body 1600 left/rear QUICK LOAD SERVO 65/80...
  • Page 91 6 - 22 CHA PTER 6: SPAR E PARTS 020.004.503 QLS 65/80 – Magnetic switch cover closed QUICK LOAD SERVO 65/80...

  • Page 92: Loading Mechanism

    CHA PTER 6: SPAR E PARTS 6 - 23 Loading Mechanism 020.005.103 QLS 65/80 - Sub-assembly centering bearing QUICK LOAD SERVO 65/80...
  • Page 93 6 - 24 CHA PTER 6: SPAR E PARTS 020.005.203 QLS 65/80 - Sub-assembly centering bearing QUICK LOAD SERVO 65/80...
  • Page 94 CHA PTER 6: SPAR E PARTS 6 - 25 020.005.303 QLS 65/80 - Locking pusher assembled QUICK LOAD SERVO 65/80...
  • Page 95 6 - 26 CHA PTER 6: SPAR E PARTS 020.005.403 QLS 65 - Sub-assembly carrier 1300 left/rear QUICK LOAD SERVO 65/80...
  • Page 96 CHA PTER 6: SPAR E PARTS 6 - 27 020.005.413 QLS 65/80 - Locking block QUICK LOAD SERVO 65/80...
  • Page 97 6 - 28 CHA PTER 6: SPAR E PARTS 020.005.433 QLS 80 - Sub-assembly carrier 1600 left/rear QUICK LOAD SERVO 65/80...
  • Page 98 CHA PTER 6: SPAR E PARTS 6 - 29 020.005.603 QLS 65/80 - Sub-assembly servo motor QUICK LOAD SERVO 65/80...
  • Page 99 6 - 30 CHA PTER 6: SPAR E PARTS 020.005.703 QLS 65/80 - Sub-assembly drive QUICK LOAD SERVO 65/80...
  • Page 100 CHA PTER 6: SPAR E PARTS 6 - 31 020.005.713 QLS 65/80 - Sub-assembly tensioner QUICK LOAD SERVO 65/80...
  • Page 101 6 - 32 CHA PTER 6: SPAR E PARTS 020.005.723 QLS 65/80 - Sub-assembly cogwheel QUICK LOAD SERVO 65/80...

  • Page 102: Protections

    CHA PTER 6: SPAR E PARTS 6 - 33 Protections 020.006.203 QLS 65 - Sub-assembly main access cover 1300 QUICK LOAD SERVO 65/80...
  • Page 103 6 - 34 CHA PTER 6: SPAR E PARTS 020.006.213 QLS 80 - Sub-assembly main access cover 1600 QUICK LOAD SERVO 65/80...

  • Page 104: Foot

    CHA PTER 6: SPAR E PARTS 6 - 35 Foot 020.007.103 QLS 65/80 - Foot – longitudinal retraction assembled left/rear QUICK LOAD SERVO 65/80...
  • Page 105 6 - 36 CHA PTER 6: SPAR E PARTS 020.007.133 QLS 65/80 - Foot – transversal retraction assembled left/rear QUICK LOAD SERVO 65/80...

  • Page 106: Loading Magazine

    CHA PTER 6: SPAR E PARTS 6 - 37 Loading Magazine 020.009.011 QLS 65 - Loading magazine 1300 left/rear QUICK LOAD SERVO 65/80...
  • Page 107 6 - 38 CHA PTER 6: SPAR E PARTS 020.009.031 QLS 80 - Loading magazine 1600 left/rear QUICK LOAD SERVO 65/80...
  • Page 108 CHA PTER 6: SPAR E PARTS 6 - 39 020.009.313 QLS 65/80 - Diameter selection setup assembled QUICK LOAD SERVO 65/80...
  • Page 109 6 - 40 CHA PTER 6: SPAR E PARTS 020.009.603 QLS 65 - Sub-assembly shaft 1300 left/rear QUICK LOAD SERVO 65/80...
  • Page 110 CHA PTER 6: SPAR E PARTS 6 - 41 020.009.643 QLS 80 - Sub-assembly shaft 1600 left/rear QUICK LOAD SERVO 65/80...

  • Page 111: Retraction

    6 - 42 CHA PTER 6: SPAR E PARTS Retraction 020.010.103 QLS 65/80 - Retraction left/rear assembled QUICK LOAD SERVO 65/80...
  • Page 112 CHA PTER 6: SPAR E PARTS 6 - 43 020.010.403 QLS 65/80 - Sub-assembly retraction wheel QUICK LOAD SERVO 65/80...
  • Page 113 6 - 44 CHA PTER 6: SPAR E PARTS 020.010.603 QLS 65/80 – Magnetic switch retraction QUICK LOAD SERVO 65/80...

  • Page 114: Pusher

    CHA PTER 6: SPAR E PARTS 6 - 45 Pusher 020.011.013 / 6 - QLS 65 - Assembly pusher ø1/4" QUICK LOAD SERVO 65/80...
  • Page 115 6 - 46 CHA PTER 6: SPAR E PARTS 020.011.013 / 12 - QLS 65 - Assembly pusher ø12 QUICK LOAD SERVO 65/80...
  • Page 116 CHA PTER 6: SPAR E PARTS 6 - 47 020.011.013 / 20 - QLS 65 - Assembly pusher ø20 QUICK LOAD SERVO 65/80...
  • Page 117 6 - 48 CHA PTER 6: SPAR E PARTS 020.011.023 / 6 - QLS 80 - Assembly pusher ø1/4" QUICK LOAD SERVO 65/80...
  • Page 118 CHA PTER 6: SPAR E PARTS 6 - 49 020.011.023 / 12 - QLS 80 - Assembly pusher ø12 QUICK LOAD SERVO 65/80...
  • Page 119 6 - 50 CHA PTER 6: SPAR E PARTS 020.011.023 / 20 - QLS 80 - Assembly pusher ø20 QUICK LOAD SERVO 65/80...

  • Page 120: Accessories & Options

    CHA PTER 6: SPAR E PARTS 6 - 51 Accessories & Options 020.013.112 QLS 65/80 – Orientation kit for square stocks QUICK LOAD SERVO 65/80...
  • Page 121 6 - 52 CHA PTER 6: SPAR E PARTS 020.013.033 QLS 65/80 – Front protection cover 300 mm QUICK LOAD SERVO 65/80...

  • Page 122: Floor Plans

    CHA PTER 6: SPAR E PARTS 6 - 53 Floor Plans 020.015.011 Assembly QLS 65 left/rear – longitudinal retraction QUICK LOAD SERVO 65/80...
  • Page 123 6 - 54 CHA PTER 6: SPAR E PARTS 020.015.021 Assembly QLS 65 left/rear – transversal retraction QUICK LOAD SERVO 65/80...
  • Page 124 CHA PTER 6: SPAR E PARTS 6 - 55 020.015.031 Assembly QLS 65 left/front – longitudinal retraction QUICK LOAD SERVO 65/80...
  • Page 125 6 - 56 CHA PTER 6: SPAR E PARTS 020.015.041 Assembly QLS 65 left/front – transversal retraction QUICK LOAD SERVO 65/80...
  • Page 126 CHA PTER 6: SPAR E PARTS 6 - 57 020.015.111 Assembly QLS 80 left/rear – longitudinal retraction QUICK LOAD SERVO 65/80...
  • Page 127 6 - 58 CHA PTER 6: SPAR E PARTS 020.015.121 Assembly QLS 80 left/rear – transversal retraction QUICK LOAD SERVO 65/80...
  • Page 128 CHA PTER 6: SPAR E PARTS 6 - 59 020.015.131 Assembly QLS 80 left/front – longitudinal retraction QUICK LOAD SERVO 65/80...
  • Page 129 6 - 60 CHA PTER 6: SPAR E PARTS 020.015.141 Assembly QLS 80 left/front – transversal retraction QUICK LOAD SERVO 65/80...

This manual is also suitable for:

Quick load servo 80

Table of Contents

Save PDF
