CHAPTER 7: OPERATION
6.

END OF BAR POSITION

6.1. Description

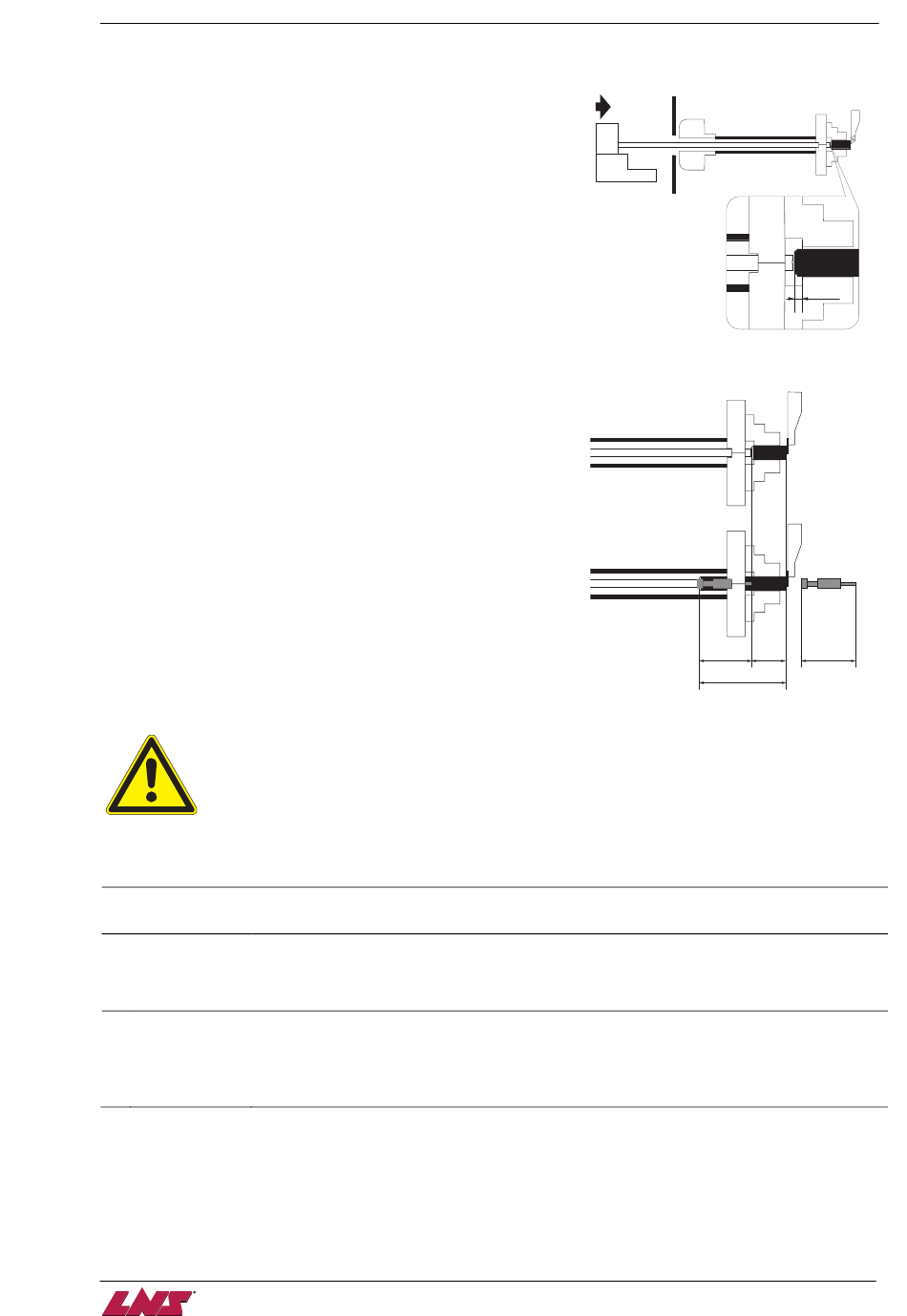

The end of bar position determines the moment when the bar
feed enters the loading cycle.
Usually, the end of bar position is adjusted as closely as
possible behind the clamping system of the lathe (approximately
5 mm or a 1/4" behind the chuck jaws or collet pads).
This will provide minimum bar stock remnant.
Regardless of the length of the bars, or parts, the end of bar
position is always the same.
In very special cases, a different end of bar setting needs to be
selected.
The length of the remnant may vary :
•
The minimum remnant length (Min) is obtained when the
feeding pusher is just behind the clamping device while the
last part is being machined.
•
The maximum remnant length (Max) is obtained when
there is not enough material for machining an additional
part (Lp - 1 mm).
Maximum remnant length = Lp - 1 mm + Min
6.2. Setting
Before handling the bar feeder, stop the lathe at the end of part cycle !
To edit these parameters, the bar feed system must be in STOP mode.
To validate a new parameter or a new value, keep [ENTER] pressed until the icon
disappears.
[STOP]
Press the key [STOP].
1
[MENU]
Press the key [MENU].
2
[PAGE DOWN]
The remote command displays the following text : "PARMETERS RELATED TO".
3
Press twice the key attributed to the icon [PAGE DOWN].
[ENTER]
The remote command displays the following text : "SETTINGS FOR
4
POSITIONING".
Press the key attributed to the icon [ENTER].
5mm
Lp -1mm Min. Lp
Max.
