CHAPTER 3: SETTING INTO OPERATION
2.

MOUNTING

2.1. Mounting loading magazine
If, during the installation, it seems that the table collides with the lathe, it is possible to
move it back. The loading table is mounted towards the front of the unit at the factory, and,
except in special cases, it should not be moved.
Special protection plates (provided upon request) must be installed to the front of the
table. It is strictly prohibited to operate the device without the metal protection plates.
•

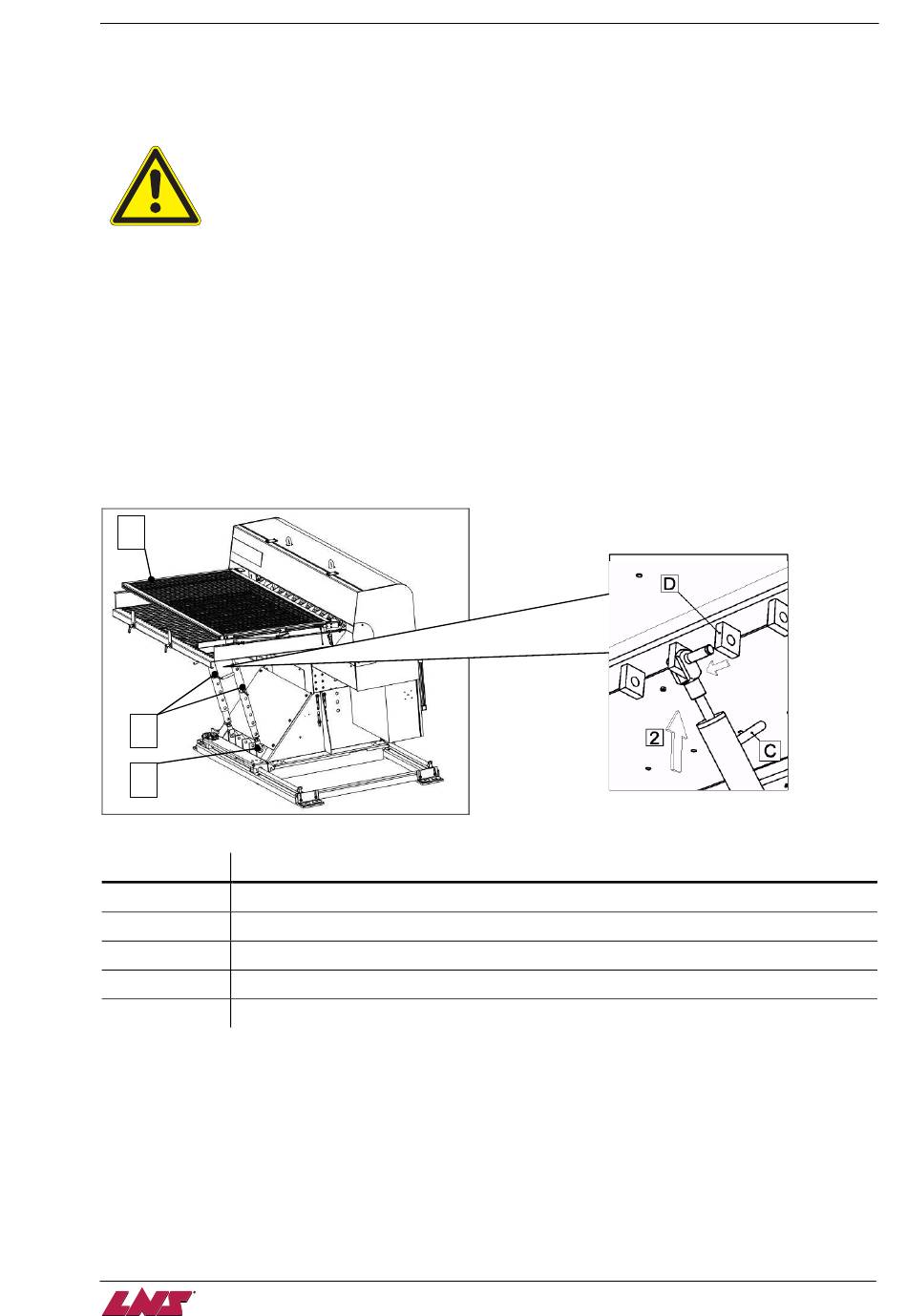

Bring the axle for setting the slope near the loading table. Unlock and remove the pins in the setting
forks, and then:
•
Lift the loading table.
•
Insert the fork located next to the setting lever on one of the eyed support piece of the loading table
(preferably centred on the loading table). Insert the pin and secure it with the latch.
•
Insert the fork located at the other end of the setting axle on the eyed support piece
A
B
E
Designation Description
A Magazine loading table
B Slope adjusting axle
C Adjusting handle
D Eyed support piece on loading table
E Eyed support piece
QUICK LOAD SERVO III MI
3-5
