4.2.6. Parts Library

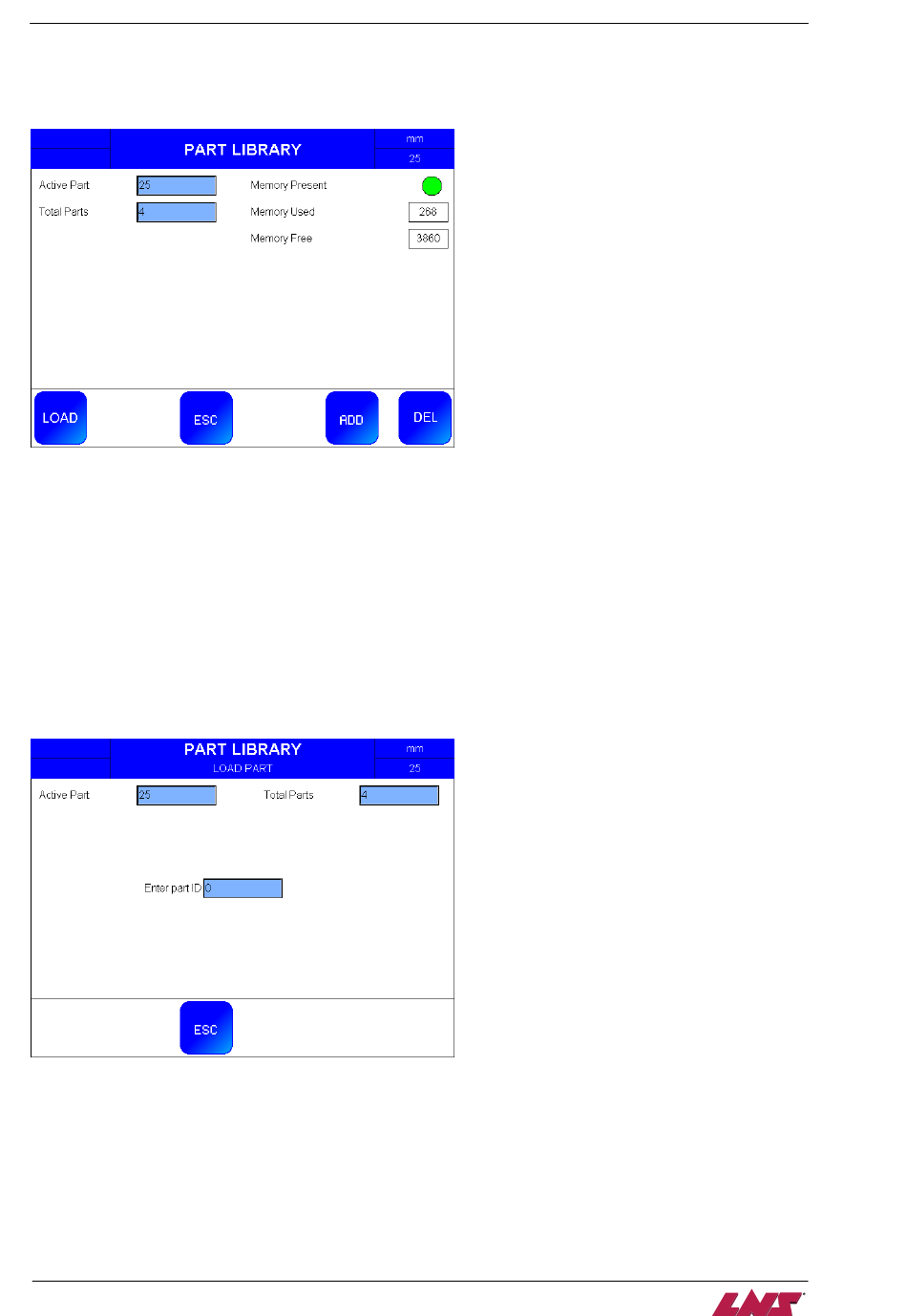

PART LIBRARY
The main « Parts Library » shows the current state of the library.
• Active part: shows the part ID currently in use.
• Total parts: shows the total number of parts stored in the library.
• Memory present: A memory expansion is necessary for the parts library.
Green: the memory expansion is installed on the PLC and in operation
o
Red: there is no memory expansion card on the PLC. No part can be loaded, added or
o
deleted from the Parts Library.
• Memory used: shows the total currently used memory for parts, in kilobytes.
• Memory free: shows the total unallocated memory, in kilobytes.
LOAD PART
This screen allows recalling and loading the parameters of an existing part from the parts library into the
parts parameters, by calling its part ID.
• Active part: shows the part ID currently in use.
• Total parts: shows the total number of parts stored in the library.
• Enter part ID: type the ID of the part to recall and load.
