7.

RETRACTION

Please read the safety precautions described at the beginning of this manual before
handling the following devices.
Before handling the retraction mechanism, check to see that the interface cables between
the spindle and the bar feed system are long enough
7.1. Description
When a lathe is equipped with a bar feed system, certain elements (motors, spindle reduction tubes, etc.)
become inaccessible, and sometimes it is difficult, or even impossible, to proceed with their maintenance.
To facilitate these tasks, the Quick Load Servo III MI is equipped with a retraction system, which allows
the operator to move the bar feeder.

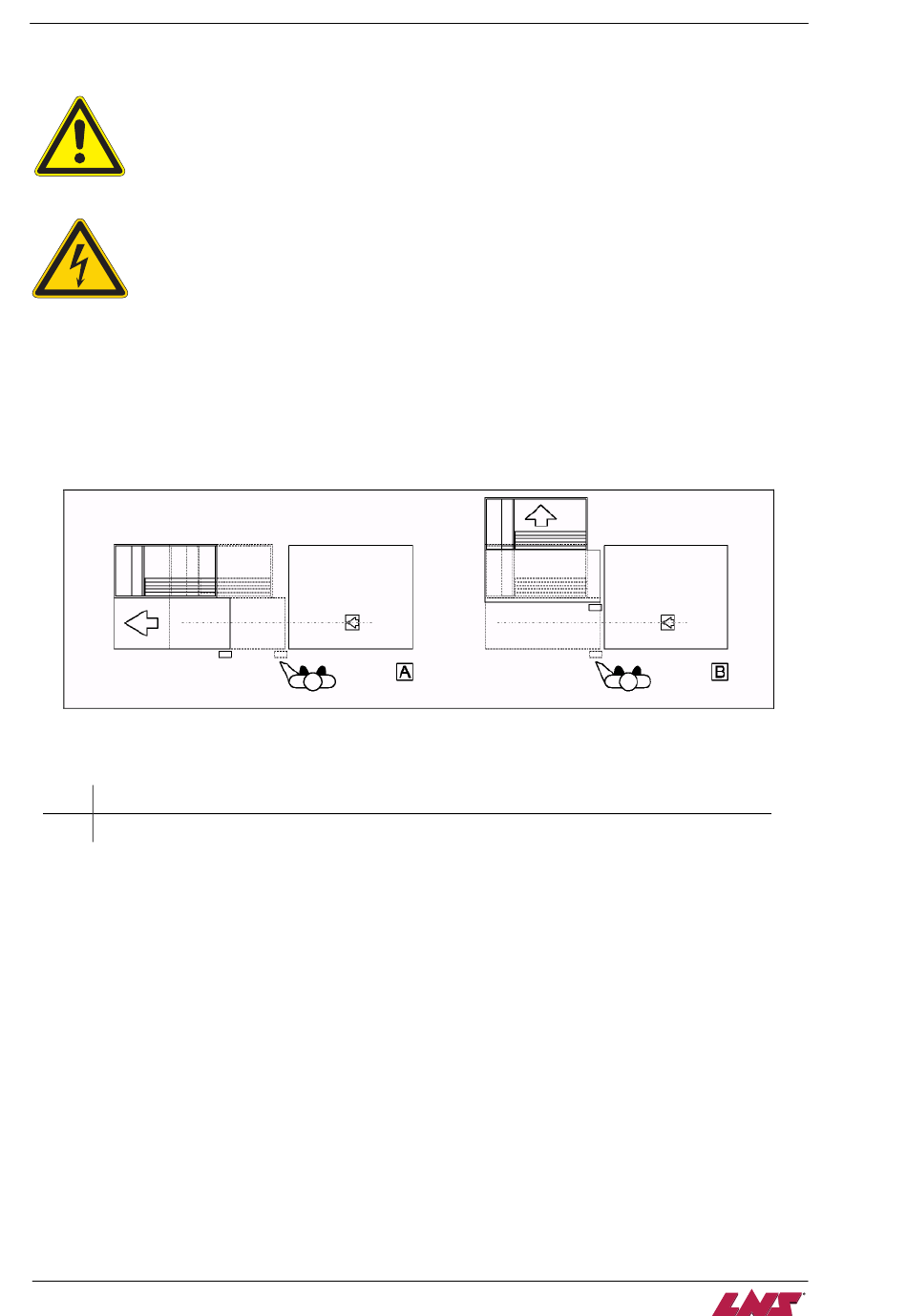

The retraction mechanism may be assembled as necessary, to ensure longitudinal or lateral movement.
The retraction mechanism may be assembled as necessary, to ensure longitudinal or lateral movement.
A Z-axis (longitudinal) retraction for Left/Rear Load
B X-axis (lateral) retraction for Left/Rear Load
