CHAPTER 3: SETTING INTO OPERATION
9. Tighten the screws (F) of the sliding bearings (D).
10. Slide the plates (K) under the rails, then screw the screws (L) until they rest on the plates.
11. Install the two loading table supports (M). Install the loading table.
12. With screws (J), lift the bar feed system (5 mm between base plate and floor) and level it.
13. Tighten the screws (H) and (I) and the locknuts (N)
14. Install the auto-lock device (O).

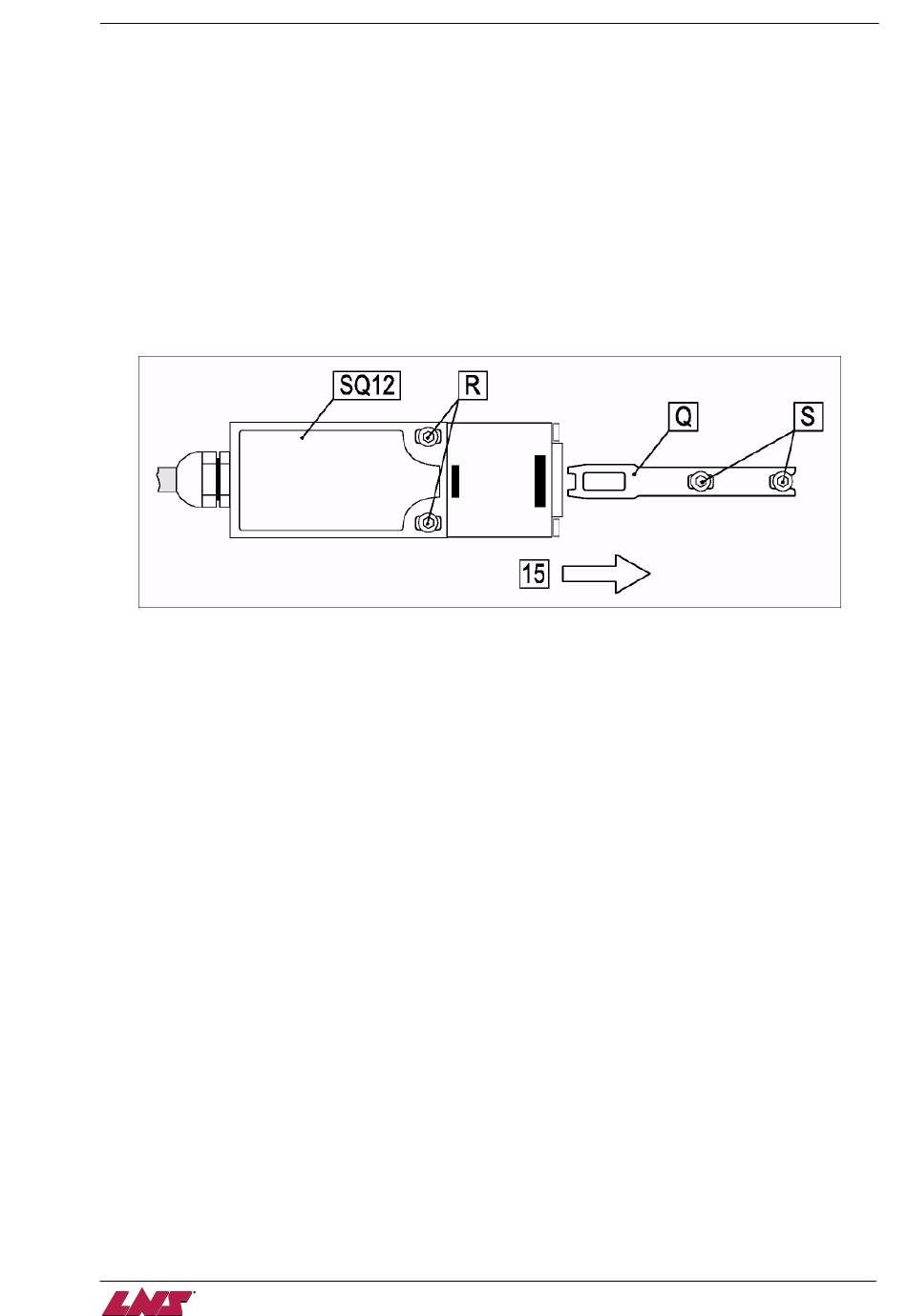

15. Introduce the key (Q) located at the front of the rail of the barfeeder in the safety switch, then fix the
safety switch on the retraction device with the screws (R). If the fixing holes of the switch are not
perfectly lined up, loosen the screws of the key (S), fix the switch and then the key.
16. Proceed to the alignment as indicated on chapter 3/point 2.5.
When the barfeeder is fixed to the floor, check the alignment of the switch with the key by moving
the barfeeder backward and forward again to its working position.
