3-4
1.3. Preparation for mounting
For mounting and installing the bar feed system, it is advisable to contact LNS or one of its agents. The
latter cannot be held responsible for any malfunction resulting from an incorrect installation in which they
did not take part.
Note: If the eyed screws are not mounted, they should be among the parts in the separate package
•

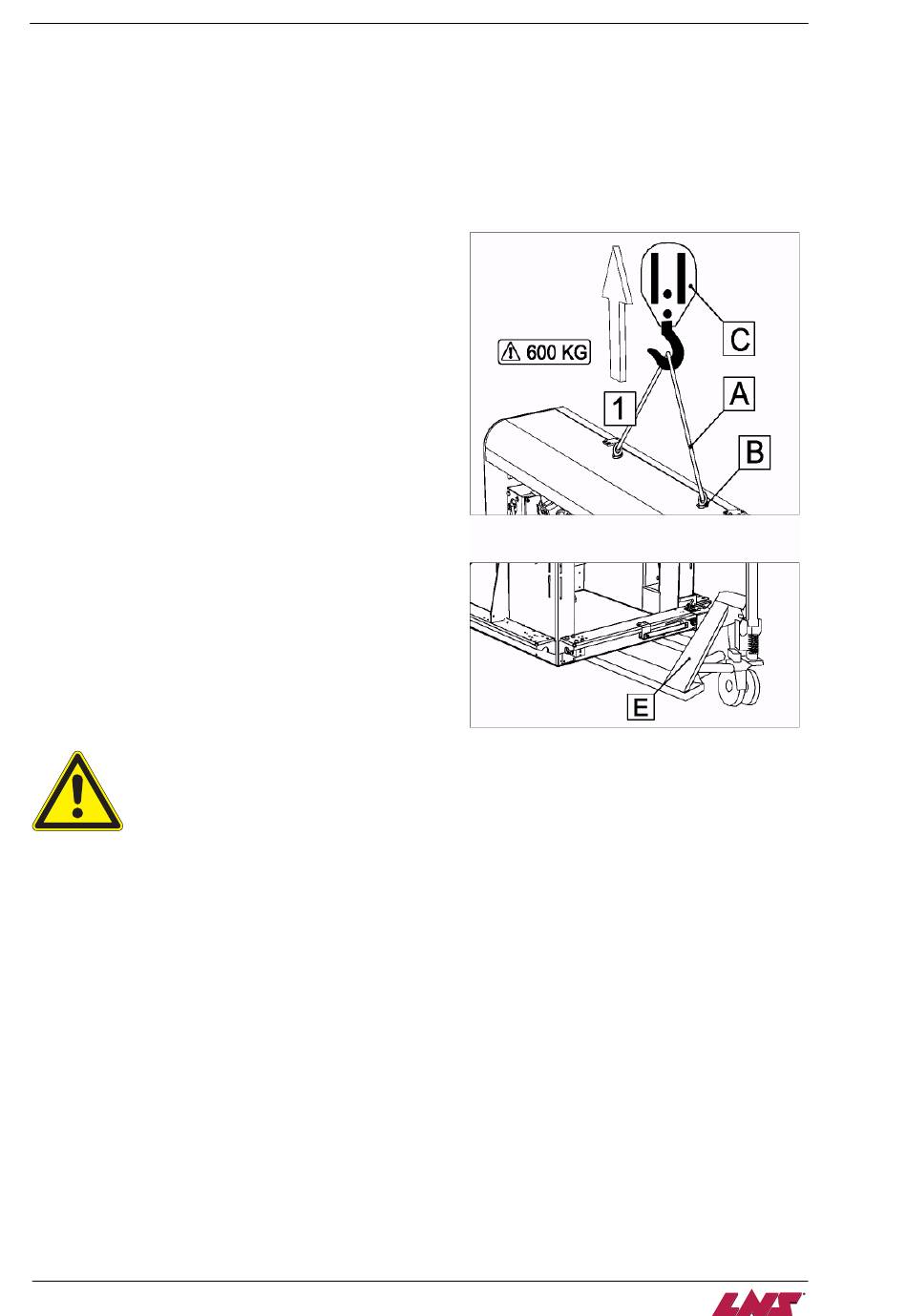

Introduce two straps (A) into the lifting screws (B)
and hook them to a pulley (C). Lift the pulley to
stretch the straps
•
Remove the bolts (F) (see previous page), which
keep the bar feed system in place on the pallet for
transportation.
•
Lift the bar feed system (1) and remove the crate.
•
Now the bar feed system can also be moved with a
lift truck (E). In this case, place the arms of the lift
truck underneath the body of the bar feed system.
•
Move the bar feed system, taking care that it
remains horizontal, and that no one is nearby or
under the suspended load.
•
Do not knock the bar feed system as you move it;
this may damage it.
•
Place the bar feed system behind the lathe, as
close as possible, and in an approximate alignment
with the spindle. For the placement, the stationary
and mobile space requirements for the lathe and
bar feed system should be taken into account.
The distance between the lathe and the bar feed system should not exceed 20 mm.
Should an obstacle impose a greater distance, contact LNS or their local representative.
The area around the lathe and bar feed system must be cleared to allow for their maintenance and
handling. It should also remain clear after the installation is completed.
