Characteristics; Floor Plans - LNS QUICK LOAD SERVO III MI Instruction Manual

2-2
1.

CHARACTERISTICS

Note : Depending on the country and the standards in effect, certain technical data, such as the
power supply, may vary. Please see the technical card delivered with the device.
Weight
Overall length
Overall width
Magazine depth
Height
Centerline range
X and Z axis retraction travel
Minimum diameter (round)
Maximum diameter (round)
Minimum bar stock length
Maximum bar stock length
Maximum bar stock weight
Air pressure
Maximum air consumption
Main electrical power (volts)
Maximum current rate (amps)
Pushing force/torque
Maximum feed rate
Loading cycle for bar stock
Loading cycle for shaft loading (one shot)
(*) Depending on the barfeeder, these technical data may vary. Please refer to the Options for Quick
Load Servo III MI.

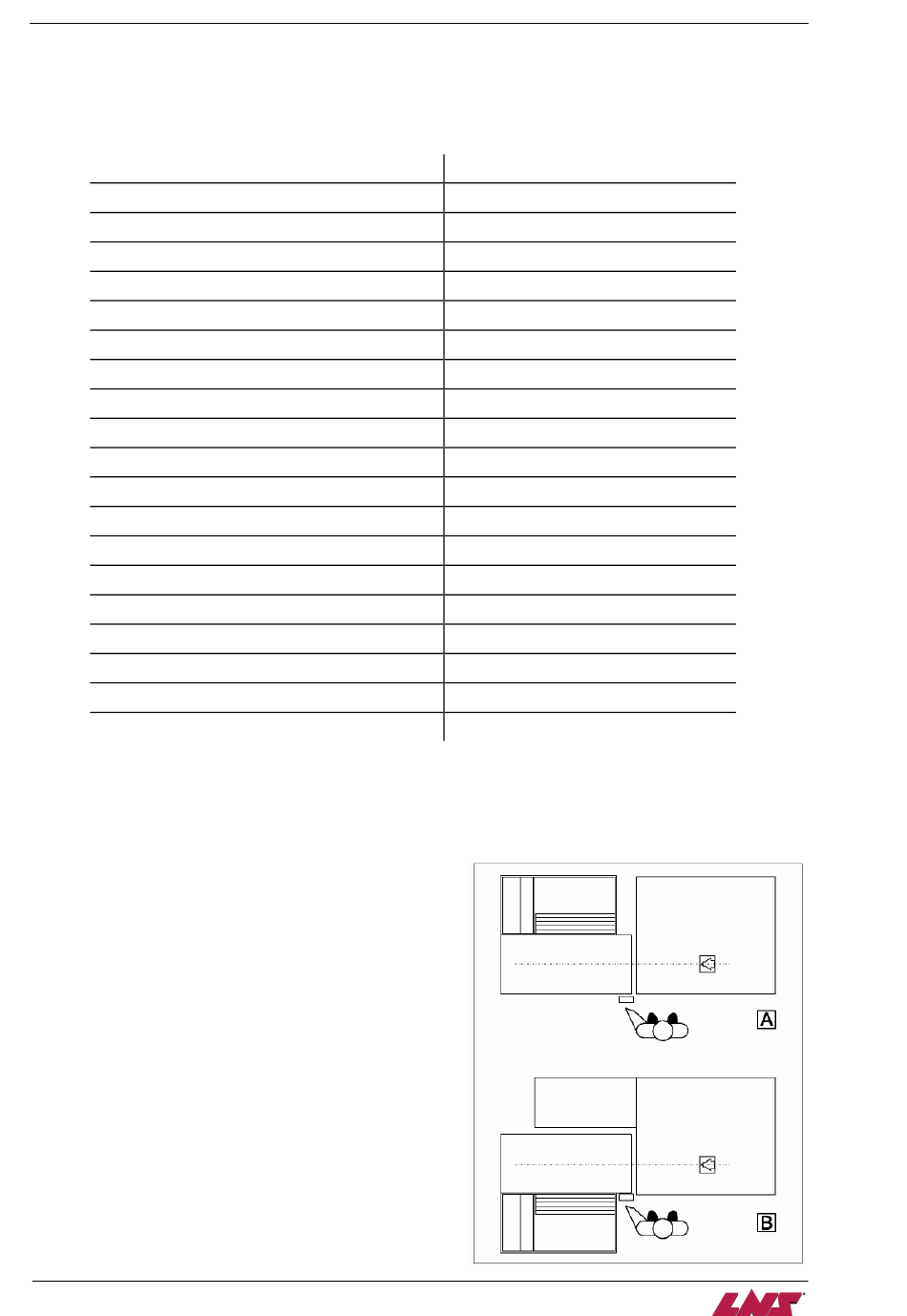

2.

FLOOR PLANS

The following floor space plans indicate the most
frequently used dimensions for placing the bar feed
system. Details on the dimensions of other parts or
elements of the bar feed system will be furnished upon
request.
The plans 2.1. and 2.2. shows the Quick Load Servo II
MI bar feed system with left/rear loading (A).
The plans 2.3. and 2.4. shows the Quick Load Servo II
MI bar feed system with left/front loading (B).
All dimensions are in millimeters.
QUICK LOAD SERVO III MI
CHAPTER 2: TECHNICAL DATA
570 Kg
2048 mm
1486 mm
1000 mm
1248 - 1748 mm
900 - 1149mm / 1150 - 1400 mm
600 mm
6 mm
102 mm
300 mm (*)
1300 mm (*)
80 kg/barstock
5 bar
6 litres (per loading cycle)
220 - 480 volts / 50 Hz - 60 Hz
1 A
167 Nm
> 100 m/min
8 - 12 secs.
4 - 7 secs.
