7-14 CHAPTER 7: OPERATION
Optional auxiliary end of bar (may be not visible)
Lt2
Lt2
When machining remnants (A) that are rather long, a second mode of production for machining the rest of
the stock can be selected (depending on the capabilities of the lathe).
Top-cut position (may be not visible)
z

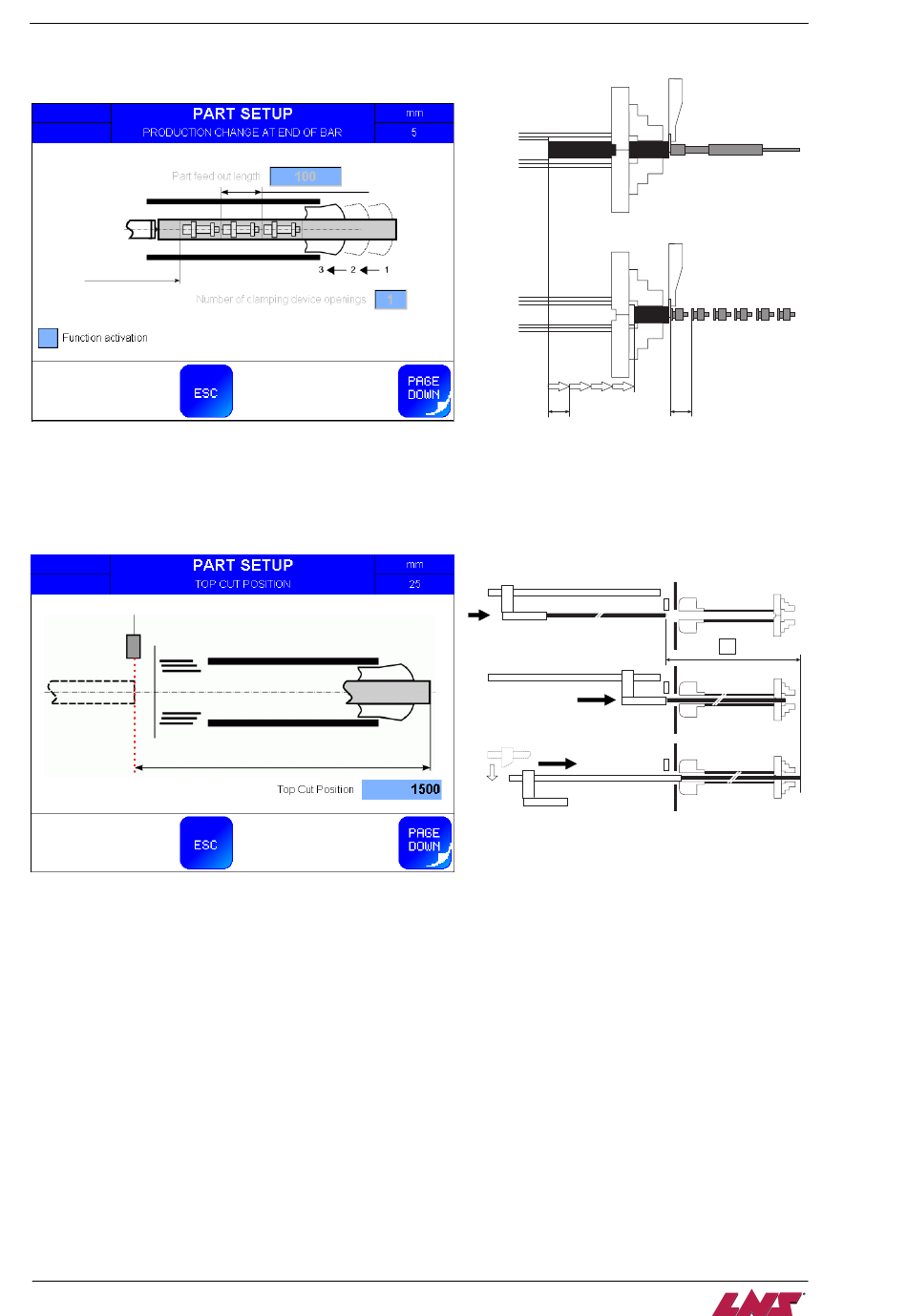

During the loading cycle, the bar is automatically loaded and positioned into the spindle, outside the
clamping device of the lathe (chuck or actuator).
This positioning corresponds to a value (Z) programmed by the operator, which is equal to the distance
between the measuring cell and the position of the material in the lathe clamping device.
With this system, the setting is the same for any bar length.
More information the section 7. TOP-CUT POSITION of this chapter.
