SAFETY DEVICES

The Quick Load Servo III MI bar feed system has been designed with a focus on maximum safety during
its handling and complies with all EC requirements.
Safety covers and devices make access to the moving parts of the bar feed system impossible. Safety
switches keep the bar feed system from operating when these protections are open.
By pressing the emergency stop button located on the remote control, the functions of the bar feed
system and the lathe are immediately stopped.
The LNS company, or its local representative, may not be held responsible for possible
accidents or property damage, whether caused directly or not, by any means whatsoever,
if certain safety devices have not been included.

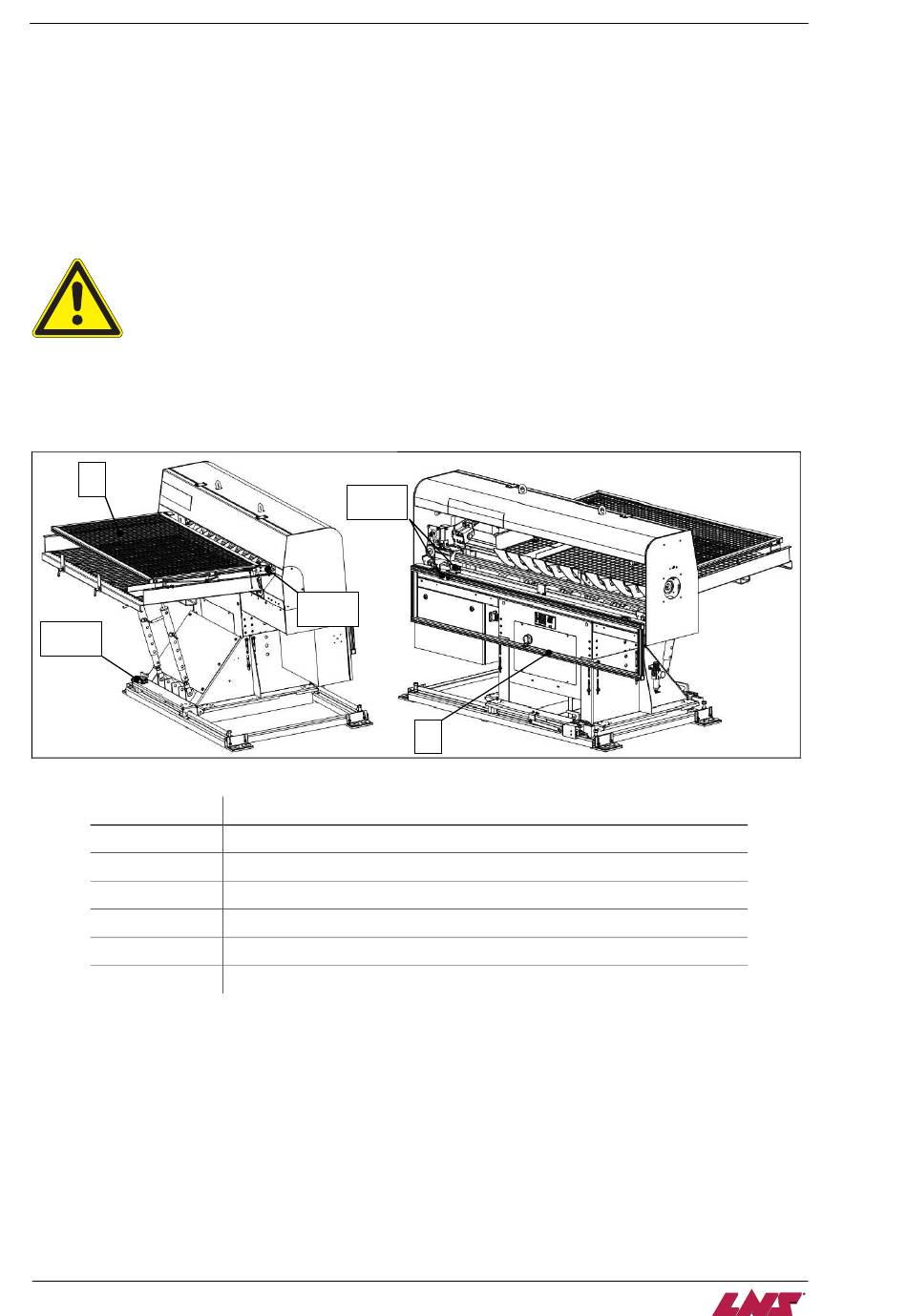

5.1. Layout
B
SQ12
Designation
A
B
C
SQ10
SQ11
SQ12
QUICK LOAD SERVO III MI
SQ10
SQ11
Description
Main access cover
Protection grid for magazine table
Emergency Stop push button (not shown here)
Safety switch for main access cover
Safety switch for magazine protection grid
Safety switch for retraction device (in position switch)
