2.4. Adjusting the table height
•

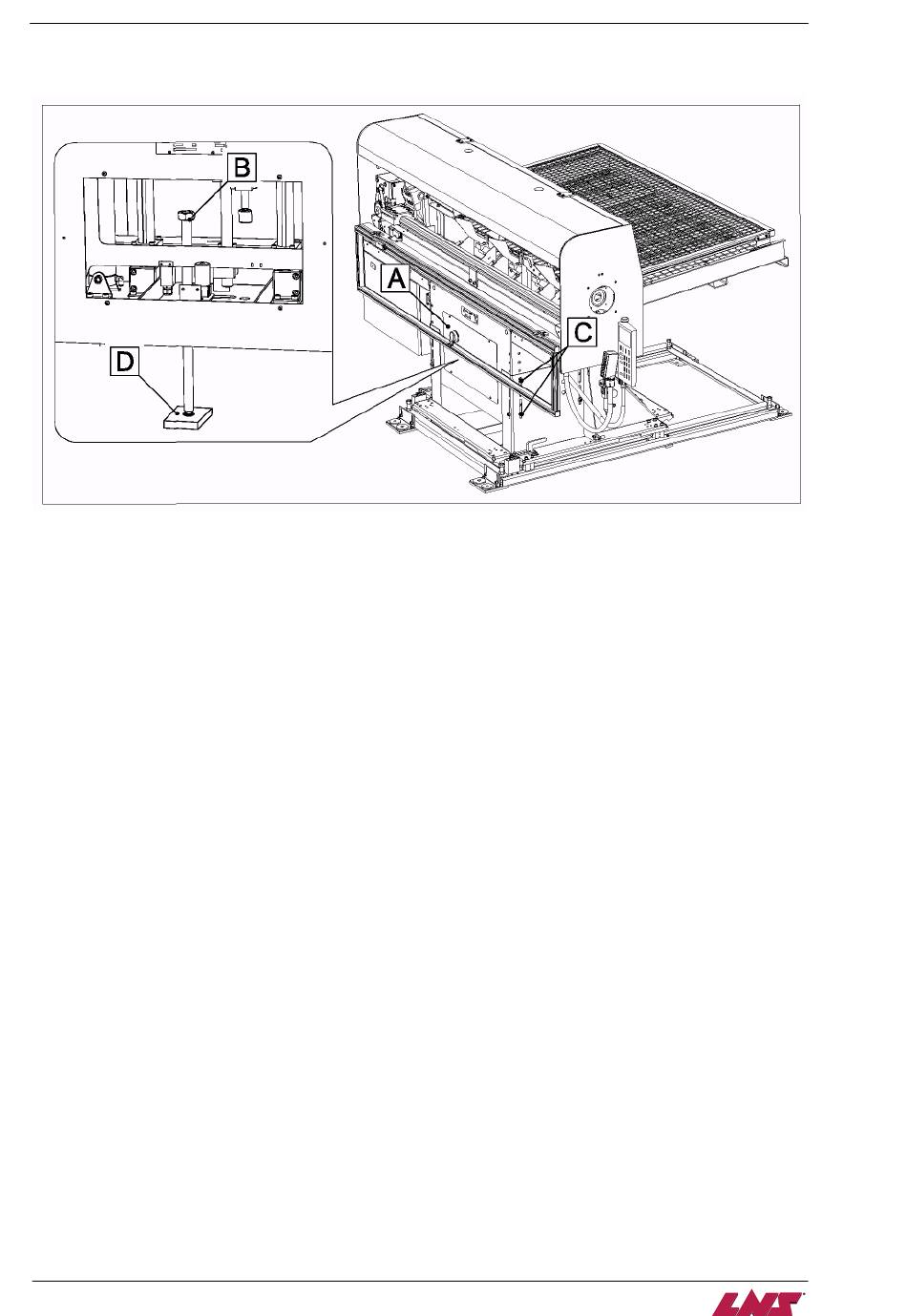

Remove front cover (A).
•
Check that the central screw (B) rests on the plate (D).
•
Carefully loosen the 16 screws (C).
•
Adjust the height of the bar feed system by tightening or loosening the central screw (B).
•
A hexagonal tube, delivered with the system, allows access to the adjusting screw from the top,
through the loading table.
•
When the correct height is reached, tighten the screws (C) and proceed with the alignment of the
bar feed system.
•
Remount the plate (A).
