SPI Flash Memory External Programming Header

In addition to the Quad SPI device FPGA U1 connections shown in
flash memory interface is connected to an external programming header J7.
Table 1-6
Table 1-6: SPI Flash Memory J7 Connections to the FPGA
Figure 1-6
X-Ref Target - Figure 1-6
AC701 Evaluation Board
UG952 (v1.4) August 6, 2019
shows the SPI flash memory J7 connections to FPGA U1.
U1 FPGA Pin Schematic Net Name
AE16 FPGA_PROG_B
N14 FLASH_D3
P14 FLASH_D2
J3.2 QSPI_CS_B
R14 FLASH_D0
R15 FLASH_D1
H13 FPGA_CCLK
NA
NA VCC3V3
shows the J7 SPI flash memory external programming connector.
J7
1
2
3
4
5
6
7
8
9
HDR
1X9

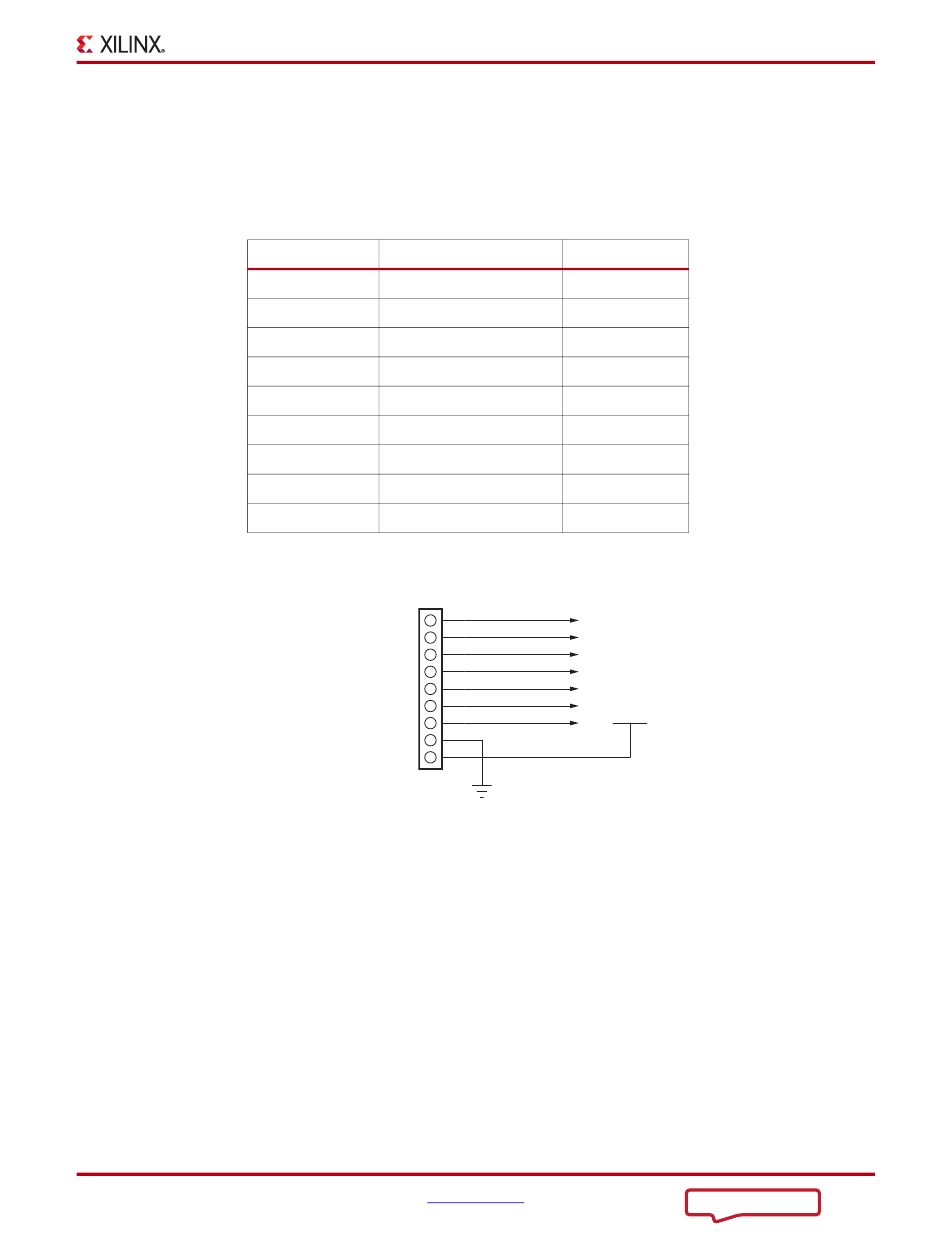

Figure 1-6: SPI Flash Memory J7 External Programming Connector
www.xilinx.com
J7 Pin
1
2
3
4
5
6
7
GND 8
9
FPGA_PROG_B
FLASH_D3
FLASH_D2
QSPI_CS_B
FLASH_D0
FLASH_D1
VCC3V3
FPGA_CCLK
GND
UG952_c1_06_092812
Feature Descriptions
Table 1-5, the FPGA U1 SPI
