subroutine is serviced, all other interrupts will be blocked, as the global interrupt enable bit, EMI
bit will be cleared automatically. This will prevent any further interrupt nesting from occurring.
However, if other interrupt requests occur during this interval, although the interrupt will not be
immediately serviced, the request flag will still be recorded.
If an interrupt requires immediate servicing while the program is already in another interrupt service
routine, the EMI bit should be set after entering the routine to allow interrupt nesting. If the stack
is full, the interrupt request will not be acknowledged, even if the related interrupt is enabled, until
the Stack Pointer is decremented. If immediate service is desired, the stack must be prevented from
becoming full. In case of simultaneous requests, the accompanying diagram shows the priority that
is applied. All of the interrupt request flags when set will wake-up the device if it is in SLEEP or
IDLE Mode, however to prevent a wake-up from occurring the corresponding flag should be set
before the device is in SLEEP or IDLE Mode.
Legend
xxF Request Flag, no auto reset in ISR
xxF Request Flag, auto reset in ISR
xxE Enable Bits
Interrupt Request
Name Flags
CTM0 Comp. P CTM0PF CTM0PE
CTM0 Comp. A CTM0AF CTM0AE
PTM Comp. P PTMPF PTMPE
PTM Comp. A PTMAF PTMAE
CTM1 Comp. P CTM1PF CTM1PE
CTM1 Comp. A CTM1AF CTM1AE
Interrupts contained within
Multi-Function Interrupts

External Interrupt

The external interrupt is controlled by signal transitions on the INT pin. An external interrupt
request will take place when the external interrupt request flag, INTF, is set, which will occur when
a transition, whose type is chosen by the edge select bits, appears on the external interrupt pin. To
allow the program to branch to its respective interrupt vector address, the global interrupt enable bit,
EMI, and respective external interrupt enable bit, INTE, must first be set. Additionally the correct
interrupt edge type must be selected using the INTEG register to enable the external interrupt
function and to choose the trigger edge type. As the external interrupt pin is pin-shared with I/O
pins, they can only be configured as an external interrupt pin if the external interrupt enable bit in
Rev. 1.00
Interrupt
Name
INT Pin
Touch Key Module
Enable Time Base
Bits
Multi-Function 0
Multi-Function 1
2
I C
UART
LVD
A/D Converter
EEPROM
OVP
OCP
HVSC

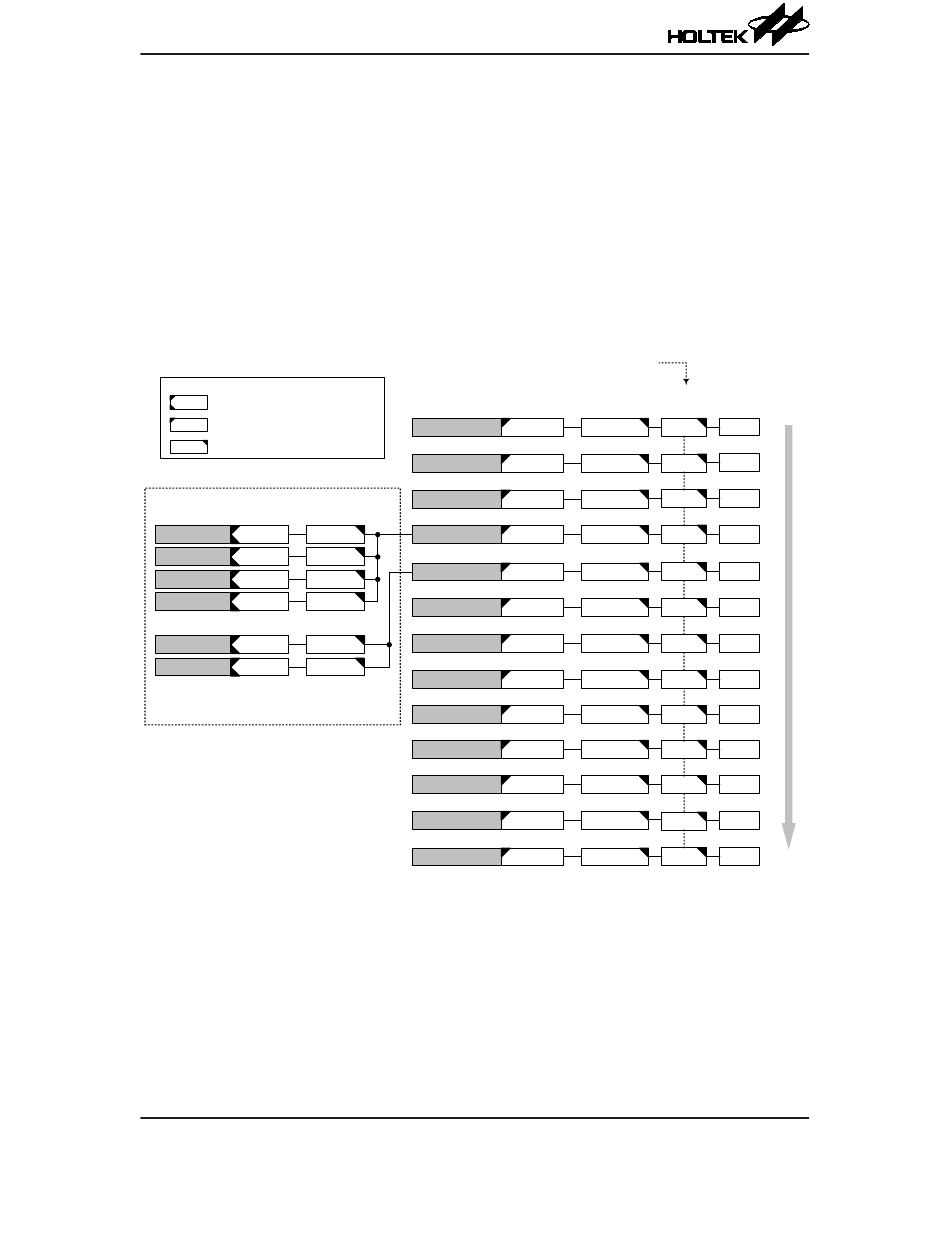

Interrupt Structure
159
EMI auto disabled in ISR
Request Enable Master
Flags Bits Enable
INTF INTE EMI
TKMF TKME EMI
TBF TBE EMI
MF0F MF0E EMI
EMI
MF1F MF1E
IICF IICE EMI
URF URE EMI
LVF LVE EMI
ADF ADE EMI
DEF DEE EMI
OVPF OVPE EMI
OCPF OCPE
EMI
EMI
HVSCF HVSCE
Vector Priority
High
04H
08H
0CH
10H
14H
18H
1CH
20H
24H
28H
2CH
30H
34H
Low
