20-Pin Sop (300Mil) Outline Dimensions - Holtek BS86DH12C Manual

BS86DH12C
High Voltage Touch A/D Flash MCU with HVIO

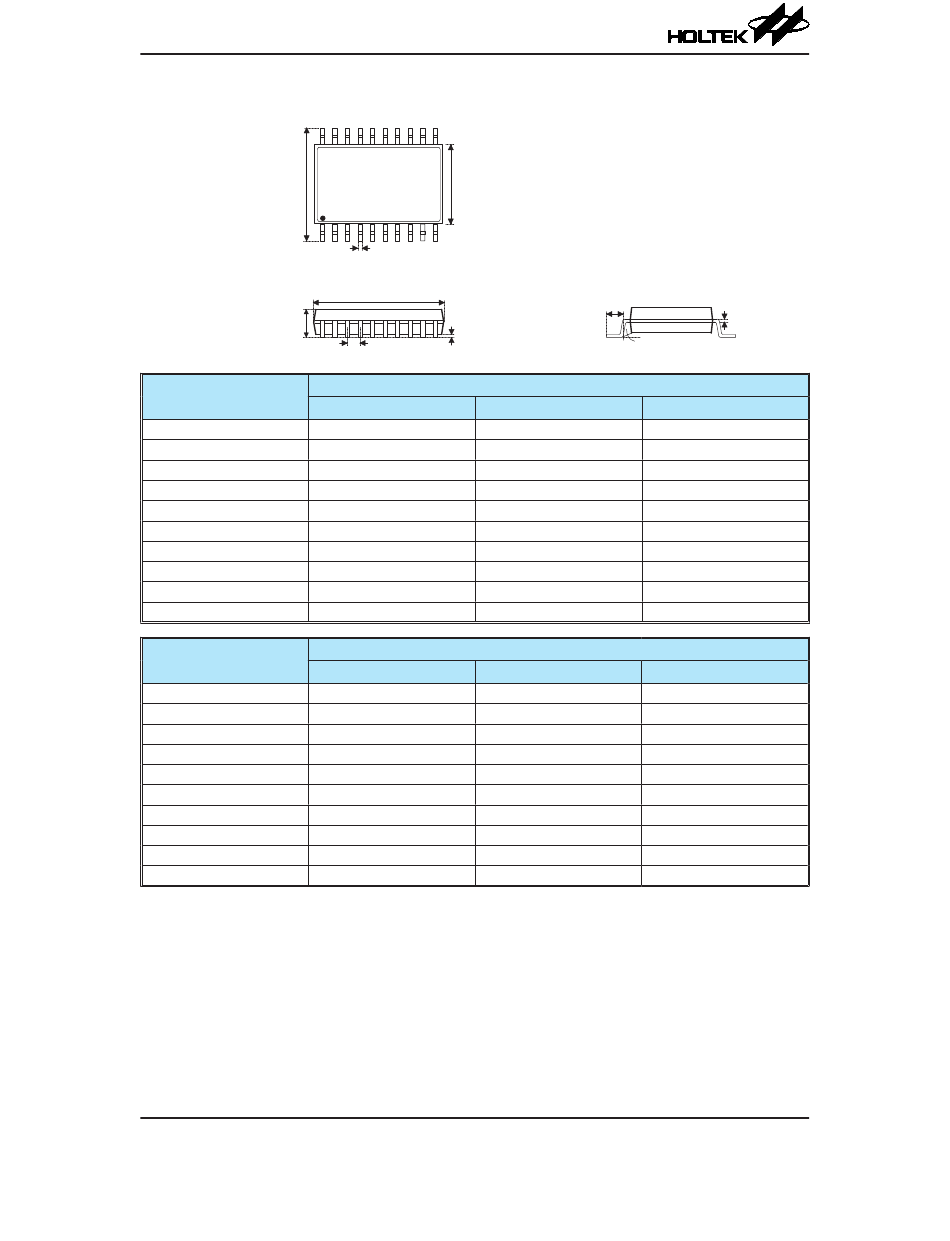

20-pin SOP (300mil) Outline Dimensions

)
,
Symbol
A
B
C
C'
D
E
F
G
H
α
Symbol
A
B
C
C'
D
E
F
G
H
α
Rev. 1.00
*
+
+
- .
Dimensions in inch
Min.
—
—
0.012
—
—
—
0.004
0.016
0.008
0°
Dimensions in mm
Min.
—
—
0.31
—
—
—
0.10
0.40
0.20
0°
189
/
=
Nom.
0.406 BSC
0.295 BSC
—
0.504 BSC
—
0.050 BSC
—
—
—
—
Nom.
10.30 BSC
7.50 BSC
—
12.80 BSC
—
1.27 BSC
—
—
—
—
0
Max.
—
—
0.020
—
0.104
—
0.012
0.050
0.013
8°
Max.
—
—
0.51
—
2.65
—
0.30
1.27
0.33
8°
October 26, 2018
