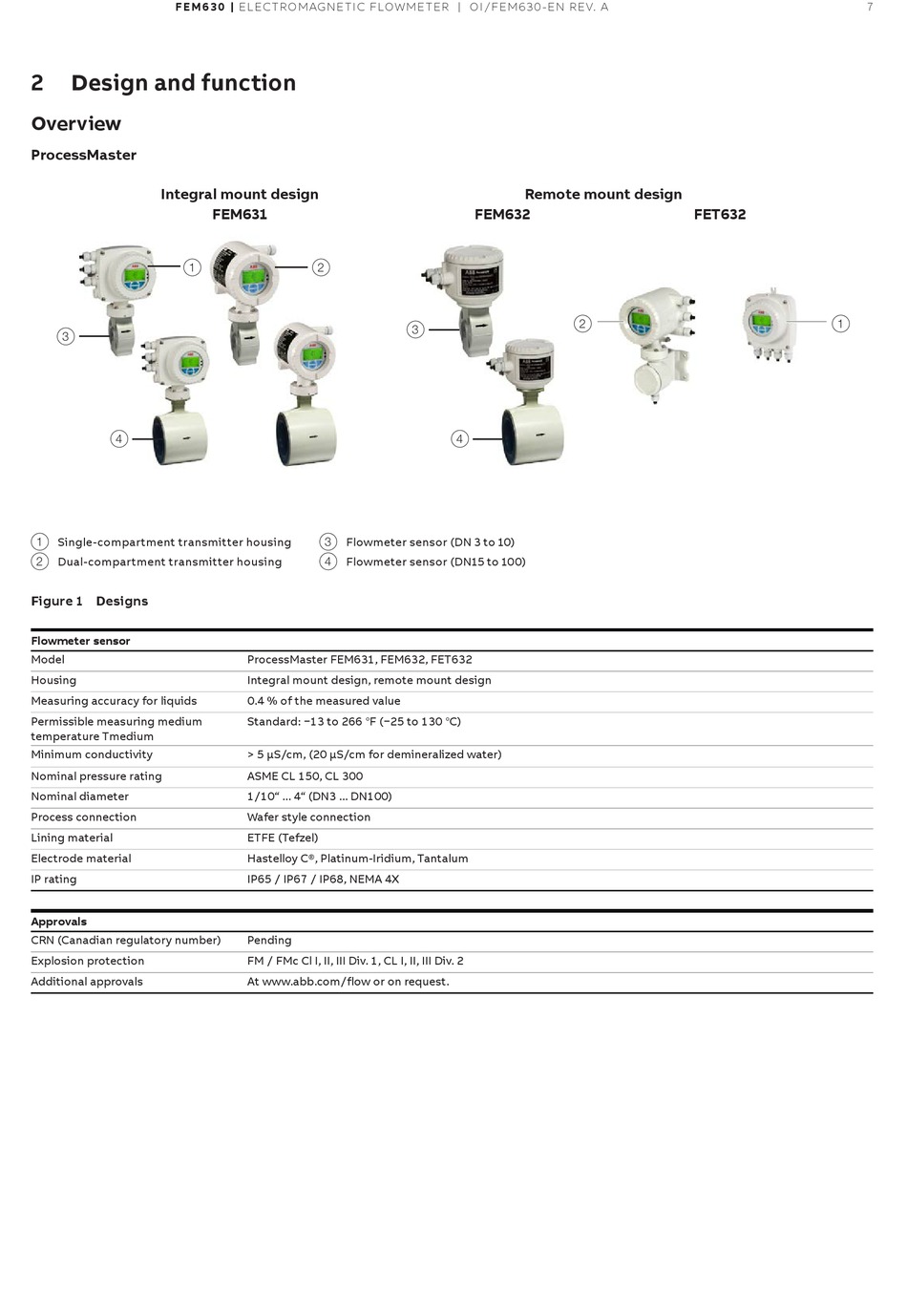

Design and function

Overview

ProcessMaster

Integral mount design
1
3
4
1 Single-compartment transmitter housing
2 Dual-compartment transmitter housing
Figure 1 Designs
Flowmeter sensor
Model
Housing
Measuring accuracy for liquids
Permissible measuring medium
temperature Tmedium
Minimum conductivity
Nominal pressure rating
Nominal diameter
Process connection
Lining material
Electrode material
IP rating
Approvals
CRN (Canadian regulatory number)
Explosion protection
Additional approvals
FEM631
2
3 Flowmeter sensor (DN 3 to 10)
4 Flowmeter sensor (DN15 to 100)
ProcessMaster FEM631, FEM632, FET632
Integral mount design, remote mount design
0.4 % of the measured value
Standard: −13 to 266 °F (−25 to 130 °C)
> 5 µS/cm, (20 µS/cm for demineralized water)
ASME CL 150, CL 300
1/10" ... 4" (DN3 ... DN100)
Wafer style connection
ETFE (Tefzel)
Hastelloy C®, Platinum-Iridium, Tantalum
IP65 / IP67 / IP68, NEMA 4X
Pending
FM / FMc Cl I, II, III Div. 1, CL I, II, III Div. 2
At www.abb.com/flow or on request.
Remote mount design
FEM632
2
3
4
FET632
1
