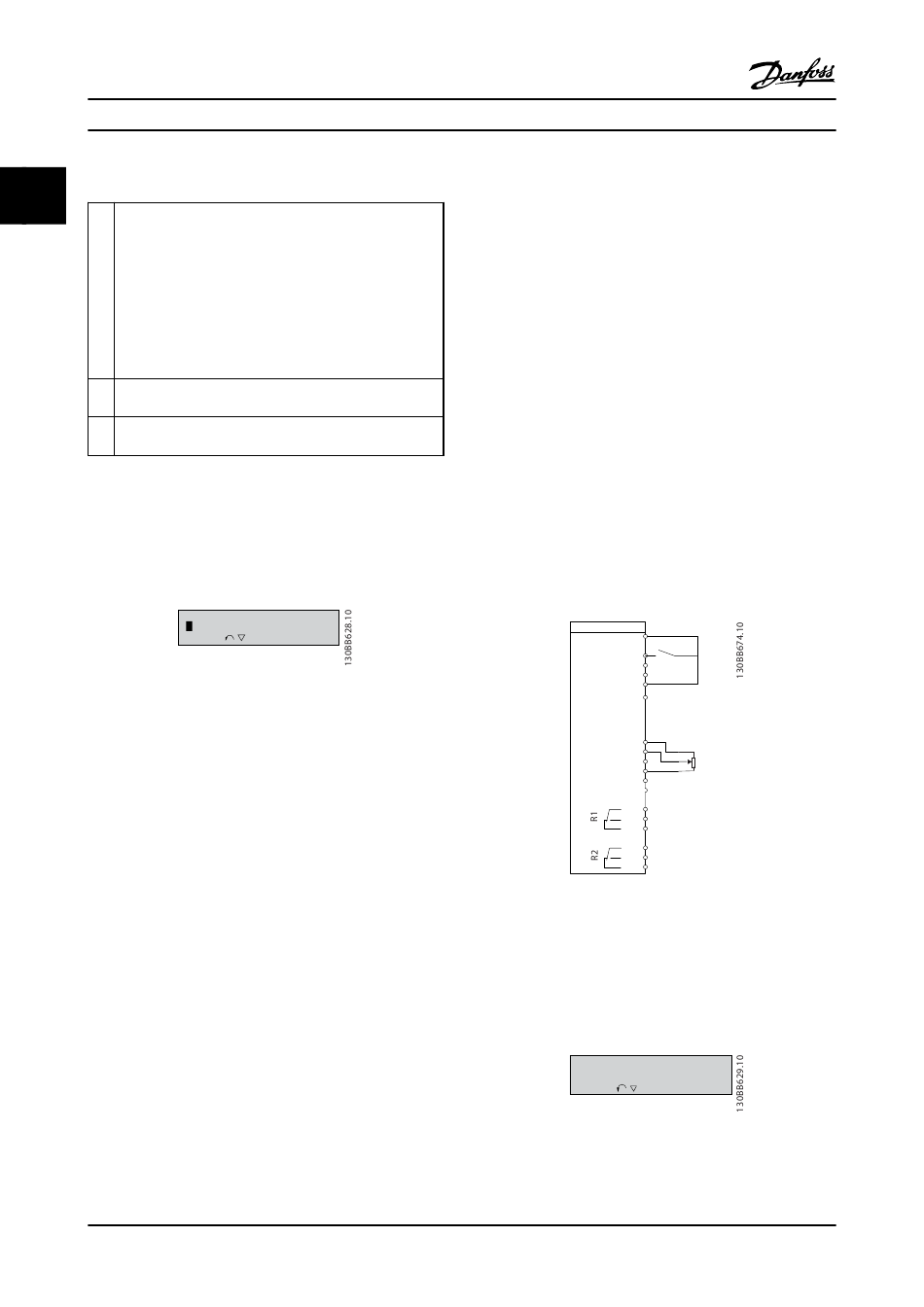

How to Program
D. Operation keys and LEDs
2 2
13 [Hand On]: Starts the motor and enables control of the
adjustable frequency drive via the LCP.
NOTE!
Terminal 27 Digital Input (5-12 Terminal 27 Digital
Input) has coast inverse as default setting. This
means that [Hand On] will not start the motor if
there is no 24 V to terminal 27. Connect terminal 12
to terminal 27.
14 [Off/Reset]: Stops the motor (off). If in alarm mode the
alarm will be reset.
15 [Auto On]: The adjustable frequency drive is controlled
either via control terminals or serial communication.
Table 2.3
At power-up
At the first power-up, the user is asked to choose the
preferred language. Once selected, this screen will never
be shown again in the following power-ups, but the
language can still be changed in 0-01 Language.
Figure 2.2

2.3 Menus

2.3.1 Status

When choosing the [Status] menu it is possible to choose
between the following:
•
Motor Frequency (Hz), 16-13 Frequency;
•
Motor Current (A), 16-14 Motor Current;
•
Motor Speed Reference in Percentage (%),
16-02 Reference %;
•
Feedback, 16-52 Feedback [Unit];
•
Motor Power (kW) (if 0-03 Regional Settings is set
to [1] North America, Motor Power will be shown
in the unit of hp instead of kW), 16-10 Power [kW]
for kW, 16-11 Power [hp] for hp;
•
Custom Readout 16-09 Custom Readout;
2-2
VLT
Select Language
[ 0 ] English
Set-up 1
MG18B222 - VLT
®
HVAC Basic Drive Programming Guide

2.3.2 Quick Menu

Use the quick setup of the adjustable frequency drive to
program the most common VLT HVAC Basic Drive
functions. The [Quick Menu] consists of:
•
Wizard for open-loop applications
•
Closed-loop set-up wizard
•
Motor set-up
•
Changes made
2.3.3 The FC101 Start-up Wizard for Open-
loop Applications
The built-in wizard menu guides the installer through the
set up of the adjustable frequency drive in a clear and
structured manner in order to set up an open-loop
application. An open-loop application is here an
application with a start signal, analog reference (voltage or
current) and optionally also relay signals (but no feedback
signal from the process applied).
Figure 2.3
The wizard will initially be shown after power-up until any
parameter has been changed. The wizard can always be
accessed again through the Quick Menu. Press [OK] to start
the wizard. If [Back] is pressed, the FC 101 will return to
the status screen.
Figure 2.4
®
is a registered Danfoss trademark
FC
+24V 12
DIG IN
18
Start
19
DIG IN
20
COM DIG IN
27
DIG IN
29
DIG IN
+10V
50
+
A IN
53
Reference
A IN
54
COM
55
-
42
A OUT / D OUT 0-10 V
45
A OUT / D OUT
01
02
03
04
05
06
Press OK to start Wizard
Push Back to skip it
Set-up 1
