Programming

6.3 Menus

6.3.1 Status Menu

In the Status menu, the selection options are:
•
Motor frequency [Hz], parameter 16-13 Frequency.
•
Motor current [A], parameter 16-14 Motor current.
•
Motor speed reference in percentage [%],
parameter 16-02 Reference [%].
•
Feedback, parameter 16-52 Feedback[Unit].
•
Motor power parameter 16-10 Power [kW] for kW,
parameter 16-11 Power [hp] for hp. If
parameter 0-03 Regional Settings is set to [1] North
6 6
America, motor power is shown in hp instead of
kW.
•
Custom readout parameter 16-09 Custom Readout.
•
Motor Speed [RPM] parameter 16-17 Speed [RPM].

6.3.2 Quick Menu

Use the Quick Menu to program the most common
functions. The Quick Menu consists of:
•
Wizard for open-loop applications. See
Illustration 6.4 for details.
•
Wizard for closed-loop applications. See
Illustration 6.5 for details.
•
Motor set-up. See Table 6.6 for details.
•
Changes made.
The built-in wizard menu guides the installer through the
set-up of the frequency converter in a clear and structured
manner for open-loop applications, closed-loop
applications, and quick motor settings.

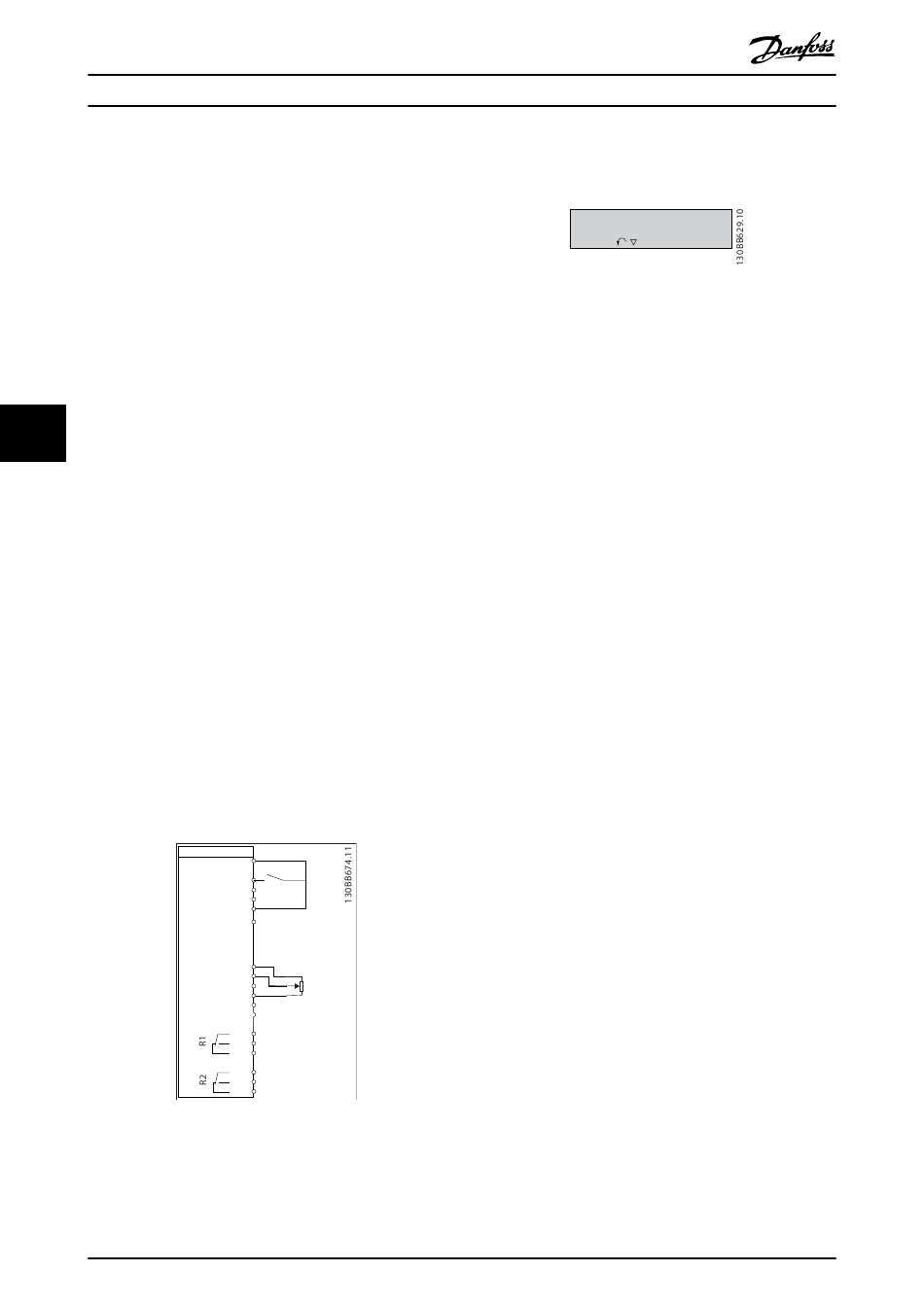

Illustration 6.2 Frequency Converter Wiring
The wizard is displayed after power-up until any parameter
has been changed. The wizard can always be accessed
64
VLT
FC
12
+24 V (OUT)
DIG IN
18
Start
19
DIG IN
20
COM DIG IN
27
DIG IN
29
DIG IN
+10 V (OUT)
50
+
A IN
53
Reference
A IN
54
COM IN/OUT
55
-
42
0–10 V
A OUT / D OUT
45
A OUT / D OUT
01
02
03
04
05
06
Danfoss A/S © 04/2016 All rights reserved.
®
HVAC Basic Drive FC 101
again through the quick menu. Press [OK] to start the
wizard. Press [Back] to return to the status view.
Illustration 6.3 Start-up/Quit Wizard
Press OK to start Wizard
Push Back to skip it
Setup 1
