How to Program
D. Operation keys and LEDs
13 [Hand On]: Starts the motor and enables control of the
adjustable frequency drive via the LCP.
14 [Off/Reset]: Stops the motor (Off). If in alarm mode, the
alarm is reset.
15 [Auto On]: The adjustable frequency drive is controlled
either via control terminals or serial communication.
Table 6.3 Legend to Figure 6.1

6.3 Menus

6.3.1 Status Menu

6 6
In the Status menu, the selection options are:
•
Motor Frequency [Hz], 16-13 Frequency
•
Motor Current [A], 16-14 Motor current
•
Motor Speed Reference in Percentage [%],
16-02 Reference [%]
•
Feedback, 16-52 Feedback[Unit]
•
Motor Power [kW] (if 0-03 Regional Settings is set
to [1] North America, Motor Power is shown in the
unit of hp instead of kW), 16-10 Power [kW] for
kW, 16-11 Power [hp] for hp
•
Custom Readout 16-09 Custom Readout

6.3.2 Quick Menu

Use the Quick Menu to program the most common VLT
HVAC Basic Drive functions. The Quick Menu consists of:
•
Wizard for open-loop applications
•
Closed-loop set-up wizard
•
Motor set-up
•
Changes made
74
Design Guide
6.3.3 Start-up Wizard for Open-loop
The built-in wizard menu guides the installer through the
set-up of the adjustable frequency drive to an open-loop
application. An open-loop application is here an
application with a start signal, analog reference (voltage or
current) and optionally also relay signals (but no feedback
signal from the process applied).
The wizard is initially shown after power-up until any
parameter has been changed. The wizard can always be
accessed again through the Quick Menu. Press [OK] to start
the wizard. Press [Back] to return to the status screen.
®
Danfoss A/S © Rev. 2014-01-14 All rights reserved.
Applications
FC
12
+24V
DIG IN
18
Start
19
DIG IN
20
COM DIG IN
27
DIG IN
29
DIG IN
+10V
50
A IN
53
A IN
54
COM
55
42
A OUT / D OUT
45
A OUT / D OUT
01
02
03
04
05
06

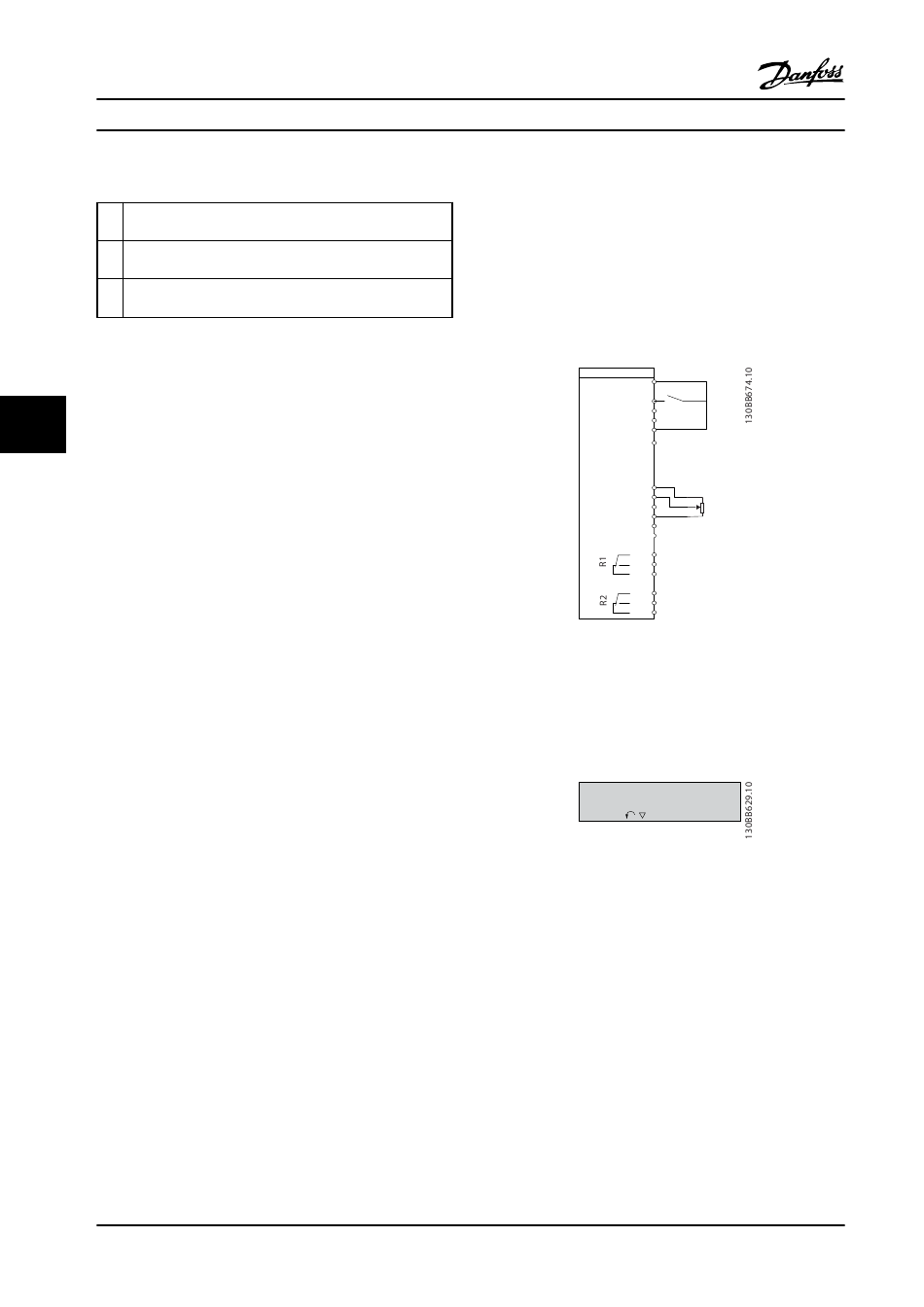

Figure 6.2 Set-up of the Adjustable Frequency Drive
Press OK to start Wizard
Push Back to skip it
Set-up 1
Figure 6.3 Wizard
+
Reference
-
0-10 V
