– W clock: weekly clock page. For further infor-
mation, see paragraph "13.1.5. Weekly clock" on
page 163.
– Custom x: custom x page. For further information,
see chapter "5. Custom pages" on page 91.
• Number of clocks: field where you can specify the
maximum number of asynchronous weekly clocks
(1...4), using the virtual keyboard.
• ACK: determines ACK behaviour (acknowledgement).
There are 2 possible behaviours: ACK always possible
or ACK only possible without alarms.
ACK can be used, for example, to confirm having
viewed an alarm and reset its display.
PB UM: defines the proportional band unit of measure
that can be in tenths of a degree or range percentage
(where the bottom of the scale is defined as the differ-
ence between the HIS and LOS parameters).
• Saving on internal disk and SD card: if this option is
active, you have the security of double saving, on the
internal disk and the SD card.
To change the current parameter settings, touch the rele-
vant key.
To switch to Program configuration page 2, where pro-
gram permission levels are set, simply touch its number or
use the keyboard and
To change a settings, simply touch the relevant field. The
available parameters are:
• Program read: determines whether programs are par-
tially or fully read. In partial reading, only the tempera-
ture profile, made up of segments with name, setpoint,
alarms and HBB tied to the step, is read. The "basic
programme" parameters remain the same as in the
basic programmes for each zone (CFG_ZONE_n), as
do the reporting parameters.
• Template ON/OFF: determines template on mode
where all programs are derived from the reference
program called TEMPLATE. For further information on
templates, see paragraph "7.2. Building programs with
default segments (TEMPLATE)" on page 106.
• Decimal mark, comma/dot: determines the decimal
separator choice: comma or dot.
• Program commands visibility: determines whether
START, STOP, PAUSE and SKIP commands are visible
from the programmer home page.
• Controller: datalog vis: determines access to the DAT-
ALOG page. The possibilities are: always visible (ON) or
visible at level 2 only.
• Segment setpoint visibility: at level 0 and 1, deter-
mines visibility of setpoints for each segment in the
programme, during programme creation. SPs may be
80703B_MHW_2850T/3850T_02-2019_ENG
keys.
changed when you go into the step configuration page.
• No. visible prog: determines the number of programs
visible to the user (from 1 to 4 for model 2850T and
from 1 to 8 for model 3850T).
• Key disable: possibility of disabling physical keys by
simultaneously pressing the
the indicated amount of seconds (0 = physical keys en-
abled).This key lock only works in the GetView pages,
and locks users in customized pages so that they can
only get out of them with the appropriate link and get
back into them with the physical button returning to
GetView.
• Monitor page access: determines the minimum ac-
cess level required to open the "monitor" menu.
• Service page access: determines the minimum ac-
cess level required to open the "service" menu.
• Setup page access: determines the minimum access
level required to open the "setup" menu.
• Prog reading lev: determines minimum user level for
loading and executing programmes. At 0, these opera-
tions can be performed by users with a minimum level
of 0, while with 1 the user must be at least level 1.
• Prog creation lev: determines the minimum user level
to create programs. With 0, user level 0 can create
programs, with 1, user level 1 can create them.
To open page 1, simply touch its number or use the key-
board and keys.

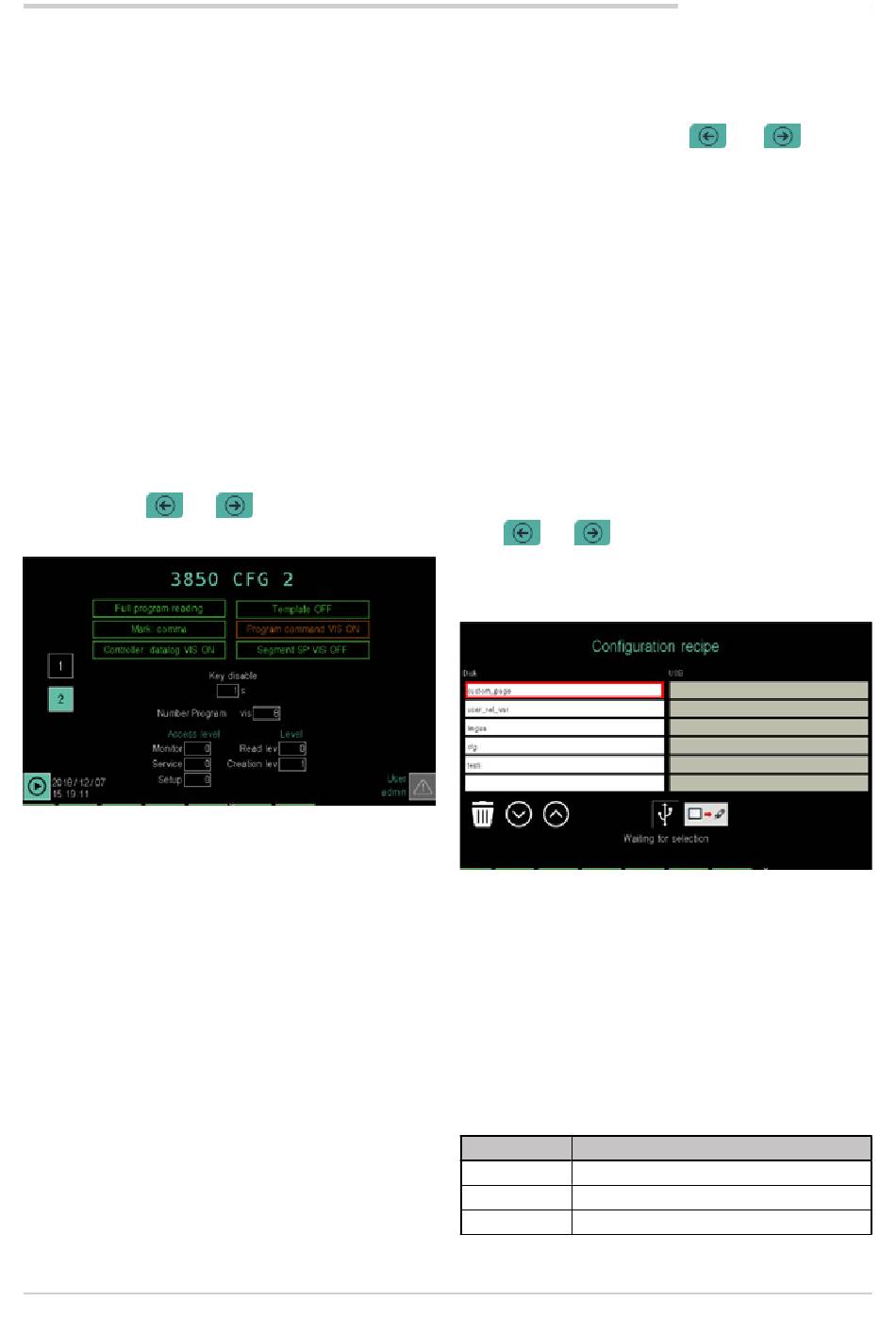

4.15.3.2. SETUP MGR

The Configuration recipe page lets you transfer configu-
rations from the controller to a USB key and vice versa, or
delete them. This way, you can clone a typical configuration
on other controllers or make a back-up copy of the current
configuration, to be safe or as a precaution before changing
the running configuration.
The column on the left lists the configuration files saved in
the controller, the one on the right the configuration files in
the USB key.
The various configurations are stored in files with standard
names, listed in the following table.
File name Content
user_var_ret Retentive system memory
language Translatable strings
text Non-translatable strings
