4.14.4. PROGRAM CLOCK sub-menu

To use this submenu, the user must be level 1 or 2.
The PROGRAM CLOCK submenu may be used to create
and manage weekly clocks for controlling automatic oper-
ations undertaken on the basis of the time and day of the
week.
Each clock acts on the "virtual functions" alarm_clkn_cmd1
and alarm_clkn_cmd2, where n is the selected clock num-
ber, from 1 to 4:
The PROGRAM CLOCK sub-menu allows you to create and
manage weekly clocks to automatically turn the controller
on and off.
Each clock operates on two "virtual functions":
• alarm_clkn_cmd1 to turn on and
• alarm_clkn_cmd2 to turn off,
where n is the selected clock number.
These functions can be used in logical functions to start a
program or to perform any other action, such as command-
ing a siren, raising or lowering a digital output, etc.The two
variables remain high for one second from time on which
they were set, to permit interception.
For each day of the week you can set a power-on and one-
off time. The time is entered as hour and minute; the time is
24 hour format.
Power off can be before power on. Switching on and off
can also take place on different days, meaning you can
turn on the controller and leave it on for a few days before
turning it off.
You can enable multiple weekly clocks at the same time.
This way you can have more than one on and off operation
on the same day. The maximum number of weekly clocks
that can be enabled simultaneously is 4.

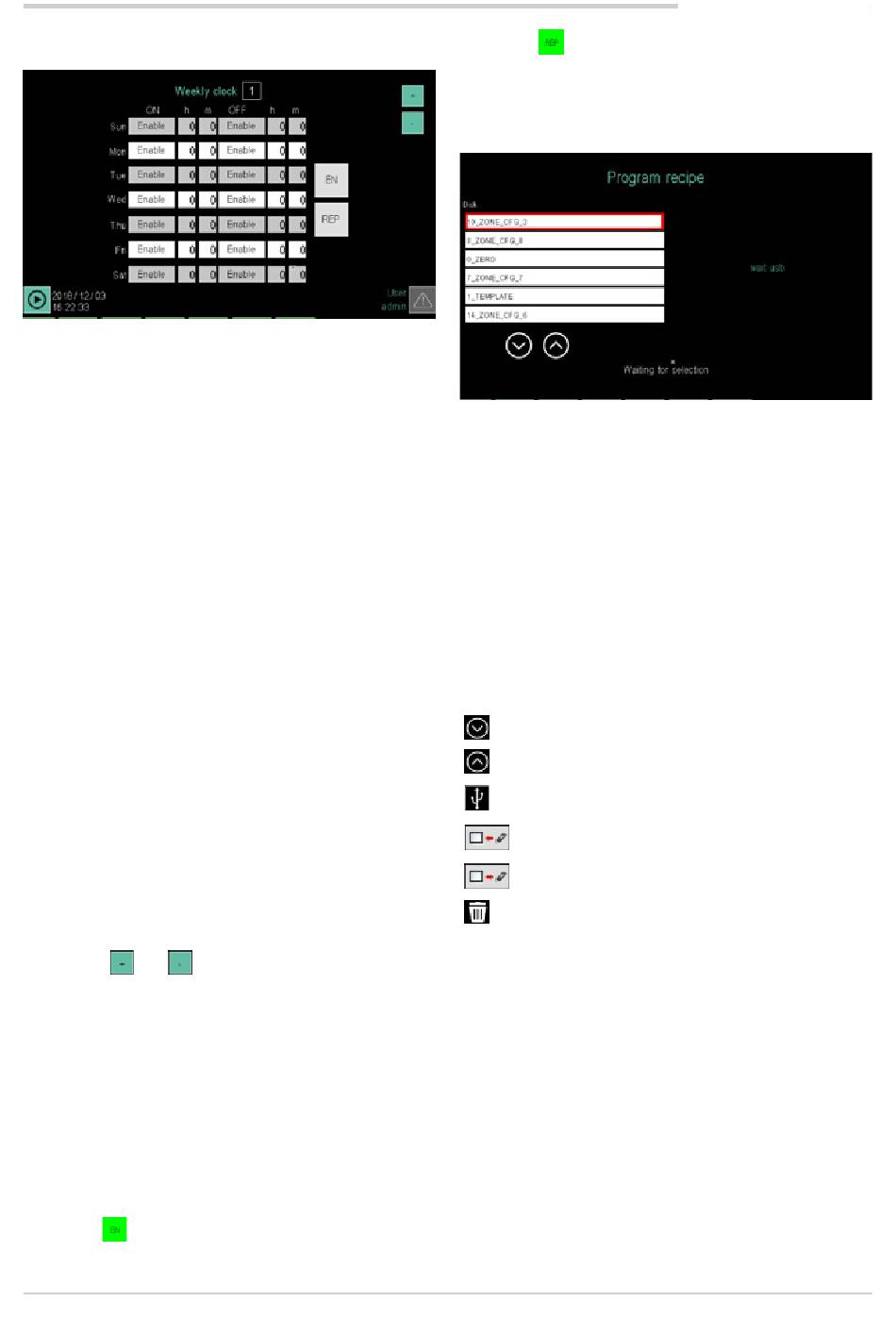

The buttons and
clock, whose identification number appears at the top.
The first 3 columns on the left are related to on operations
(ON), the remaining 3 to off (OFF). Each row corresponds to
a day of the week.
To set a time, touch the h and m fields related to the oper-
ation and the day that interests you. Then enter with the
virtual keyboard that appears, the time and minutes you
want.
To enable an on or off operation, touch its Enable label:
it will turn green to indicate that the operation has been
enabled. To disable an operation, touch its green Enable la-
bel: the color change will indicate that it has been disabled.
The button enables and disables the entire weekly
clock (green = enabled, grey = disabled).
80703B_MHW_2850T/3850T_02-2019_ENG
allow you to select the weekly
The button enables and disables the weekly repetition
of the clocks (green = enabled, grey = disabled).

4.14.5. PROGRAMS MGR sub-menu

To use this submenu, the user must be level 1 or 2.
The PROGRAMS MGR sub-menu allows you to transfer
programs from a USB key to the controller and vice versa,
or erase them.
Some programs, such as ZERO, TEMPLATE and CFG_
ZONE_n, can not be erased from the internal disk, as they
are indispensable for instrument operations.
By inserting the USB key, the left column lists the recipes
stored in the controller, the right one containing the recipes
in the USB key.
To select a recipe just touch its name; the contour of the
corresponding row is highlighted.
The icons and buttons are used to:
Scroll down the list.
Scrolls the list upwards.
Indicates that a USB key is connected to the
controller.
It transfers the selected image from the USB key
to the controller memory.
Moves the selected image from the controller
memory to the USB key.
Deletes the selected image in the list above.
4. CONFIGURATION
