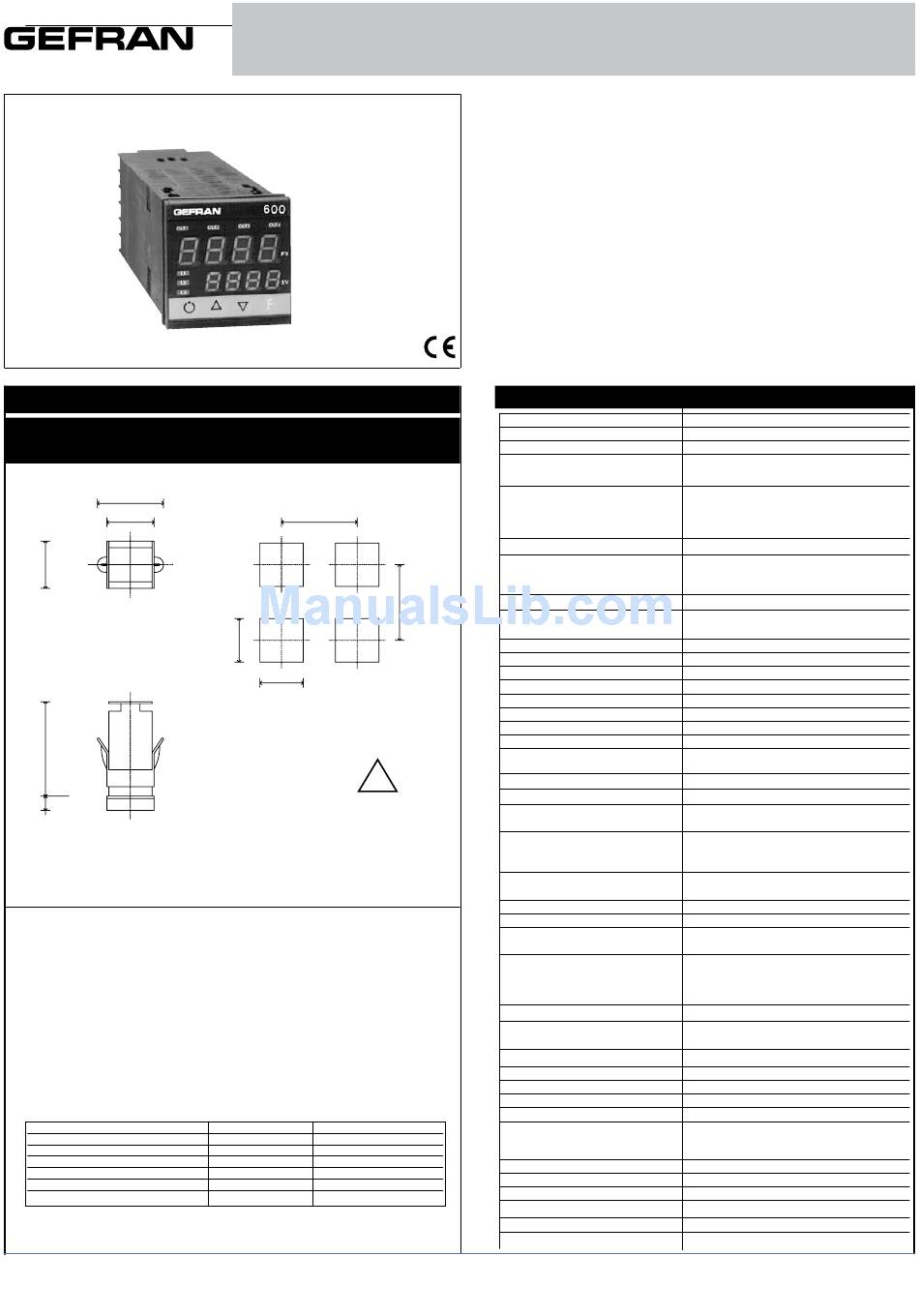

1 • INSTALLATION

• Dimensions and cut-out; panel mounting

63
48
48
99
10
To fix the unit, insert the brackets provided into the seats on either side of the case.
To mount two or more units side by side, respect the cut-out dimensions shown in the drawing.
CE MARKING: The instrument conforms to the European Directives 2004/108/CE and
2006/95/CE with reference to the generic standards: EN 61000-6-2 (immunity in industrial
environment) EN 61000-6-3 (emission in residential environment) EN 61010-1 (safety).
MAINTENANCE: Repairs must be done only by trained and specialized personnel.
Cut power to the device before accessing internal parts.
Do not clean the case with hydrocarbon-based solvents (Petrol, Trichlorethylene, etc.). Use of
these solvents can reduce the mechanical reliability of the device. Use a cloth dampened in
ethyl alcohol or water to clean the external plastic case.
SerVICE: GEFRAN has a service department. The warranty excludes defects caused by any
use not conforming to these instructions.
EMC conformity has been tested with the following connections
FUNCTION
Power supply cable
Relay output cable
Digital communication wire
C.T. connection cable
TC input
Pt100 input
80336L_MHW_600_07-2011_ENG

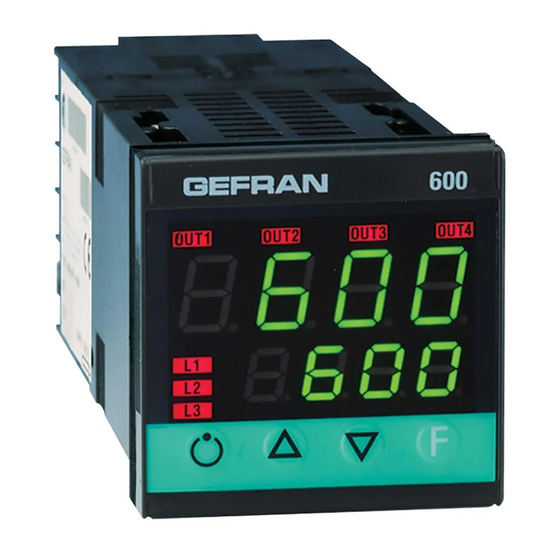

600
CONTROLLER
70
45
45
For correct and safe installation, follow
the instructions and observe the warnings
contained in this manual.
Panel mounting:
CABLE TYPE LENGTH
1 mm 1 m
2
1 mm 3,5 m
2
0,35 mm 3,5 m
2
1,5 mm 3,5 m
2
0,8 mm compensated 5 m
2
1 mm 3 m
2
USER'S MANUAL
SOFTWARE VERSION 4.0x
code 80336L / Edition 15 - 07/2011
Display
Keys
Accuracy
Main input (settable digital filter)
Type TC Thermocouples
(ITS90)
Cold junction error
RTD type (scale configurable within indicated
range, with or without decimal point) (ITS90)
Max line resistance for RTD
70
Ptc type / NTC Type
Safety
°C / °F selection
Linear scale ranges
Controls
pb - dt - it
Action
Control outputs
Maximum power limit heat / cool
Cycle time
Main output type
!
Softstart
Fault power setting
Automatic blanking
Configurable alarms
Alarm masking
Type of relay contact
Logic output for static relays
Triac output
Digital Insulated Output
Transmitter power supply
Analogue retransmission signal
Logic inputs
Serial interface (optional)
Baude rate
Protocol
Optional ammeter input
Power supply (switching type)
Faceplate protection
Working / Storage temperature range
Relative humidity
Environmental conditions of use

Installation

Weight
2 • TECHNICAL SPECIFICATIONS
2x4 digit green, high display 10 and 7mm
4 of mechanical type (Man/Aut, INC, DEC, F)
0.2% f.s. ±1 digit ambient temperature 25°C
TC, RTD, PTC, NTC
60mV,1V Ri≥1MΩ; 5V,10V Ri≥10KΩ; 20mA Ri=50Ω
Tempo di campionamento 120 msec.
Type TC Thermocouples : J,K,R,S,T (IEC 584-1,
CEI EN 60584-1, 60584-2) ; custom linearization
is available / types B,E,N,L GOST,U,G,D,C are
available by using the custom linearization.
0,1° / °C
DIN 43760 (Pt100), JPT100
20Ω
990Ω, 25°C / 1KΩ, 25°C
detection of short-circuit or opening of probes,
LBA alarm, HB alarm
configurable from faceplate
-1999 to 9999 with configurable decimal point position
PID, Self-tuning, on-off
0,0...999,9 % - 0,00...99,99 min - 0,00...99,99 min
Heat / Cool
on / off, continuous
0,0...100,0 %
0...200 sec
relay, logic, continuous (0...10V Rload ≥ 250KΩ,
0/4...20mA Rload ≤ 500Ω)
0,0...500,0 min
-100,0...100,0 %
Displays PV value, optional exclusion
Up to 3 alarm functions assignable to an output,
configurable as: maximum, minimum, symmetrical,
absolute/deviation, LBA, HB
- exclusion during warm up
- latching reset from faceplate or external contact
NO (NC), 5A, 250V/30Vdc cosϕ=1
24V ±10% (10V min at 20mA)
20...240Vac ±10%, 1A max
Snubberless, inductive and resistive load I
optoinsulated MOS output 1500V
equivalent to NO contact
Vmax 40Vac/Vdc I
Load ON max 0,8Ω
15/24Vdc, max 30mA short-circuit protection
0...10V Rload ≥ 250KΩ, 0/4...20mA Rload ≤ 500Ω
resolution 12 bit
Ri = 4,7KΩ (24V, 5mA) or no-voltage contact
RS485, isolated
1200, 2400, 4800, 9600, 19200
Gefran CENCAL / MODBUS
T.A. 50mAac, 50/60Hz, Ri = 10Ω
(std) 100 ... 240Vac ±10%
(opt.) 11...27Vac/dc ±10%;
50/60Hz, 8VA max
IP65
0...50°C / -20...70°C
20 ... 85% non-condensing
for internal use only, altitude up to 2000m
Panel, plug-in from front
160g for the complete version
t = 128A s
2 2
rms
100mA
max
1
