Smatrix Base PRO
If the zone is setup as Smatrix Base PRO, individual
CZ
room control in the zone is enabled via an integrated
Uponor Smatrix Base PRO system. The supply
temperature setpoint is calculated using sensor data and
DE
current mode from the Base PRO system.
The outdoor temperature sensor is connected to the
DK
Base PRO system via a thermostat, registered as a
system device. The thermostat is preferably placed in a
non-public area such as a technical room. The outdoor
EE
temperature sensor data will also be used by the other
zones.
This requires the Move PRO controller to be connected
ES
to a Smatrix Base PRO bus.
Domestic Hot Water
FI
If the zone is setup as Domestic Hot Water, hot
water regulation is enabled in the zone. The supply
FR
temperature setpoint is set in the Move PRO controller
display.
N O T E !
HR
If the zone is setup as Domesitc Hot Water
without a return sensor, the zone will work
with reduced functionality. Functions such
HU
as BoostPower and hot water recirculation
requires a return sensor to work properly.
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
6
Meltaway
If the zone is setup as Meltaway, snow melting
(keeping large areas clear of snow) is enabled in the
zone. The supply temperature setpoint is calculated
using an outdoor sensor, a ground temperature sensor,
and a ground moisture sensor.
When to start or stop snow melting (status: Stop,
Idle or Meltaway) is determined by using an outdoor
temperature sensor and two Uponor Smatrix Move PRO
Sensor Snow S-158 sensors. One of S-158 sensors is
used for measuring the ground temperature and the
other one is used for measuring the ground moisture
level.
The return temperature sensor is used to calculate the
difference between the supply and return temperature
and tripps an alarm if the difference is too high.
The primary return sensor is used to protect the heat
source from too low return temperatures.
3.2

Example of a system

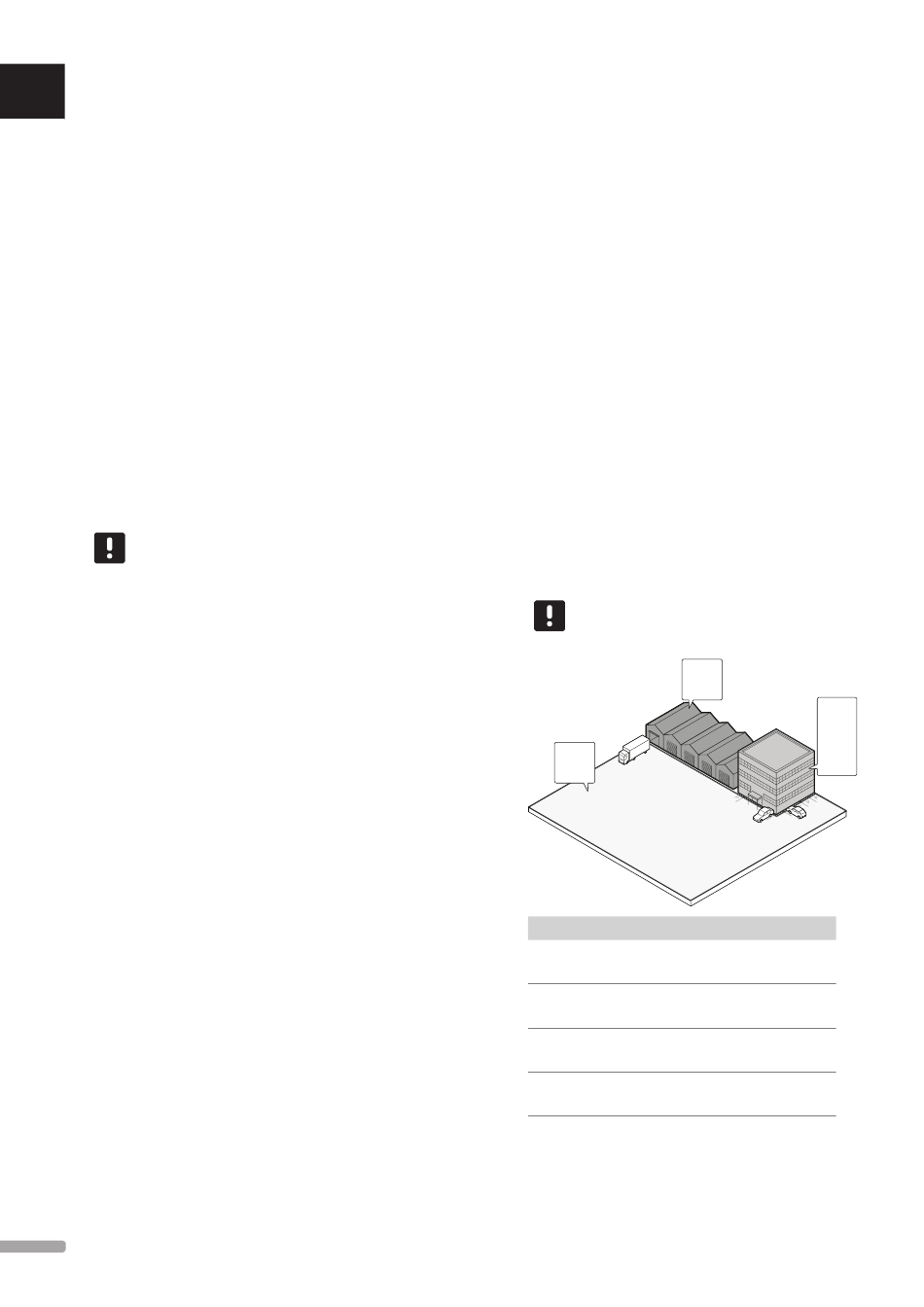

The illustration below shows a property divided into
different zones. All zones are controlled by the Uponor
Smatrix Move PRO.
N O T E !
This is an example. The Move PRO controller
can be setup in a wide array of combinations.
4
Zone Description
1 The zone (heating in an office building) is setup as
Smatrix Base PRO.
2 The zone (domestic hot water production) is setup
as Domestic Hot Water.
3
The zone (underfloor heating in a warehouse) is
setup as Stand Alone Control.
4
The zone (keeping a parking lot and a large court
yard clear of snow) is setup as Meltaway.
U P O N O R S M AT R I X M O V E P R O · I N S TA L L AT I O N A N D O P E R AT I O N M A N U A L
3
1
2
