10.2 Technical specifications

CZ
Cables
Cable from controller to valve actuator
(shielded connected to ground)
DE
Cable to sensor input on controller
(shielded connected to ground)
Cable from output on controller to
external devices
DK
Communication cable
Power cable
EE

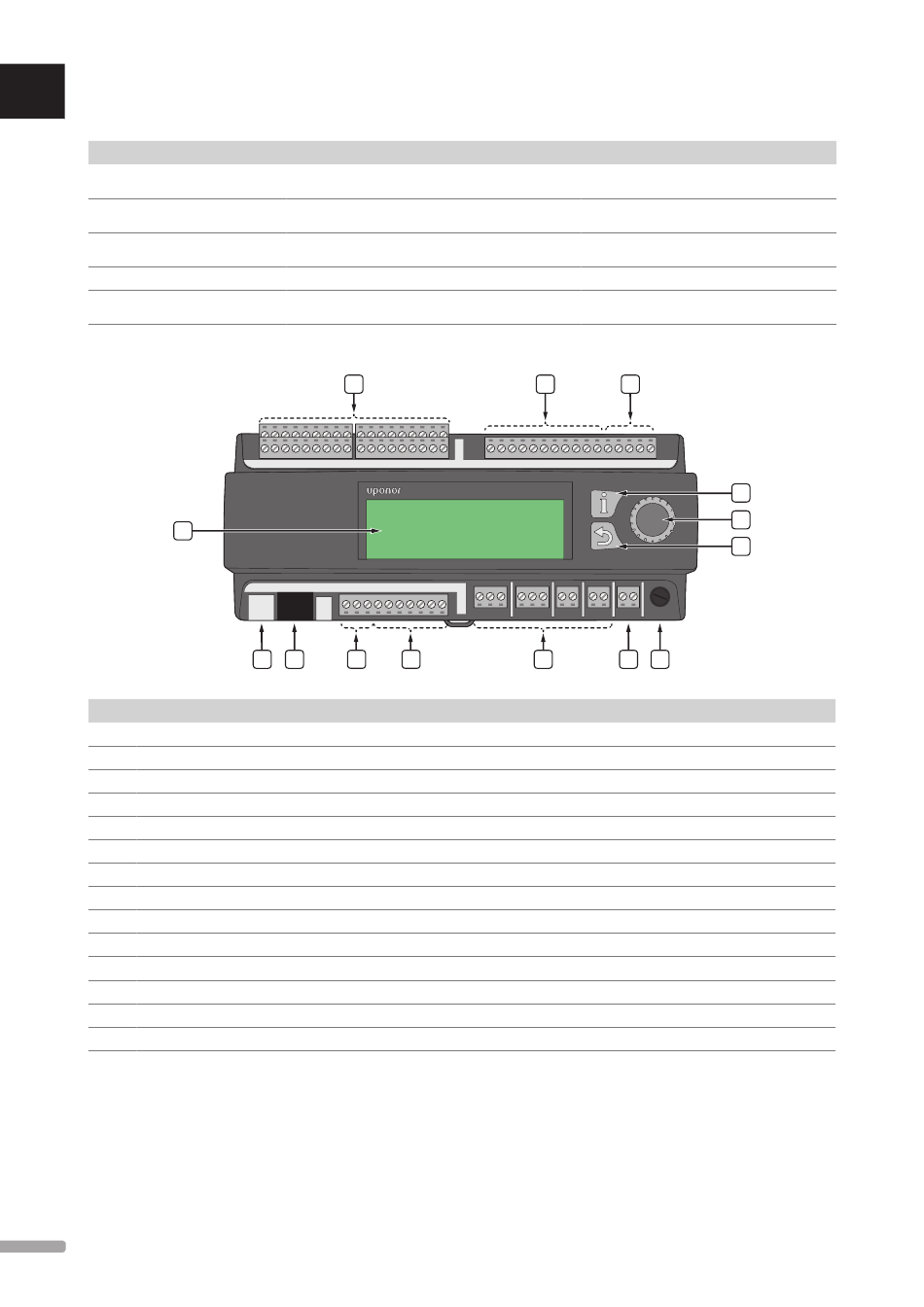

10.3 Controller layout

ES
FI
FR
A
HR
HU
IT
LT
Item Description
A Display
B Sensor input connection terminals
LV
C Mixing valve output connection terminals
D Battery and transformer input connection terminals
NL
E microSD
F BMS, MODBUS-RTU (RS-232), connection
NO G Uponor Smatrix Base PRO bus connection terminals
H Snow and ice sensor output connection terminals
I Circulation pump output connection terminals
PL
J Power connection connection terminal
K Fuse (125 mA)
PT
L Information button
M Navigation wheel/ OK button
N Back button
RO
RU
SE
SK
1 2 0
Standard cable length
0.75 m
5 m
5 m
-
2 m
B
E F G H
Maximum cable length Wire gauge
20 m 0.2 mm² to 1.5 mm²
100 m 0.6 mm²
Up to 4.0 mm² solid, or 2.5 mm² flexible with
20 m
ferrules
5 m 0.5 mm² to 2.5 mm²
20 m Up to 4.0 mm² solid, or 2.5 mm² flexible with
ferrules
