Information Button; Main Menu - Uponor Smatrix Move PRO Installation And Operation Manual

EN
7.5

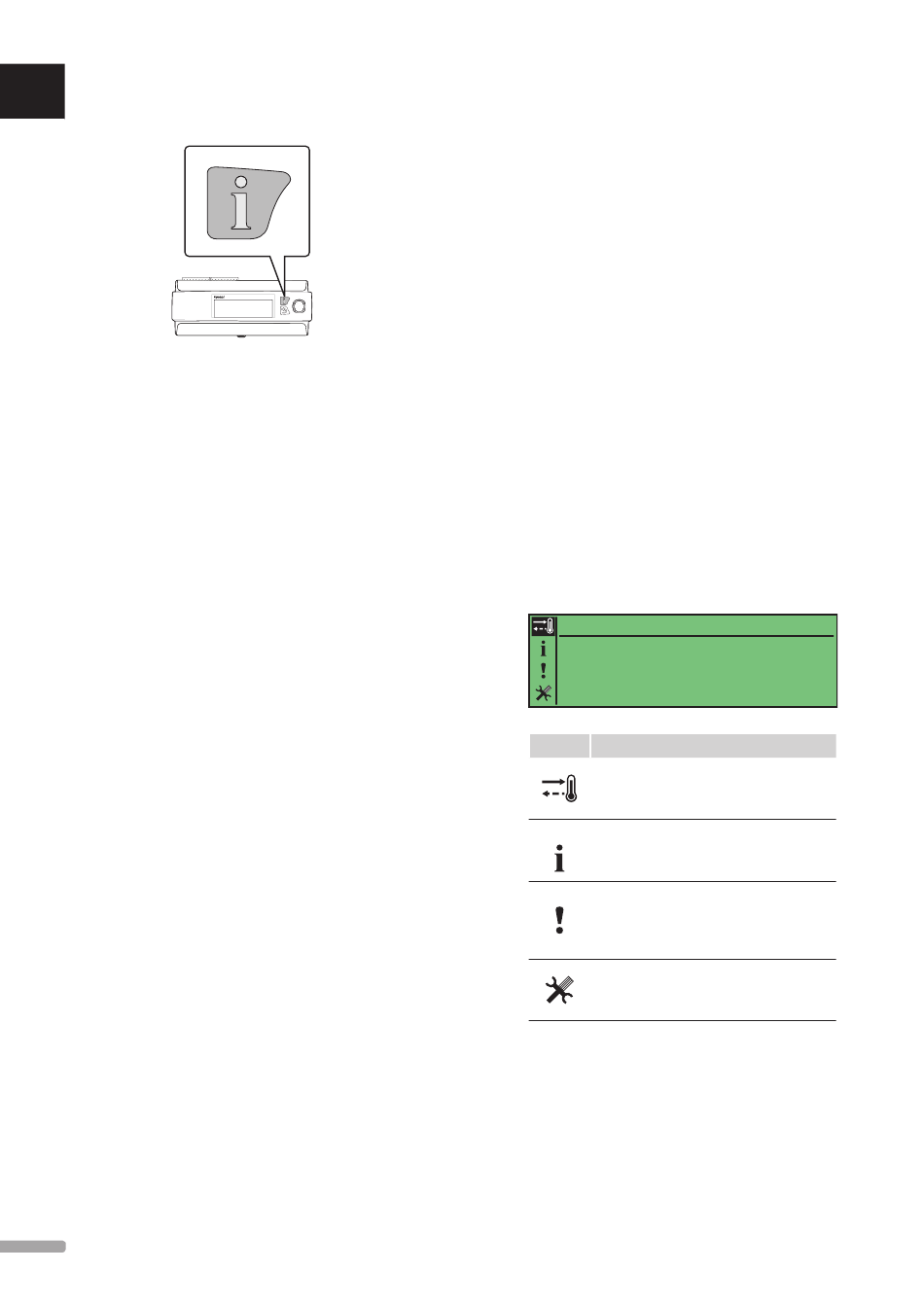

Information button

CZ
DE
DK
EE
The information button can be pressed anytime to get
ES
instant access to a summary of current information in
the zones. Press the button several times to toggle
between the different zones. Press the back button to
FI
return to the menu system.
s a C
tand lone ontrol
FR
The following information is shown if the zone is setup
as Stand Alone Control.
• Supply Temperature (current supply temperature)
HR
• Indoor Temperature (current indoor temperature in
the reference room, requires a room temperature
HU
sensor, and Heating Mode set to Outdoor +
Indoor comp.)
• Outdoor Temperature (current outdoor temperature)
IT
• Pump (status)
• Mixing valve (status)
LT
s B Pro
matrix ase
The following information is shown if the zone is setup
LV
as Smatrix Base PRO.
• Supply Temperature (current supply temperature)
NL
• Indoor Temperature (current indoor temperature,
worst case or average temperature from integrated
Smatrix Base PRO system is used, Heating Mode
NO
set to Outdoor + Indoor comp., and there is a
heating/cooling demand in the Smatrix Base PRO
system).
PL
• Outdoor Temperature (current outdoor temperature)
• Mixing valve (status)
PT
RO
RU
SE
SK
3 8
d H
omestiC ot
The following information is shown if the zone is setup
as Domestic Hot Water.
• Supply Temperature (current supply temperature)
• Pump (status)
• Mixing valve (status)
m
eltaWay
The following information is shown if the zone is setup
as Meltaway.
• Supply Temperature (current supply temperature)
• Outdoor Temperature (current outdoor temperature)
• Status (current meltaway statu:, Stop, Idle, Melting,
Protection)
• Pump (status)
• Mixing valve (status)
7.6

Main menu

The main menu is the base of the menu system,
giving access to 4 different menu alternatives. Use the
navigation wheel to navigate the menus and parameter
settings.
System Overview
Z1 - Supply Temperature
Z2 - Supply Temperature
Z3 - Supply Temperature
Z4 - Supply Temperature
Icon Description
System Overview
- Current outdoor temperature, and supply
temperatures for enabled zones are shown.
Information
- System, zone (enabled zones only) and
controller information are shown in this menu.
Alarms
- Active alarms and alarm history are shown in
this menu. Acknowledge alarms and/or reset
alarm history.
Settings
- System, zone (enabled zones only) and
controller parameters can be set in this menu.
U P O N O R S M AT R I X M O V E P R O · I N S TA L L AT I O N A N D O P E R AT I O N M A N U A L
W
ater
35.5 °C
30.1 °C
18.9 °C
27.4 °C
