Uponor Smatrix Wave X-165 Software Upgrade

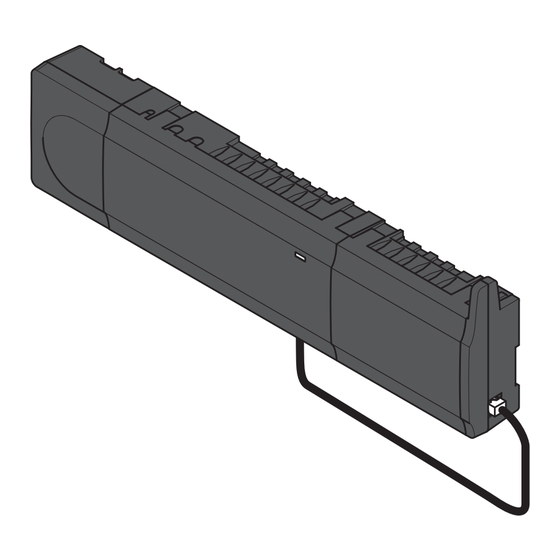

Uponor Smatrix Wave X-165
Room controller Software Upgrade
Safety instructions
Caution!
Do not remove the microSD card while the room
controller is powered on.
Caution!
Make sure the same microSD card is inserted in the
room controller when the upgrade is finished. Otherwise
your installation might stop working.
Caution!
Before starting the room controller upgrade, save a copy
of U_BACKUP.TXT (contains registration information)
from the microSD card to the computer hard drive.
Caution!
Do not have the microSD card inserted in the room
controller when entering registration mode during fault
finding. Otherwise U_BACKUP.TXT will be overwritten.
Note
Make sure to have a microSD adapter or reader handy.
It is needed for to transfer the software to the microSD
card.
Note
If upgrading several room controllers a separate, newly
formatted, microSD card can be used for all room
controllers.
Eject the existing microSD card, upgrade using the
separate card, and reinsert the original microSD card
when done.
Repeat the process for all room controllers.
Preparation
1
3
X165_XYZ.hex
To prepare the upgrade process either use the software supplied by
the local Uponor support, or:
1. Go to the local Uponor website.
2. Locate the upgrade page for Uponor Smatrix Wave, and check if
there are any new upgrades available.
3. Download the latest version of the software.
2
