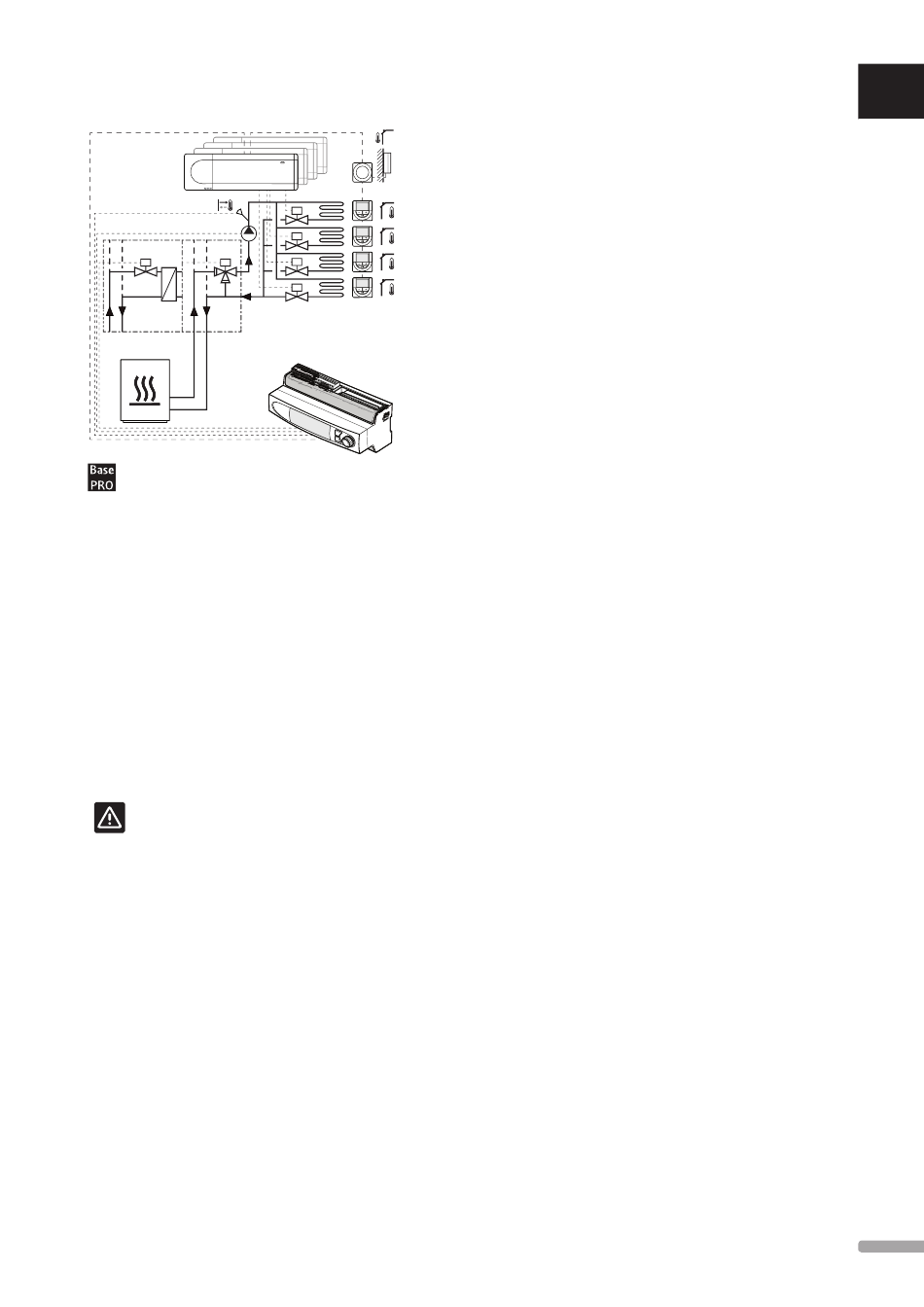

Smatrix Base PRO
A B
If the zone (1 through 4) is setup as Smatrix
Base PRO, individual room control in the zone is
enabled.
The controller is connected to an Uponor Smatrix Base
PRO system, via the Smatrix Base PRO bus, utilising its
components to regulate the zone temperature.
The following components are required for heating
operation in the zone (regulate the zone temperature
using a mixing valve).
• Supply sensor S-152
• Smatrix Base PRO system
The outdoor temperature sensor is connected to the
Base PRO system via a thermostat, registered as a
system device. The thermostat is preferably placed in a
non-public area such as a technical room.
C !
aution
The integration is activated when a zone is
setup as Smatrix Base PRO (requires that
the wiring is done and that Supply Water
Controller is activated in the Integration
menu in the Base PRO interface) in the
startup wizard on the Move PRO controller.
See section 5 Install Uponor Smatrix Move PRO
controller for more information.
U P O N O R S M AT R I X M O V E P R O · I N S TA L L AT I O N A N D O P E R AT I O N M A N U A L
PRO
PRO
SYSTEM SETTINGS IN STARTUP WIZARD
Enable Zone # (# = 1, 2, 3, or 4): Yes
Zone setup: Smatrix Base PRO
Heating Mode: Outdoor (outdoor temperature sensor
only)
Outdoor + Indoor comp. (outdoor
temperature sensor with optional room
temperature sensor)
Smatrix Indoor Temperature: Worst Case (the
measured worst case temperature in the zone), or
Average (the calculated average temperature in the
zone).
Assign Controller to zone: Assign connected Smatrix
Base PRO controllers to zones.
Other zone settings can be found in the menu system
Settings > Zone # Setting (where # is the zone where
Smatrix Base PRO is activated).
See section 5.13 Startup wizard for more information.
See section 7.10 Settings for more information.
