Summary of Contents for Uponor X-80

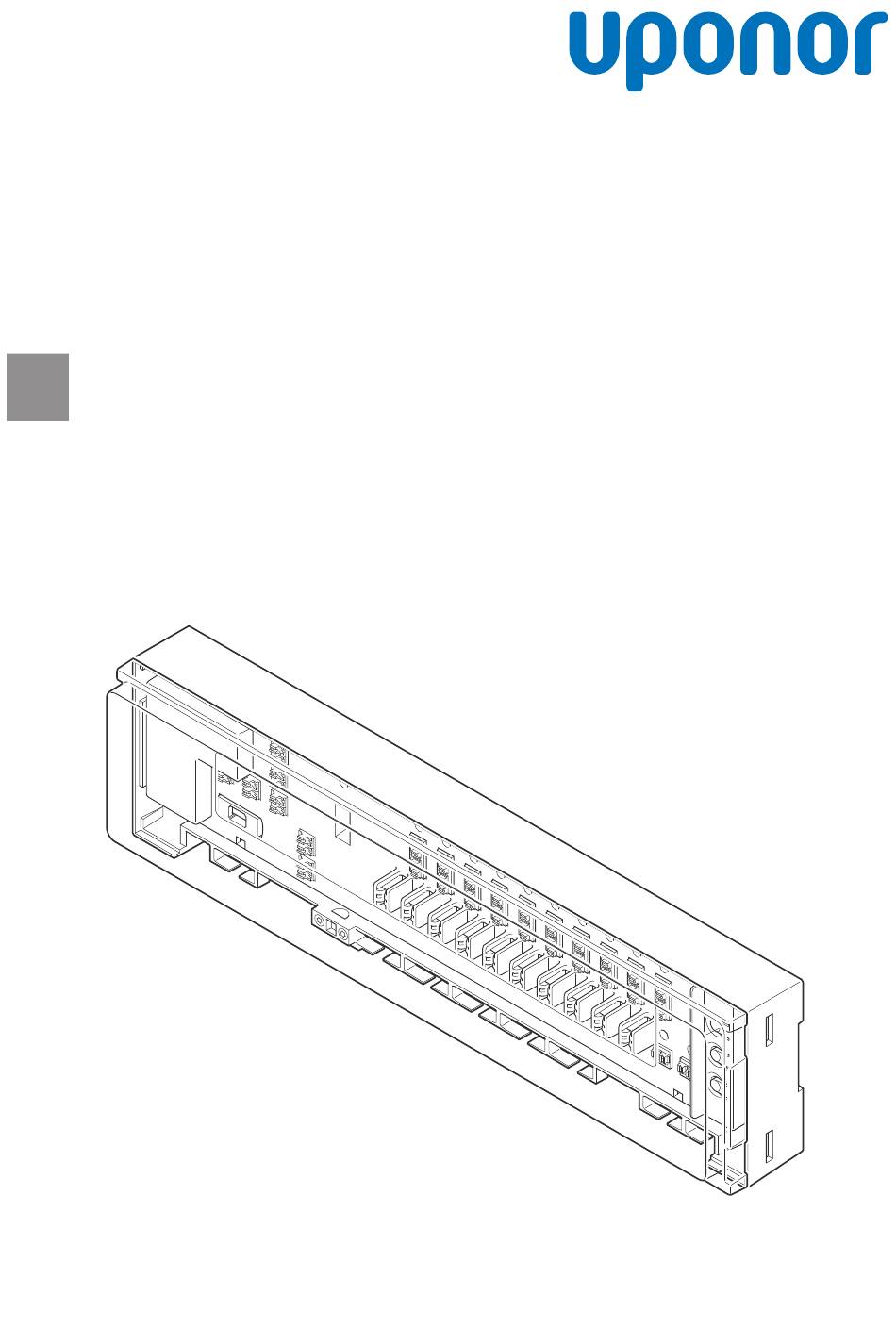

- Page 1 Uponor Base controller H/C pump X-80 10x 230V Operation manual CD0000610...
-
Page 2: Table Of Contents
Change back to run mode............. 18 Cooling setup mode............19 Change from run mode to cooling setup mode..... 19 Enable/disable cooling setup mode........19 Change back to run mode............. 20 Uponor Base controller H/C pump X-80 10x 230V Operation manual... -
Page 3: Safety Instructions And Disclaimer
Keep them for future reference. technical, legal, commercial, or other reasons. The installer and operator agree to comply with following measures For any questions or queries, please visit the local Uponor website or regarding Uponor products: speak to your Uponor representative. - Page 4 While Uponor has made all effort to ensure that the document is accurate, the company does not guarantee or warrant the accuracy of the information. Uponor reserves the right to change the product portfolio and the related documentation without prior notification, in line with its policy of continuous improvement and development.
-
Page 5: System Description
2 System description CD0000611 Uponor Base controller H/C pump X-80 10x 230V (controller X-80) is Third-party thermostats one of the core components in radiant heating and cooling systems. It controls the heating/cooling sources, pumps, and actuators to adjust Warning! the indoor temperature in each room based on transmitted demand signals from the thermostats. -
Page 6: Components Of The Controller
Cable guides Thermostat connection terminals 1-10 Safety partition between the push buttons and the connection terminals LEDs for thermostat channels 1-10 (TH1-TH10) Push buttons for channel registration Holes for wall installation Uponor Base controller H/C pump X-80 10x 230V Operation manual... - Page 7 There is a label with a QR code in the lower left-hand corner of the transparent cover. It is a link to the product documentation on the website. Do not remove this label. Keep it for future reference to easily find the related documentation. Uponor Base controller H/C pump X-80 10x 230V Operation manual...
- Page 8 This wall prevents that the fingers accidently touch the connected cables during the assignment. The cables are under power supply during the assignment and can cause an electric shock if a cable is not correctly connected. Uponor Base controller H/C pump X-80 10x 230V Operation manual...
-
Page 9: Operation
There are two (2) clips on each side of the cover that locks the cover to the body. Uponor system power supply: 230 V AC, 50 Hz. Follow these steps to remove the transparent cover. -
Page 10: Controller Operation Principle
When at least one thermostat and actuator have been assigned, the controller starts in run mode by default. 3.4 Operating modes The controller X-80 can operate in three different modes. Each mode is described in a separate chapter. Chapter Operating mode... -
Page 11: Run Mode
When the heating mode function is activated and there is no demand signal from the thermostat to the controller, the actuator channel LEDs assigned to the thermostat are turned OFF. The actuators are closed. Uponor Base controller H/C pump X-80 10x 230V Operation manual... -
Page 12: Pump Management
When thermostats with day/night functions are connected to the controller X-80, the function can be used in the radiant heating/ cooling system. The controller sends a signal to those thermostats to switch between day and night mode. -
Page 13: Factory Reset
Follow these steps to factory reset the controller when it is in run mode. 10 sec CD0000600 Press and hold all 3 buttons for up to 10 seconds. CD0000601 All the thermostat and actuator assignments are deleted. Uponor Base controller H/C pump X-80 10x 230V Operation manual... -
Page 14: Assignment Mode
B – Assign another thermostat with related actuator 3-5 sec • This section gives the procedure to assign the actuator before the thermostat. SI0000559 Follow these steps to change from run mode to assignment mode. Uponor Base controller H/C pump X-80 10x 230V Operation manual... - Page 15 OPTION: If another actuator channel should be selected instead, push the actuator button (>) until the correct channel is pointed and its LED flashes red. SI0000588 Push the button "OK" to select the actuator. Uponor Base controller H/C pump X-80 10x 230V Operation manual...
-
Page 16: Check Assigned Channels
The LED in the first available thermostat channel starts to flash red. • To point to another thermostat channel instead, push the thermostat button (>) as many times as necessary to reach the desired thermostat. Uponor Base controller H/C pump X-80 10x 230V Operation manual... -
Page 17: Remove Assigned Channels
The power LED starts to flash green to show the change to assignment mode. • The assigned thermostat LEDs are solid red. • The assigned actuator LEDs are solid green. Uponor Base controller H/C pump X-80 10x 230V Operation manual... -
Page 18: Change Back To Run Mode
Check that no actuator is selected. Push and hold the button "OK" for 3-5 seconds. The power LED changes from flashing green to solid green to show that the controller is back in run mode. Uponor Base controller H/C pump X-80 10x 230V Operation manual... -
Page 19: Cooling Setup Mode
The assigned actuator channel LEDs are solid blue for When the enable/disable process is completed, change back to channels where cooling is enabled (default), and solid red run mode. for channels where cooling is disabled. Uponor Base controller H/C pump X-80 10x 230V Operation manual... -
Page 20: Change Back To Run Mode
Make sure that no thermostat is selected. Push and hold the button "OK" for 3-5 seconds. The power LED changes from fast-flashing green to solid green to show that the controller is back in run mode. Uponor Base controller H/C pump X-80 10x 230V Operation manual... -
Page 21: Maintenance
7 Maintenance 7.1 Manual preventive maintenance Note Use only a dry, soft cloth to clean the Uponor products. Do not use any cleanser. The controller requires no preventive maintenance. 7.2 Automatic preventive maintenance The controller is equipped with an automatic valve exercise function. -
Page 22: Troubleshooting
• An actuator does not close. This section describes general problems and alarms that can occur with the controller X-80 and describes possible solutions. – Speak to the installer. – Make sure that the actuator is correctly installed. - Page 23 OFF cycle for that actuator. – The actuator should open in less than 30 minutes if the demand signal continues. – If necessary, speak to the installer. The actuator can be defect. Uponor Base controller H/C pump X-80 10x 230V Operation manual...
-
Page 24: Technical Data
9 Technical data 9.1 Technical specifications Description Value Product name Uponor Base controller H/C pump X-80 10x 230V Dimension 365 x 90 x 56 mm Weight 730 g Purpose of control Automatic control Construction of control Electronic independently mounted control... -
Page 25: Dimensions
Regulatory conformance The wired Uponor Base controllers comply with the following 1) Refer to the related Uponor product for the specified certification directives. and compliance marks. • Additional product information and instructions are delivered with the Uponor product. They are available at the website www.uponor.com/ •... -
Page 26: Wiring Diagram
9.3 Wiring diagram WD0000057 Uponor Base controller H/C pump X-80 10x 230V Operation manual... - Page 27 Uponor Base controller H/C pump X-80 10x 230V Operation manual...
- Page 28 Uponor GmbH Industriestraße 56, D-97437 Hassfurt, Germany Uponor reserves the right to change the product portfolio and the 1137093 v2_10_2023_EN related documentation without prior notification, in line with its policy of www.uponor.com Production: Uponor/ELO continuous improvement and development.
