5.9 Connect circulation pumps to the
controller
CZ
The controller can control circulation pumps in up to 4
different zones.
DE

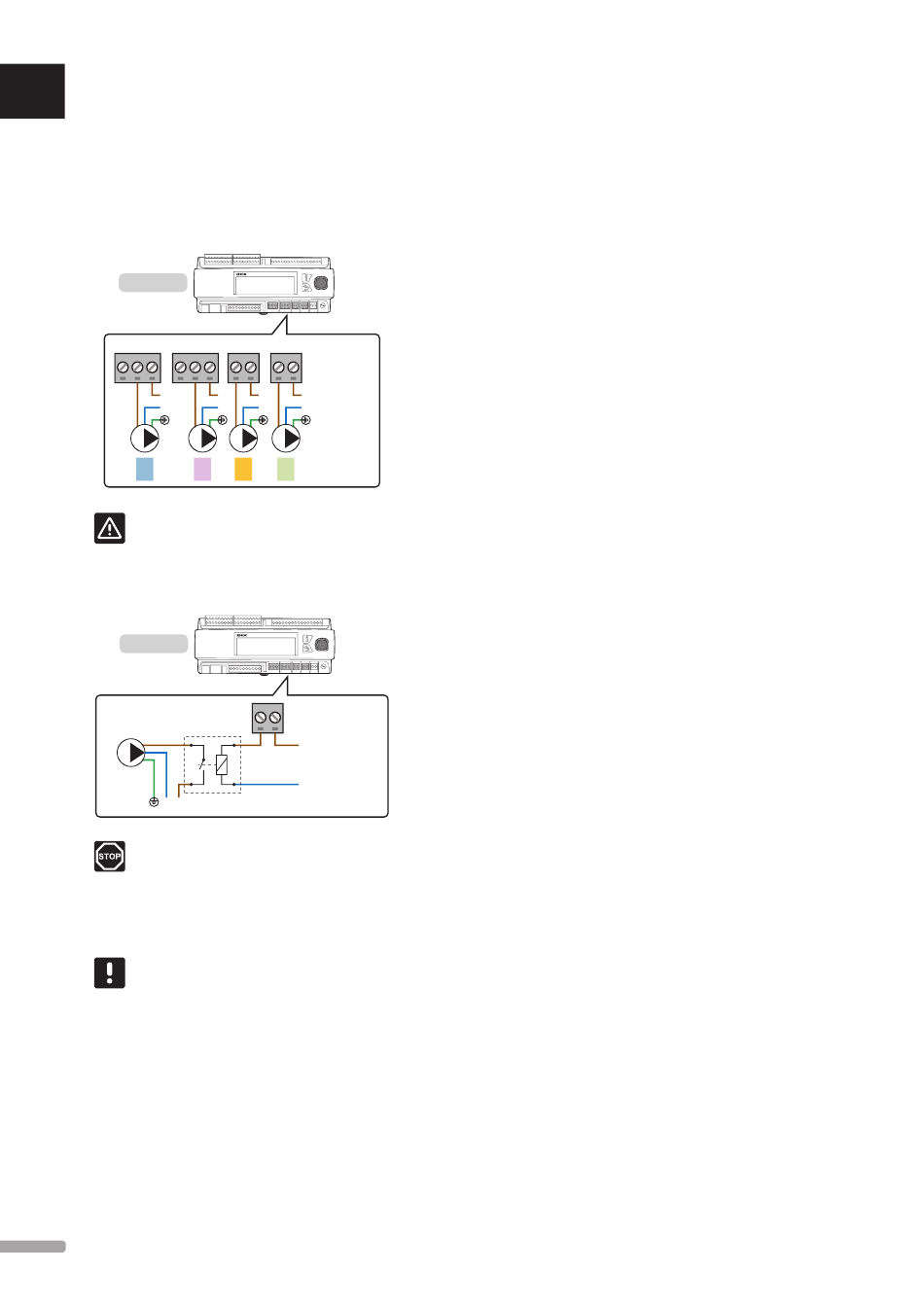

The illustration below shows circulation pumps
connected to the controller.
DK
X-159
EE
72 73 75
ES
L
N
FI
1 2
FR
C !
aution
The terminals are limited to 1 A. An external
HR
relay might be needed.
The illustration below shows circulation pump
HU
connected to the controller using external relays.
X-159
IT
LT
LV
N L
NL
W !
arning
Electrical installation and service behind
NO
secured 230 V AC covers must be carried
out under the supervision of a qualified
electrician.
PL
N O T E !
Only the control signals from the vavle
PT
acutators are connected to the Move PRO
controller. Power must be obtained from an
external source.
RO
RU
SE
SK
2 6
76 77 78 79 80
24 V AC
L L L
N N N
/
230V AC
3 4
L
24 V AC
/
230V AC
N
To connect circulation pumps to the controller:
1. Ensure that the power is disconnected from the
controller.
2. Remove the terminal cover.
See section 5.6 Terminal cover for more information.
3. Study the wiring diagram to locate the connection
terminal positions.
4. Connect power (max 230VAC) to the circulation
pumps/external relays via connection terminals on
the controller.
Caution! The terminals are limited to 1A. An
external relay might be needed.
ZONE 1:
• Power (L) from the circulation pump to terminal
72.
• External 24 or 230 VAC (L) to terminal 73.
ZONE 2:
• Power (L) from the circulation pump to terminal
75.
• External 24 or 230 VAC (L) to terminal 76.
ZONE 3:
• Power (L) from the circulation pump to terminal
77.
• External 24 or 230 VAC (L) to terminal 78.
ZONE 4:
• Power (L) from the circulation pump to terminal
79.
• External 230 VAC source (L) to terminal 80.
5. Connect the common wire (N) from the circulation
pumps to external connection.
6. Tighten the screws fixing the wires to the connector.
