Domestic Hot Water
CZ
DE
DK
EE
ES
If the zone is setup as Domestic Hot Water, hot
water production is enabled in the zone.
FI
C !
aution
The Domestic Hot Water function requires
a constant delivery of heating supply water,
FR
such as district heating.

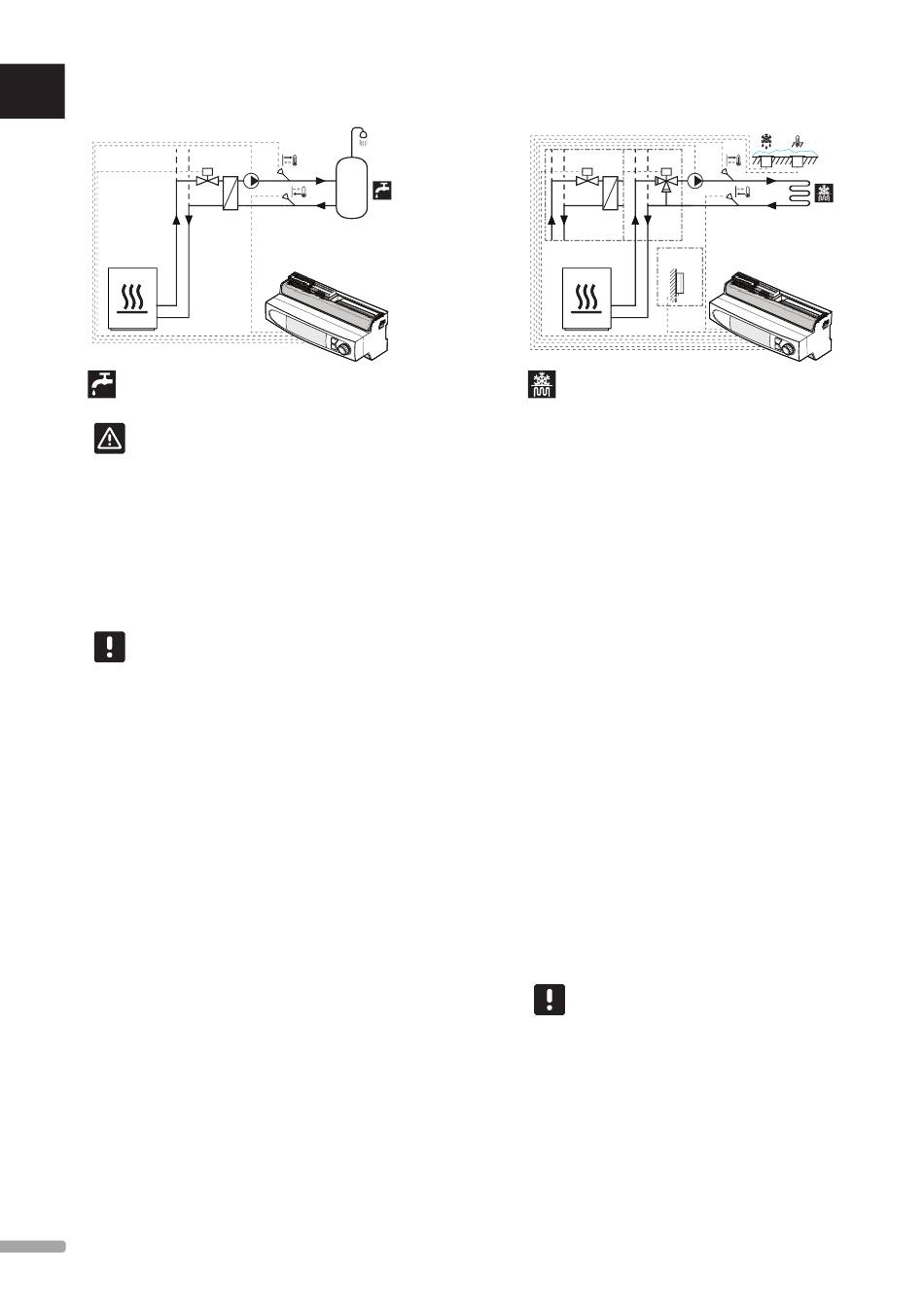

The following components are required for regulating
the hot water temperature in the zone (regulate the
HR
supply temperature using a mixing valve).
• Supply sensor S-152
HU
• Return sensor S-152
N O T E !
IT
If the zone is setup as Domesitc Hot Water
without a return sensor, the zone will work
with reduced functionality. Functions such
LT
as BoostPower and hot water recirculation
requires a return sensor to work properly.
See section 5 Install Uponor Smatrix Move PRO
LV
controller for more information.
SYSTEM SETTINGS IN STARTUP WIZARD
NL
Enable Zone 2: Yes
Zone setup: Domestic Hot Water
NO
Other zone settings can be found in the menu system
Settings > Zone # Setting (where # is the zone where
Domestic Hot Water is activated).
PL
See section 5.13 Startup wizard for more information.
See section 7.10 Settings for more information.
PT
RO
RU
SE
SK
1 4
Meltaway
If the zone is setup as Meltaway, hot water
production for snow melting (keeping large areas
clear of snow) is enabled in the zone.
The following components are required for snow
melting hot water production in the zone (regulate the
supply temperature using a mixing valve).
Required:
• Supply sensor S-152
• Return sensor S-152
• Primary return sensor S-152 (not shown in
illustration)
• Snow sensor S-158 used as ground temperature
sensor
• Snow sensor S-158 used as ground moisture sensor
The outdoor temperature sensor is not needed if the
Move PRO controller is integrated with an Uponor
Smatrix Base PRO system (with outdoor temperature
sensor).
See section 5 Install Uponor Smatrix Move PRO
controller for more information.
SYSTEM SETTINGS IN STARTUP WIZARD
Enable Zone # (# = 3 or 4): Yes
Zone setup: Meltaway
Other zone settings can be found in the menu system
Settings > Zone # Setting (where # is the zone where
Melt away is activated).
N O T E !
When using a 3-way mixing valve (option B)
a heat exchanger may be needed, creating
a secondary loop where water mixed with
antifreeze additives circulate.
See section 5.13 Startup wizard for more information.
See section 7.10 Settings for more information.
