7

Operate the Uponor Smatrix Move PRO controller

7.1

Principle of operation

The controller calculates the supply temperature for
up to 4 different zones using a wide array of sensors.
The calculated supply temperature is compared to
the measured supply temperature. If the measured
temperature differs from the calculated, the controller
adjusts the mixing valve to raise or lower the supply
temperature in the zone.
The optional room temperature sensor is placed in
a reference area and enables an indoor temperature
setpoint parameter. It is used to keep fluctuations in the
indoor temperature close to a minimum and as close as
possible to the indoor temperature setpoint.
7.2

Controller layout

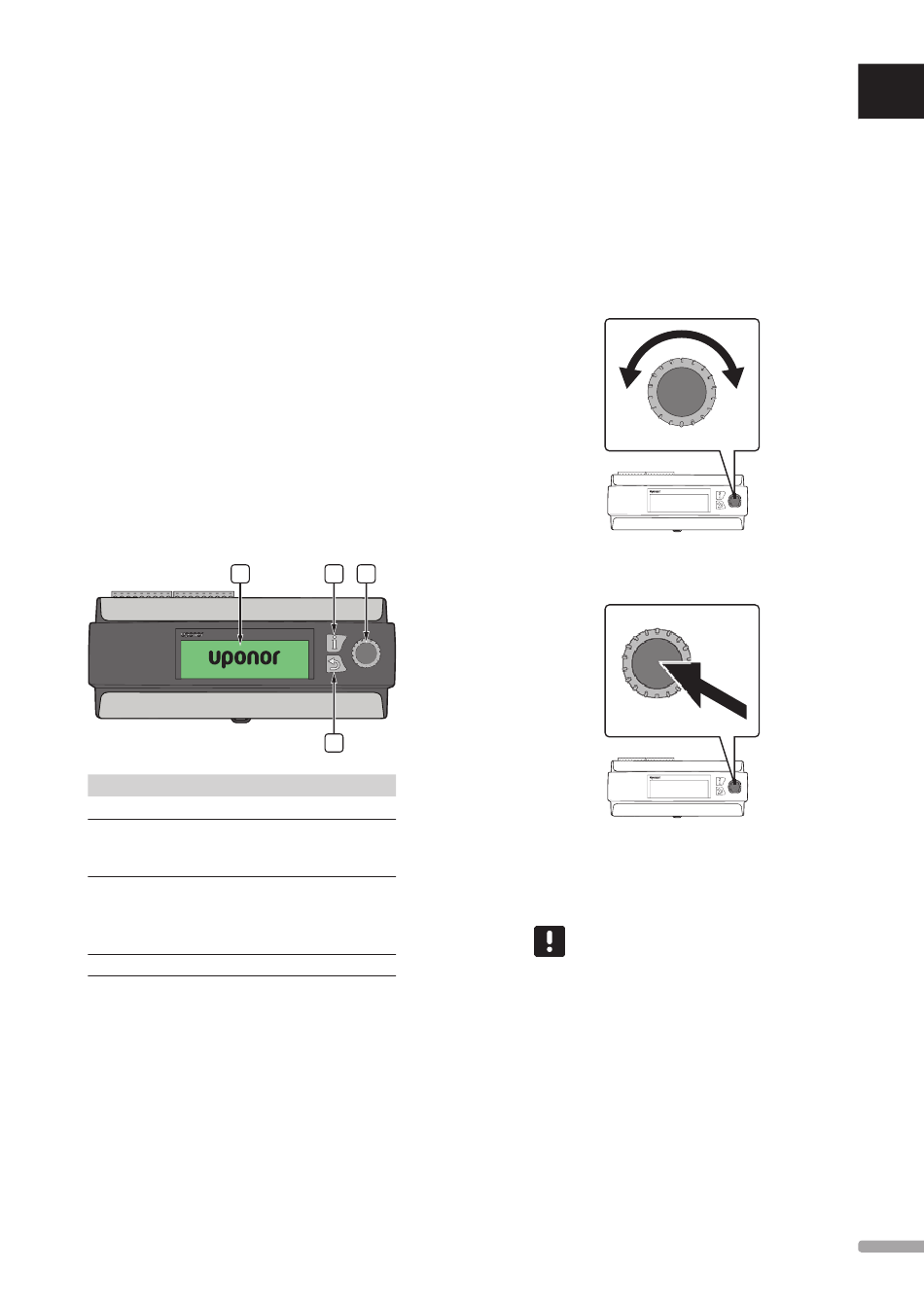

The illustration below shows parts of the controller.
A
Item Description
A Display
B Navigation wheel/ OK button
Used for navigating the menu system, selecting
options and confirming selections.
C Information button
Used for showing current zone information such
as supply temperature, pump status etc.
Push the button repeatedly to switch zones.
D Back button
U P O N O R S M AT R I X M O V E P R O · I N S TA L L AT I O N A N D O P E R AT I O N M A N U A L
C B
D
7.3

Navigating the menu system

s /
eleCt CHange
Turn the control wheel to select an option, or to change
a parameter setting.
C
onfirm
Press the control wheel to confirm a selection or
parameter setting.
7.4

Start up

When starting up, the controller shows the Uponor logo
before entering the main menu.
N O T E !
The display on the controller may start
flashing when powered on. This only occurs
after a firmware update and regular operation
will continue shortly after.
