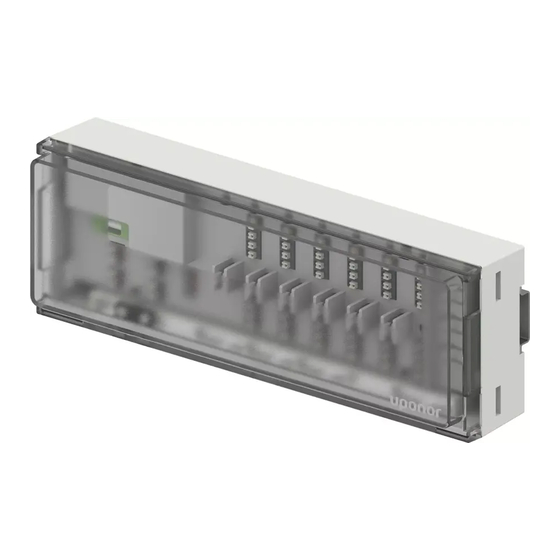

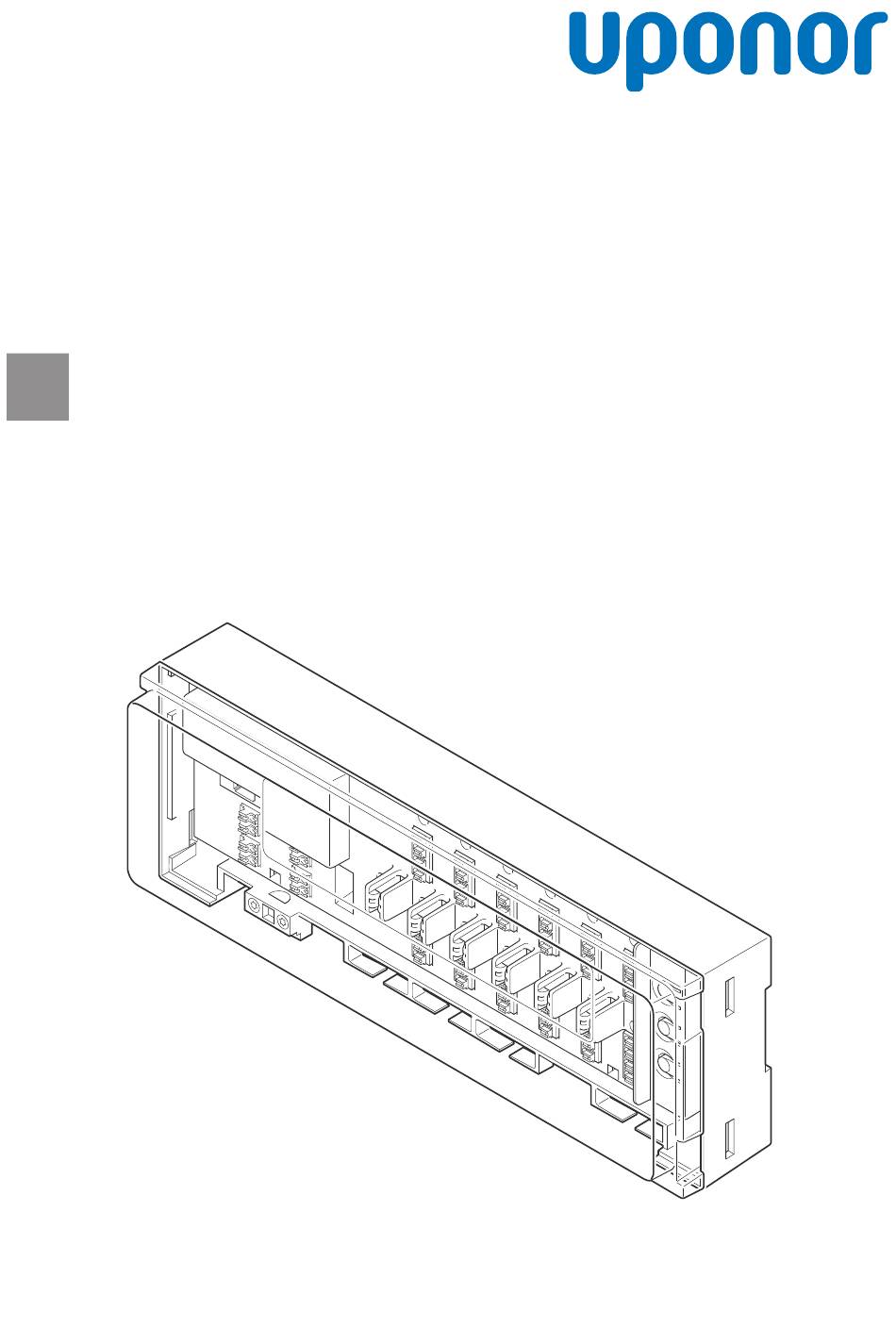

- Page 1 Uponor Base controller H pump X-60 6x 230V Operation manual CD0000608...
-
Page 2: Table Of Contents
Remove assigned channels..........16 Change back to run mode............. 16 Maintenance................ 17 Manual preventive maintenance........... 17 Automatic preventive maintenance........17 Corrective maintenance............17 Troubleshooting..............18 General................. 18 Troubleshooting after installation.......... 18 Uponor Base controller H pump X-60 6x 230V Operation manual... -
Page 3: Safety Instructions And Disclaimer
Keep them for future reference. technical, legal, commercial, or other reasons. The installer and operator agree to comply with following measures For any questions or queries, please visit the local Uponor website or regarding Uponor products: speak to your Uponor representative. - Page 4 While Uponor has made all effort to ensure that the document is accurate, the company does not guarantee or warrant the accuracy of the information. Uponor reserves the right to change the product portfolio and the related documentation without prior notification, in line with its policy of continuous improvement and development.
-
Page 5: System Description
2 System description CD0000605 Uponor Base controller H pump X-60 6x 230V (controller X-60) is one Third-party thermostats of the core components in radiant heating systems. It controls the heating source, pump, and actuators to adjust the indoor temperature Warning! in each room based on transmitted demand signals from the thermostats. -
Page 6: Components Of The Controller
Power input 230 V AC Safety partition between the push buttons and the connection terminals Strain relief for the 230 V power cable Optional output for pump management (ON/OFF switch) Uponor Base controller H pump X-60 6x 230V Operation manual... - Page 7 It is a link to the product documentation on the They are used for assignment, and for factory reset. website. Do not remove this label. Keep it for future reference to easily find the related documentation. Uponor Base controller H pump X-60 6x 230V Operation manual...
- Page 8 This wall prevents that the fingers accidently touch the connected cables during the assignment. The cables are under power supply during the assignment and can cause an electric shock if a cable is not correctly connected. Uponor Base controller H pump X-60 6x 230V Operation manual...
-
Page 9: Operation
There are two (2) clips on each side of the cover that locks the cover to the body. Uponor system power supply: 230 V AC, 50 Hz. Follow these steps to remove the transparent cover. -
Page 10: Start The Controller
When at least one thermostat and actuator have been assigned, the controller starts in run mode by default. 3.4 Operating modes The controller X-60 can operate in two different modes. Each mode is described in a separate chapter. Chapter Operating mode... -
Page 11: Run Mode
This valve exercise does not create any demand signal. Hence the pump is not activated during the exercise. The actuator LED will not turn ON as there is no demand. DI0000016 Uponor Base controller H pump X-60 6x 230V Operation manual... -
Page 12: Day/Night Switch
4.7 Day/night switch When thermostats with day/night functions are connected to the controller X-60, the function can be used in the underfloor heating system. The controller sends a signal to those thermostats to switch between day and night mode. 4.8 Factory reset... -
Page 13: Assignment Mode
B – Assign another thermostat with related actuator 3-5 sec • This section gives the procedure to assign the actuator before the thermostat. CD0000590 Follow these steps to change from run mode to assignment mode. Uponor Base controller H pump X-60 6x 230V Operation manual... - Page 14 (>) until the correct B – Assign another thermostat with channel is pointed and its LED flashes red. related actuator SI0000569 Push the button "OK" to select the actuator. SI0000562 Uponor Base controller H pump X-60 6x 230V Operation manual...
-
Page 15: Check Assigned Channels
Push the button "OK" once to confirm the selection. solid green. • Only the selected thermostat with its assigned actuators is visible. The assignment between the selected thermostat and the related actuator channels is completed. Uponor Base controller H pump X-60 6x 230V Operation manual... -
Page 16: Remove Assigned Channels
The power LED changes from flashing green to solid green to • The LED in the first available thermostat channel starts to show that the controller is back in run mode. flash red. Uponor Base controller H pump X-60 6x 230V Operation manual... -
Page 17: Maintenance
6 Maintenance 6.1 Manual preventive maintenance Note Use only a dry, soft cloth to clean the Uponor products. Do not use any cleanser. The controller requires no preventive maintenance. 6.2 Automatic preventive maintenance The controller is equipped with an automatic valve exercise function. -
Page 18: Troubleshooting
This section describes general problems and alarms that can occur – Make sure that the actuator is correctly installed. with the controller X-60 and describes possible solutions. – Replace the actuator. A common cause can be incorrectly installed pipe loops in the system or mixed up thermostats. - Page 19 OFF cycle for that actuator. – The actuator should open in less than 30 minutes if the demand signal continues. – If necessary, speak to the installer. The actuator can be defect. Uponor Base controller H pump X-60 6x 230V Operation manual...
- Page 20 -- Part 2-9: Particular requirements for temperature sensing controls Regulatory conformance The wired Uponor Base controllers comply with the following 1) Refer to the related Uponor product for the specified certification directives. and compliance marks. • Additional product information and instructions are delivered with the Uponor product.
- Page 21 8.2 Dimensions [mm] RELAY (PUMP) 230V 5A max ZD0000086 [mm] 254,3 81,4 71,6 CD0000604 8.3 Wiring diagram RELAY (PUMP) 230V 5A max WD0000056 Uponor Base controller H pump X-60 6x 230V Operation manual...
- Page 22 Uponor Base controller H pump X-60 6x 230V Operation manual...
- Page 23 Uponor Base controller H pump X-60 6x 230V Operation manual...
- Page 24 Uponor GmbH Industriestraße 56, D-97437 Hassfurt, Germany Uponor reserves the right to change the product portfolio and the 1139822 v2_10_2023_EN related documentation without prior notification, in line with its policy of www.uponor.com Production: Uponor/ELO continuous improvement and development.
