PIPER COMANCHE SERVICE MANUAL
COMPONENT LUBRICANT
FREQUENCY
1. STEERING ROD END BEARINGS. STEERING
BELLCRANK PIVOT BEARINGS. STEERING ARM
BUSHING. GEAR ALIGNING BUSHING MIL-L-7B70
100 HRS
2, NOSE GEAR PUSH-PULL ROD END BEARING
MIL·L-7870
100 HRS
3. STRUT HOUSING ATIACHMENTBUSHING. DRAY LINK
PIVOT AND ATIACHMENT BUSHING MIL·G·23827
100 HRS
4, SHIMMY DAMPENER ROD END BEARING AND MOUNT
MIL·L·7B70 100 HRS
5
UPPER AND LOWER TORQUE LINK CONNECTING BOLT MIL-L-7B70
100 HRS
6, WHEEL BEARING 12"
M1L·G·3545 100 HRS
7, UPPER AND LOWER TORQUE LINK BUSHING MIL·G·23827
100 HRS
8, NOSE GEAR, DOOR HINGES MIL·L·7870 100 HRS,
9, GEAR OLEO STRUT FILLER (31- MIL-H-5606
AS REQUIRED
10
NOSE GEAR DOOR HINGE. DOOR ACTUATING
MECHANISM MIL-L·7870 100 HRS
-REFER TO SPECIAL INSTRUCTIONS ON TABLE II·VIII.
•
6
10
1
'~~"f
.
~---;\
.
~"
~~
-
6
7-----~1J.o...
3197
PA-24-260
PA.. 24..180 & PA·24-250
SKETCH 0

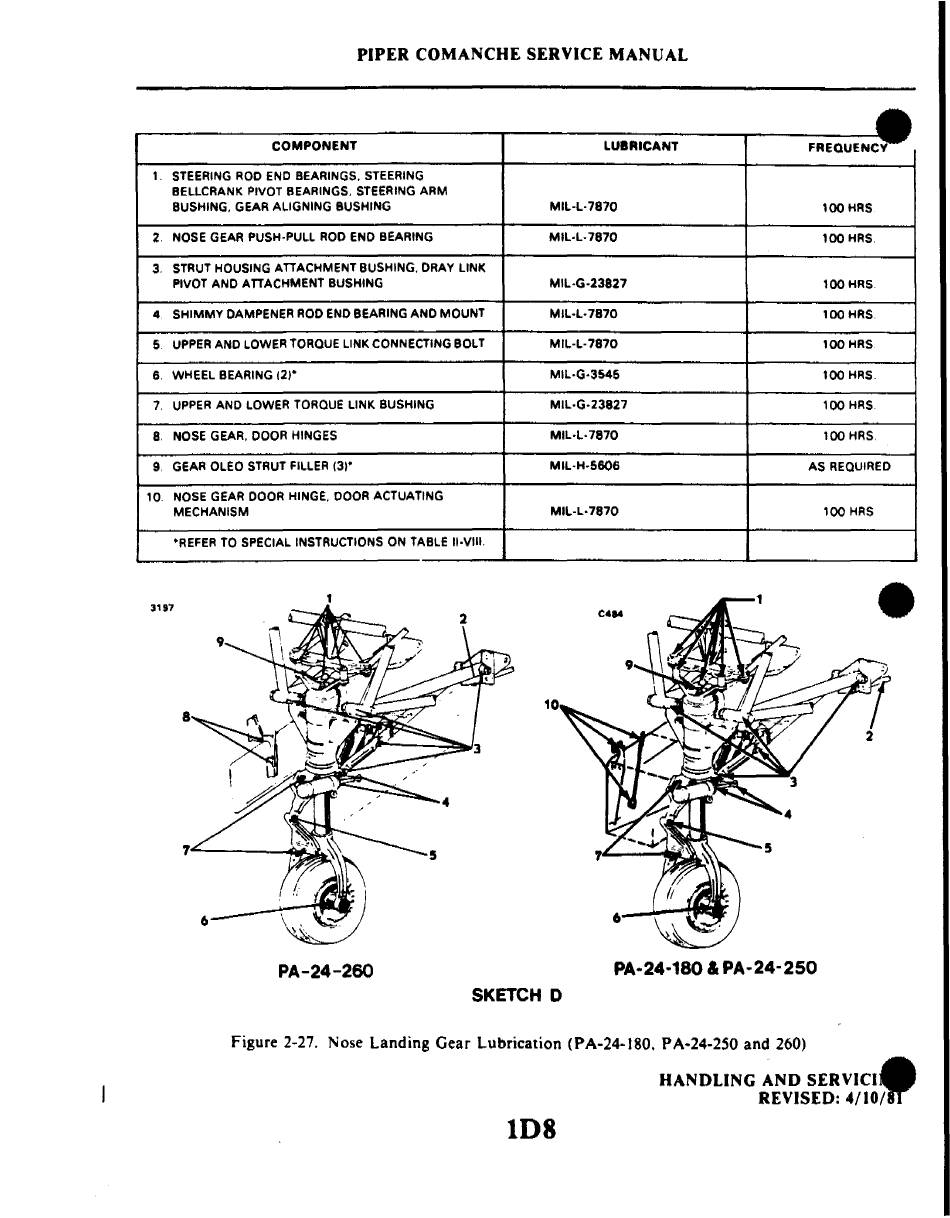

Figure 2-27. Nose Landing Gear LUbrication (PA-24·180. PA..24-2S0 and 260)
