PIPER COMANCHE SERVICE MANUAL
-
.~.~
_.
-
...
'e
DUAL SPRING INSTl.
PIPER KIT 761 082
18. UPPER DRAG LINK. RIGHT
19. SPACER WASHERS
20. BOLT ASSEMBLY
28. UPPER DRAG LINK, LEFT
29. DOWN LIMIT SWITCH. LATE
30. CROSS BRACE. DRAG LINK
32. PIVOT BOLT. DRAG LINK
33. DOWN LOCK SPRINGS
34. LOWER DRAG LINK. LEFT
35. LOWER DRAG LINK. RIGHT
43. DOWN LIMIT SWITCH. EARLY
44. REINFORCEMENT PLATE
PA·24 81 PA·24-250 SERIAL NOS
24-1 TO 24-922 INCL & 24·924 TO
24·3225 INCL.
._
_
_,
-.
EARLY
0.187+.062-.00
LATE
O. 187+.062 -; 00
SKETCH A
AHD

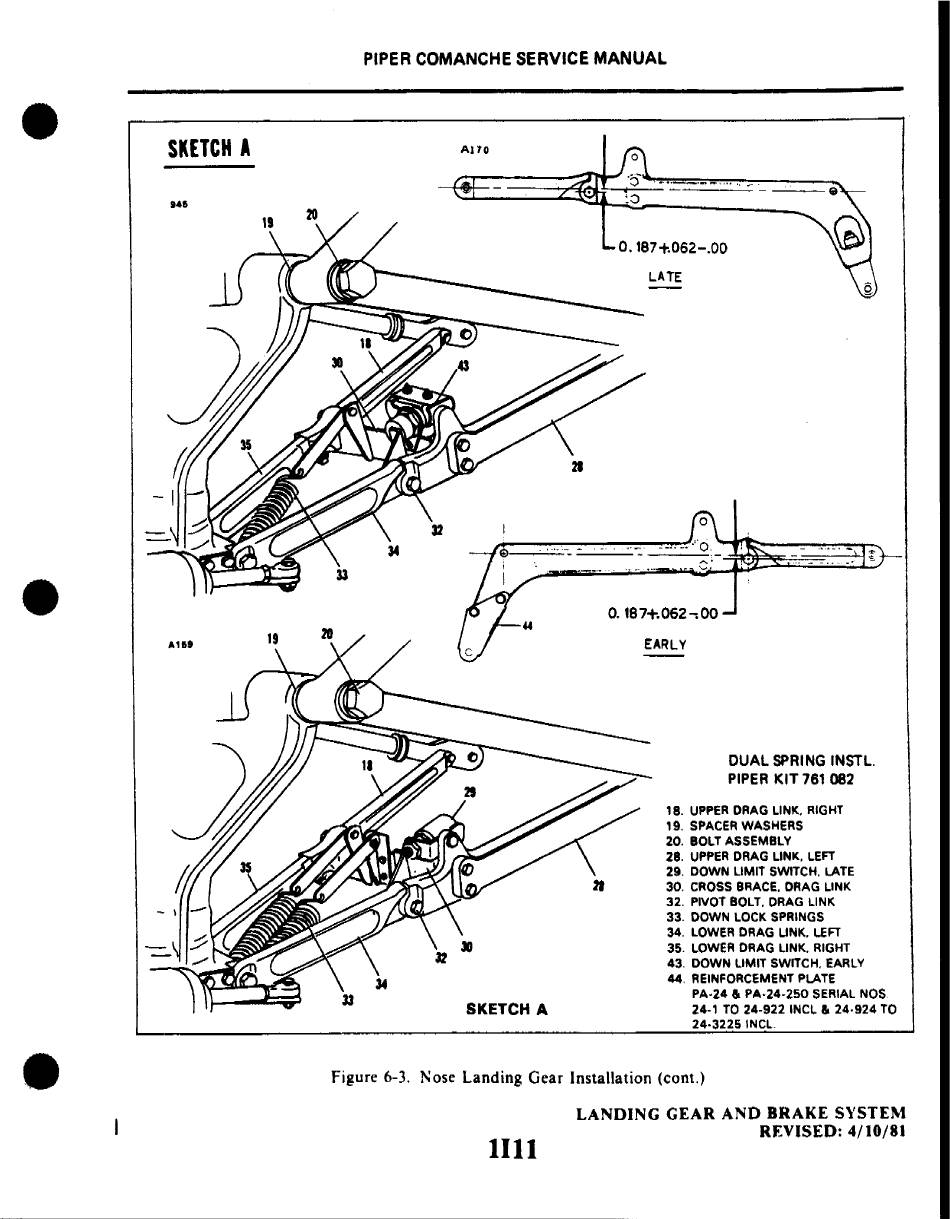

Figure 6-3. Nose Landing Gear Installation (cont.)
SKETCH A
..,n
•
•
•
1111
LANDING GEAR AND BRAKE SYSTEM
REViSED: 4/10/81
