Piper PA-24 Comanche Service Manual page 142

PIPER COMANCHE SERVICE MANUAL
.201
12
SKETCH C
.201
.082 MIN.
SKETCH 0
3. SQUARE TUBE SHAFT
4. BRACKET. LEFT
8. BRACKET. RIGHT
12. BOLT NUT ASSEMBLY
14. ROLLER ASSEMBLY
15. ROLLER
26 SPROCKET, RIGHT
27. SPROCKET. LEFT
28. BUSHING
29. STOP
30. STOP PIN
31. NUT AND WASHER
36. SPROCKET AXLE
37 ECCENTRIC BUSHING
38. WASHER
39 STUD - PN23394
A200
)1
15
SKETCH B
12
I
•

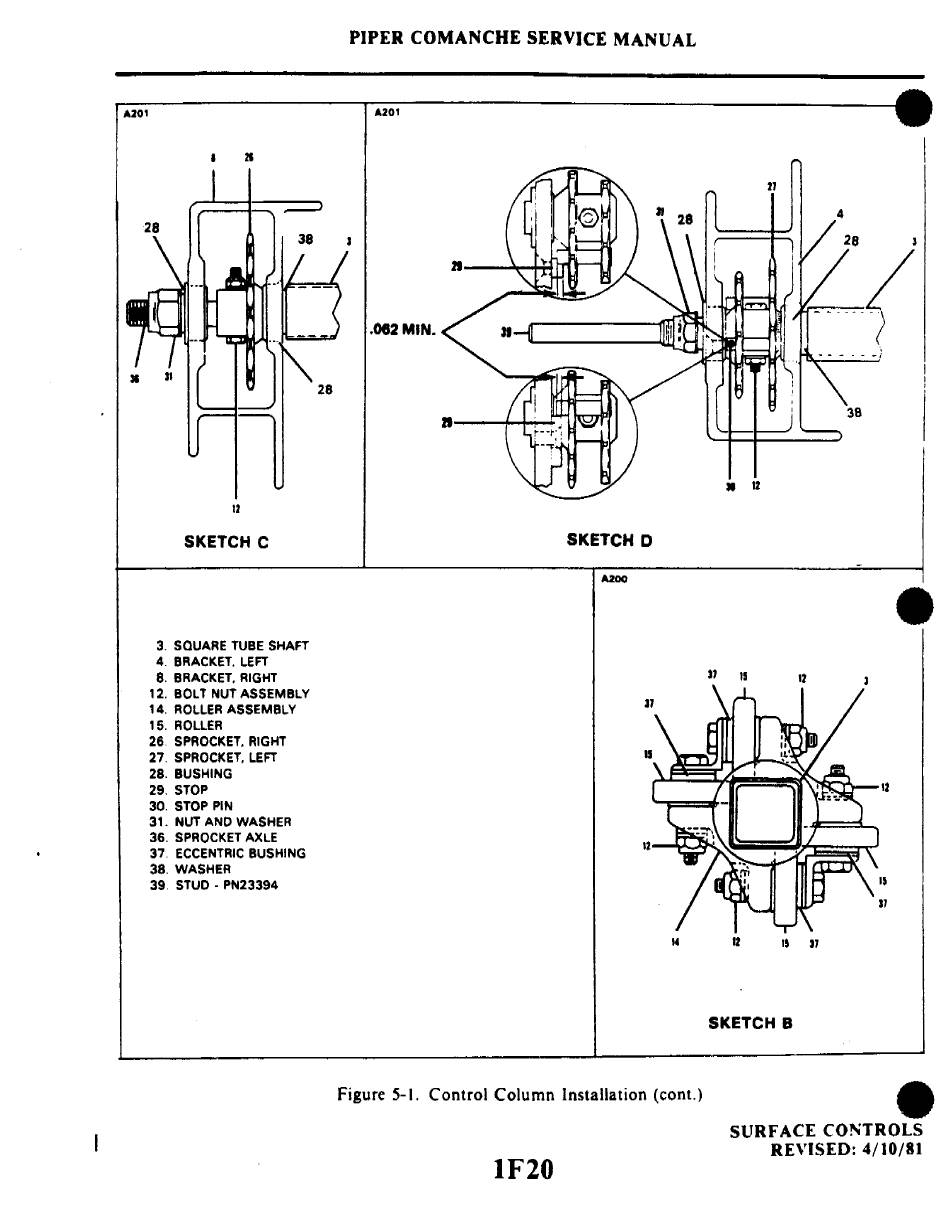

Figure 5-1. Control Column Installation (cont.) •
SURFACE CONTROLS
REVISED: 4/10/81
IF20
