PIPER COMANCHE SERVICE MANUAL
2113
5
,.....-.v.
11III ...._ _ . . .
IIUD01I1 •A1U'"
INTIIIClDfMCT
~
1. BELL.CRANK, LEFT
2. PULLEY
S.
CONTROLCABLE,LEFT
•. BALANCE CABLE
5. BELLCRANK, RIGHT
I. CONTROL CABLE, RIGHT
7. STRAP "ITTING
•• BOLT ASSEMBLY
t.
LOCKNUT
10. ADJUSTMENT BOLT
11. STOP BLOCK
12. END BEARING, CONTROL ROD
U. CONTROL ROD
U.
PIVOT BOLT ASSEM8LY
15. ROD, CABLE GUARD
U.
SWAOGED 8ALL "ITTINO
17. TURNBUCKLE
11. sPRING
11. INTERCONNECT SPRING
A830
4
8
9 10
1 11
3
12
13
SKETCH A

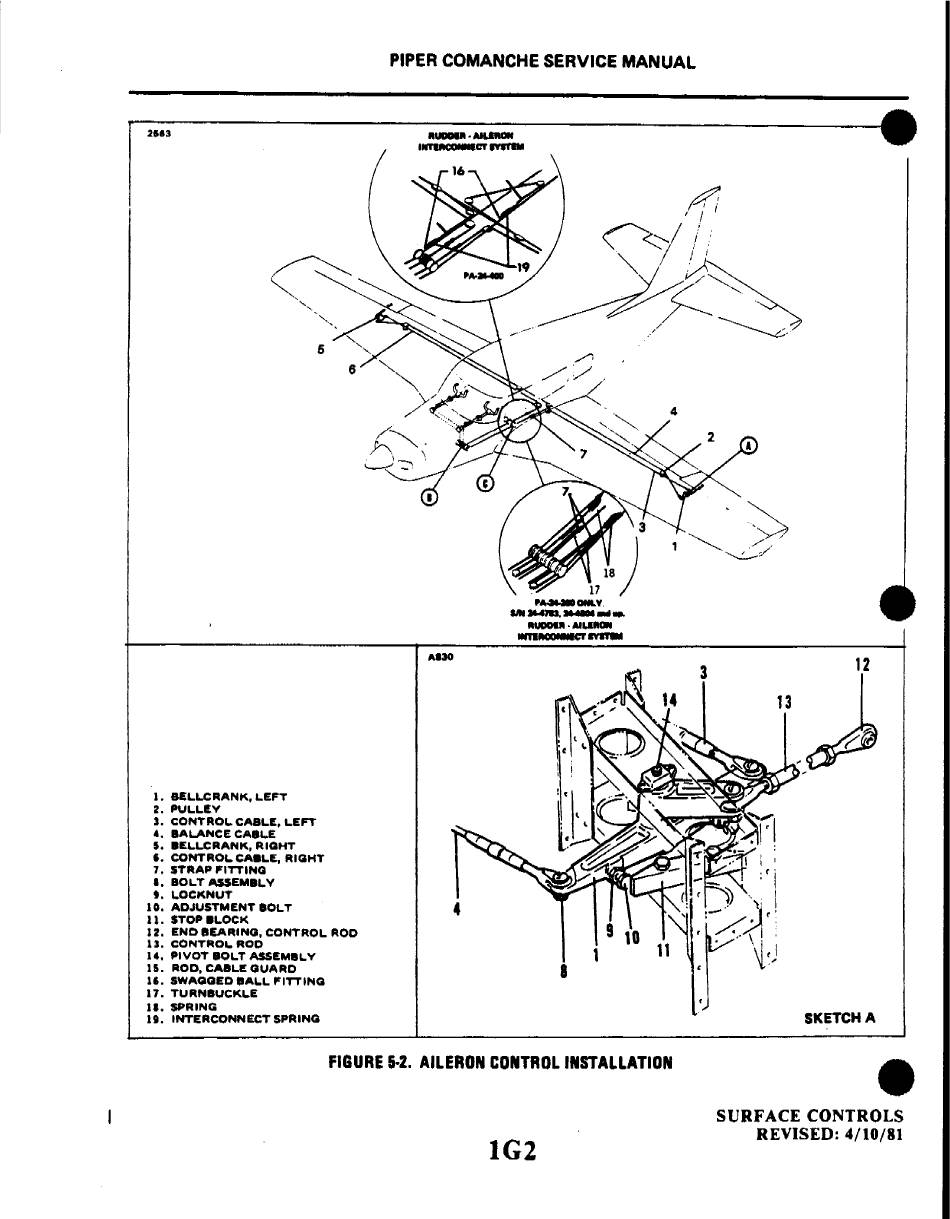

FIGURE 5-2. AILERON CONTROL INSTALLATION
IG2
•
SURFACE CONTROLS
REVISED: 4/10/81
