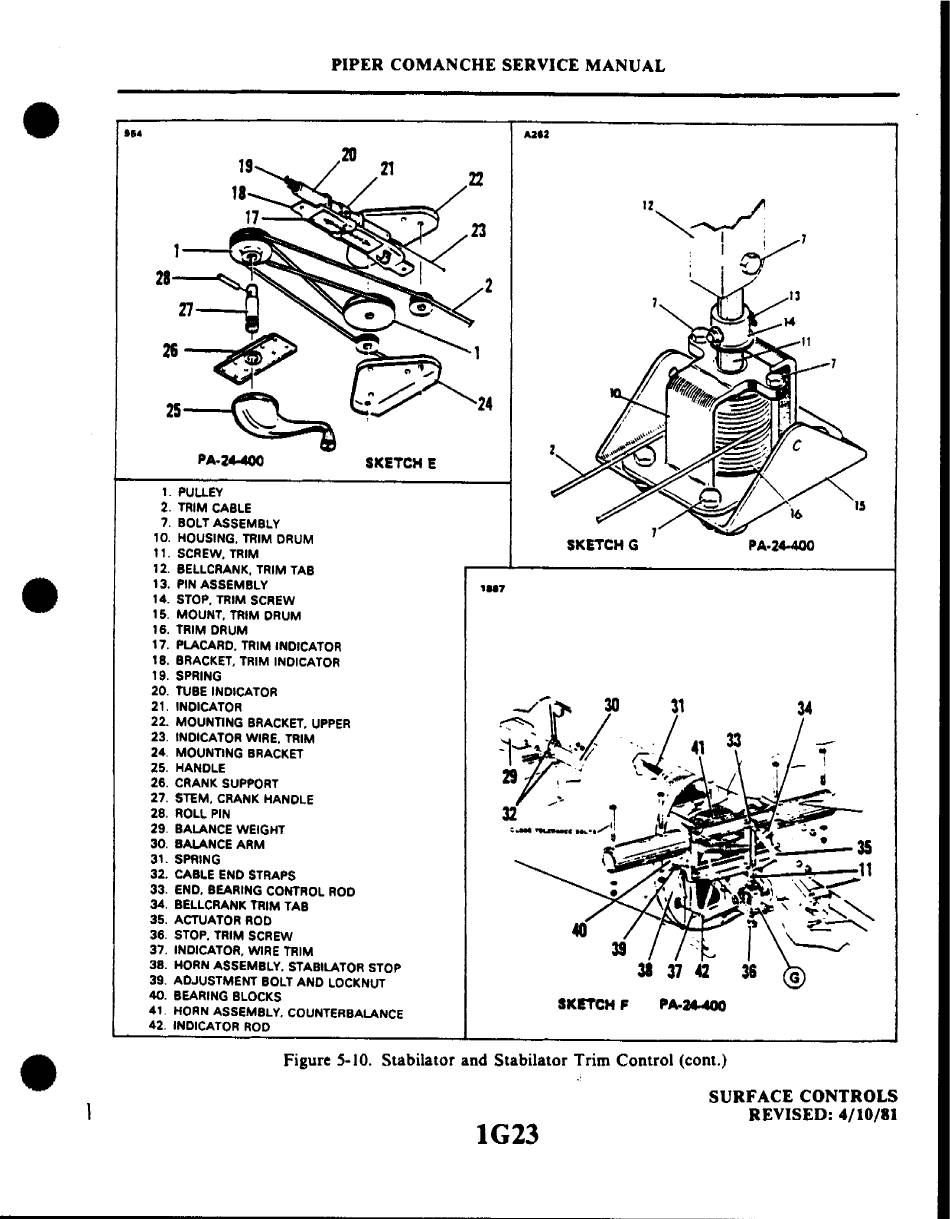

Figure 5-10. Stabilator and Stabilator Trim Control (cont.)
SURFACE CONTROLS
REVISED: 4/10/11
•
•
25--
,_ PULLEY
2. TRIM CABLE
7. BOLT ASSEMBLY
10. HOUSING, TRIM DRUM
11. SCREW, TRIM
12. BELLCRANK, TRIM TAB
13. PIN ASSEMBLY
14. STOP, TRIM SCREW
15. MOUNT, TRIM DRUM
16. TRIM DRUM
17. PLACARD. TRIM INDICATOR
18. BRACKET, TRIM INDICATOR
19. SPRING
20. TUBE INDICATOR
21. INDICATOR
22. MOUNnNG BRACKET. UPPER
23. INDICATOR WIRE. TRIM
24. MOUNnNG BRACKET
25. HANDLE
26. CRANK SUPPORT
27. STEM, CRANK HANDLE
28. ROLL PIN
29. BALANCE WEIGHT
30. BALANCE ARM
31. SPRING
32. CABLE END STRAPS
33. END, BEARING CONTROL ROD
34. BELLCRANK TRIM TAB
35. ACTUATOR ROD
36. STOP. TRIM SCREW
37. INDICATOR, WIRE TRIM
38. HORN ASSEMBLY. STABILATOR STOP
39. ADJUSTMENT BOLT AND LOCKNUT
40. BEARING BLOCKS
41_ HORN ASSEMBLY. COUNTERBALANCE
42_ INDICATOR ROD
2
' ••7
SKETCH G PA·24-400
34
31 37 42
SKETCH F PA-24-4QO
IG23
