PIPER COMANCHE SERVICE MANUAL
t
TORQUE LINK. LOWER
2. SPACER WASHER
3 BOLT ASSEMBLY
4.
TORQUE LINK, UPPER
5.
BOLT ASSEMBLY
6. SAFETY WIRE
7.
CAP BOLT
8.
AIR VALVE
9. STEERING BUSHING ASSEMBLY
10 OLEO STRUT HOUSING
11. BOLT ASSEMBLY
12 MOUNTING BRACKET ASSEMBLY
13.
SHIMMY DAMPENER
14. PISTON TUBE
15. BOLT ASSEMBLY
16. BOLT ASSEMBLY
17. FORK ASSEMBLY

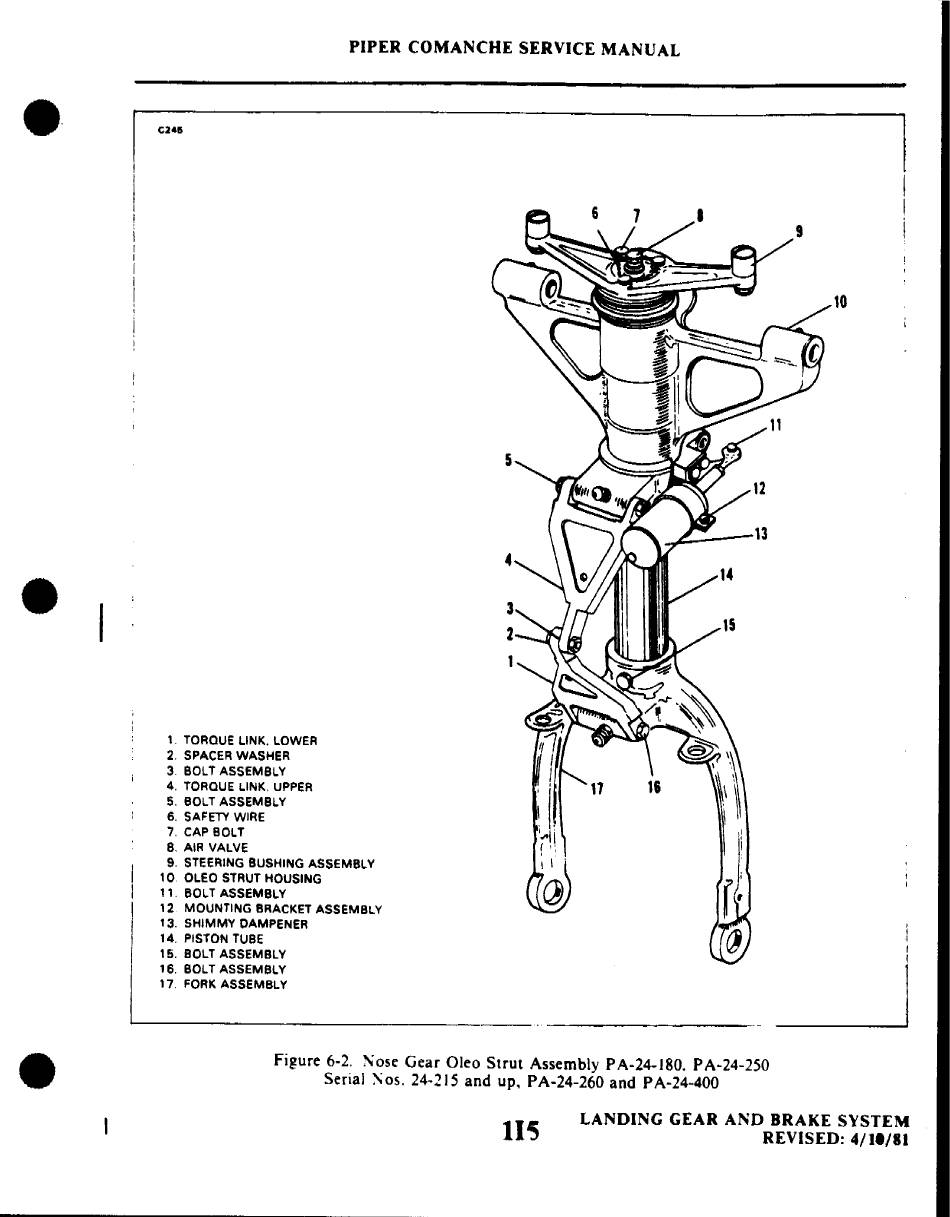

Figure 6-2. N05e Gear Oleo Strut Assembly P A-24-180. PA-24-250
Serial :\05.24-215 and up. PA-24-260 and PA-24-400
10
lI~
LANDING GEAR AND BRAKE SYSTEM
REVISED: 4/1./81
