PIPER COMANCHE SERVICE MANUAL
SKETCH C

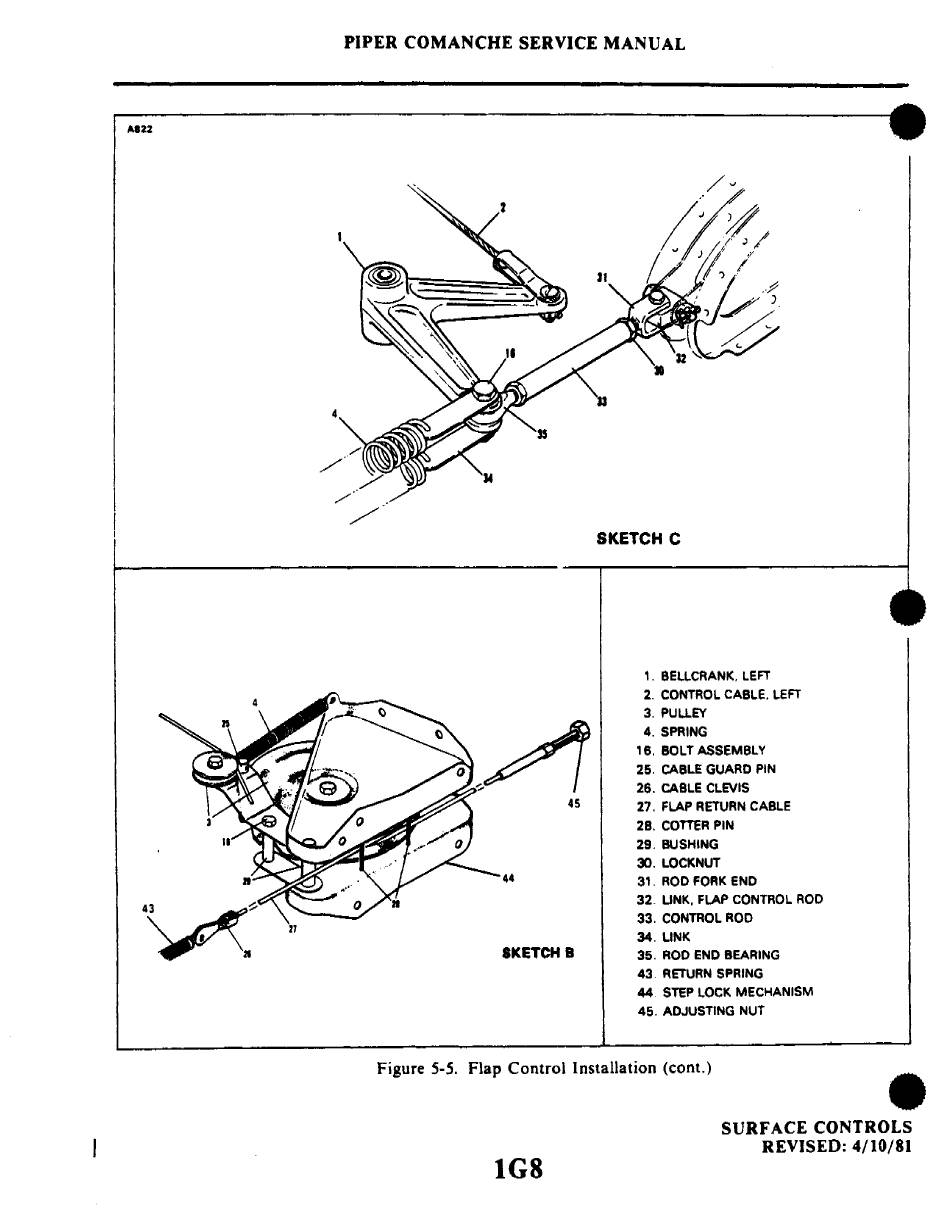

Figure 5-5. Flap Control Installation (cont.)
2J
45
44
SKETCH B
1. BELLCRANK, LEFT
2. CONTROL CABLE, LEFT
3. PUllEY
4, SPRING
16, BOLT ASSEMBLY
25. CABLE GUARD PIN
26, CABLE CLEVIS
27.
FLAP RETURN CABLE
2B. COTTER PIN
29. BUSHING
30. LOCKNUT
31. ROD FORK END
32. LINK, FLAP CONTROL ROD
33.
CONTROL ROD
34. LINK
35. ROD END BEARING
43. RETURN SPRING
44 STEP LOCK MECHANISM
45. ADJUSTING NUT
•
SURFACE CONTROLS
REVISED: 4/10/81
IG8
